Orthman 1tRIPr - Mount and Parallel Linkage Assembly

Made in the U.S.A.

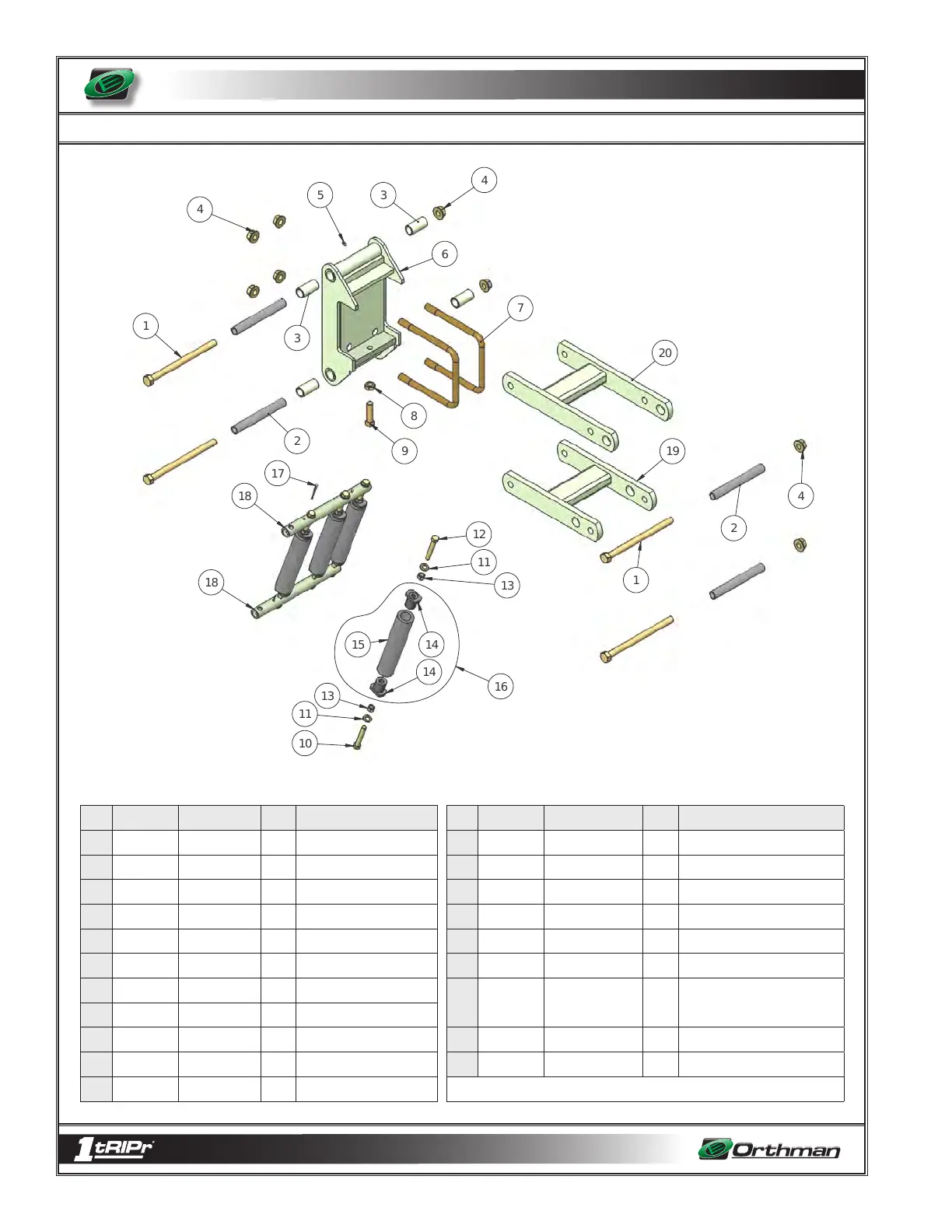

PARTS IDENTIFICATION
1
3
4
2
9
8
7
3
4
5
6
20
19
1
2
418
18
17
12
11
13
13
11
10
14
14
15
16
MOUNT AND PARALLEL LINKAGE ASSEMBLY
Key Part # Description Qty. Notes Key Part # Description Qty. Notes
1 100-176 Bolt 4 3/4” x 10 1/2”, Grade 8 12 100-288 Bolt 4 1/2” x 3 1/2” Full thread,
2 385-140 Bushing 4 1”OD x 3/4”ID x 8” 13 102-007 Nut 8 1/2”
3 134-067 Bushing 8 1” x 1 1/4” x 2 1/2”, Split 14 340-029 Spring plug 8 ---
4 102-121 Lock nut 9 3/4” Serrated ange 15 317-925 Spring 4 2”OD x 10” spring
5 110-001 Grease tting 3 1/4”-28, straight 16 311-401 Spring assembly 4 Includes items #14 & 15
6 314-026 Mount 1 Includes items #3 & 5 17 104-030 Cotter pin 4 3/16” x 2”
7 315-031 U-bolt 2 3/4”, For 7” x 7” bar
18
387-310
385-310
Trunion tube
Trunion tube
2
2
Upper & Lower (13 3/8 long)
Upper & Lower (14 7/8 long)
8 102-018 Jam nut 1 3/4”
9 106-130 Set screw 1 3/4” x 2 1/2”, Square head 19 385-095 Parallel linkage 1 Lower
10 100-124 Bolt 4 1/2” x 3 1/4”, Grade 5 20 385-093 Parallel linkage 1 Upper
11 108-001 Flat washer 8 1/2” SAE
7 - 3
