Orthman 1tRIPr - Rolling Basket Assembly

Made in the U.S.A.

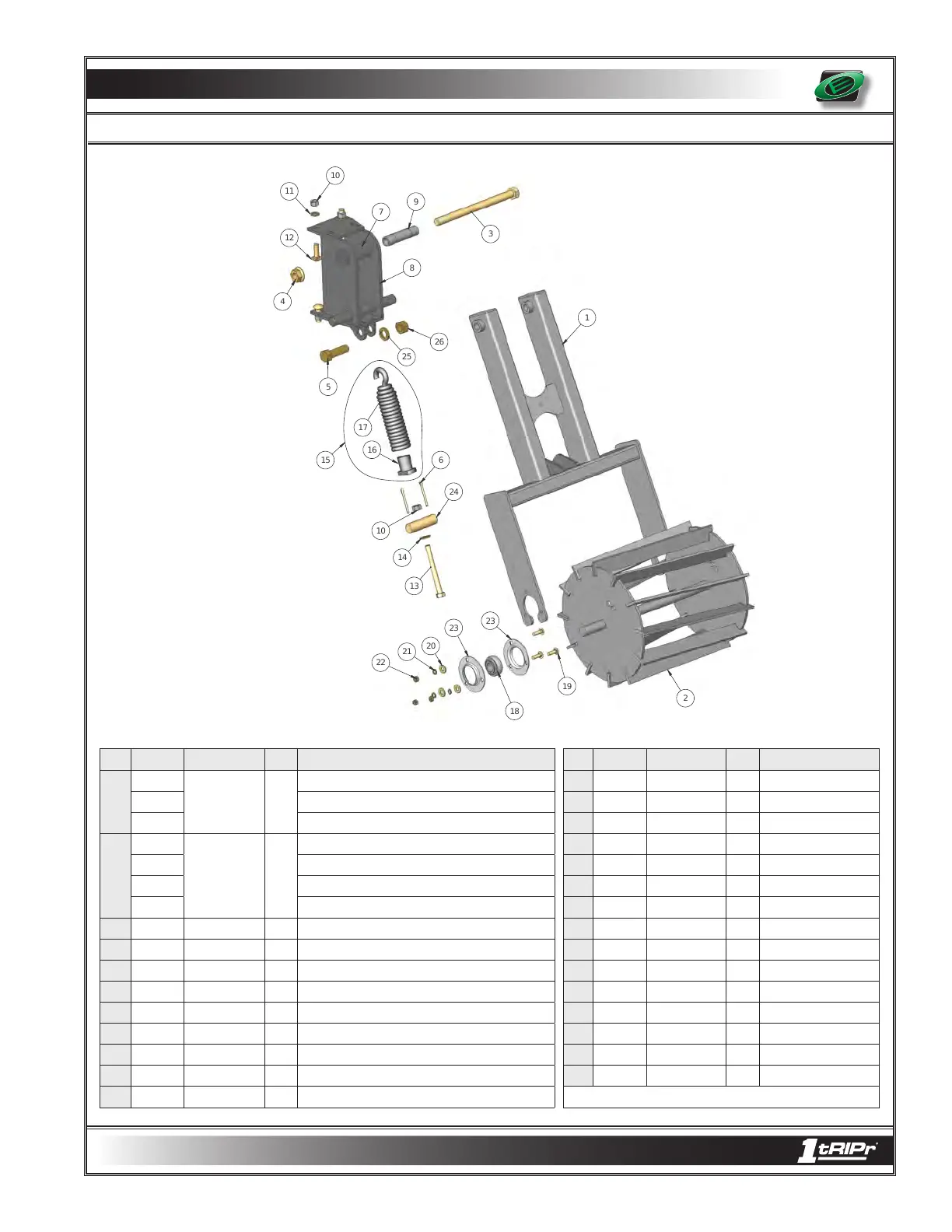

PARTS IDENTIFICATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
10
19
20
21
22
23
23
24
25
26
ROLLING BASKET ASSEMBLY
Key Part # Description Qty. Notes Key Part # Description Qty. Notes
1
327-201
Basket Frame 1
Standard frame for 14” W basket 12 100-058 Carriage bolt 4 1/2” x 1 1/2”, Grade 5
327-212 Wide basket frame for 20” W basket 13 100-226 Bolt 1 1/2” x 5”, Grade 5
327-211 Narrow basket frame for 8” W basket 14 108-001 Flat washer 1 1/2” SAE
2
327-050
Basket 1
Standard 14” W basket with at bars 15 327-205 Spring 1 Includes #16-17
327-133 20” W basket with at bars (for wide row beds) 16 340-029 Plug 1 Spring Drilled
327-178 8” W basket with at bars (for narrow rows) 17 327-206 Spring 3 .362 Wire
327-171 14” W basket with round bars (for Eastern corn belt) 18 120-010 Bearing 2 1” bore
3 100-289 Bolt 1 3/4” x 10”, Grade 8 19 100-003 Carriage bolt 6 5/16” x 1”, Grade 5
4 102-121 Flange Nut 1 3/4” locking 20 108-006 Flat washer 6 5/16”
5 100-158 Bolt 1 3/4” x 2 1/2”, Grade 5 21 108-017 Lock washer 6 5/16”
6 104-030 Cotter pin 4 3/16” x 2” 22 102-004 Nut 6 5/16”
7 110-001 Grease tting 1 1/4” 23 120-012 Flangette 4 3 Bolt - 2 3/8” diameter
8 327-207 Basket Mount 1 --- 24 327-155 Trunion Shaft 1 ---
9 327-154 Bushing 1 --- 25 108-022 Lock washer
1 3/4”
10 102-007 Nut 5 1/2” 26 102-009 Nut 1 3/4”
11 108-020 Lock washer 4 1/2”
7 - 10
