Orthman 1tRIPr - Rolling Basket Down Pressure

Made in the U.S.A.
FIELD SETTINGS
D A N G E R
C A U T I O N
C A U T I O N
Be extremely careful working
around unshielded sharp edges.
Injury may result from contact
with sharp edges.
153 - 045

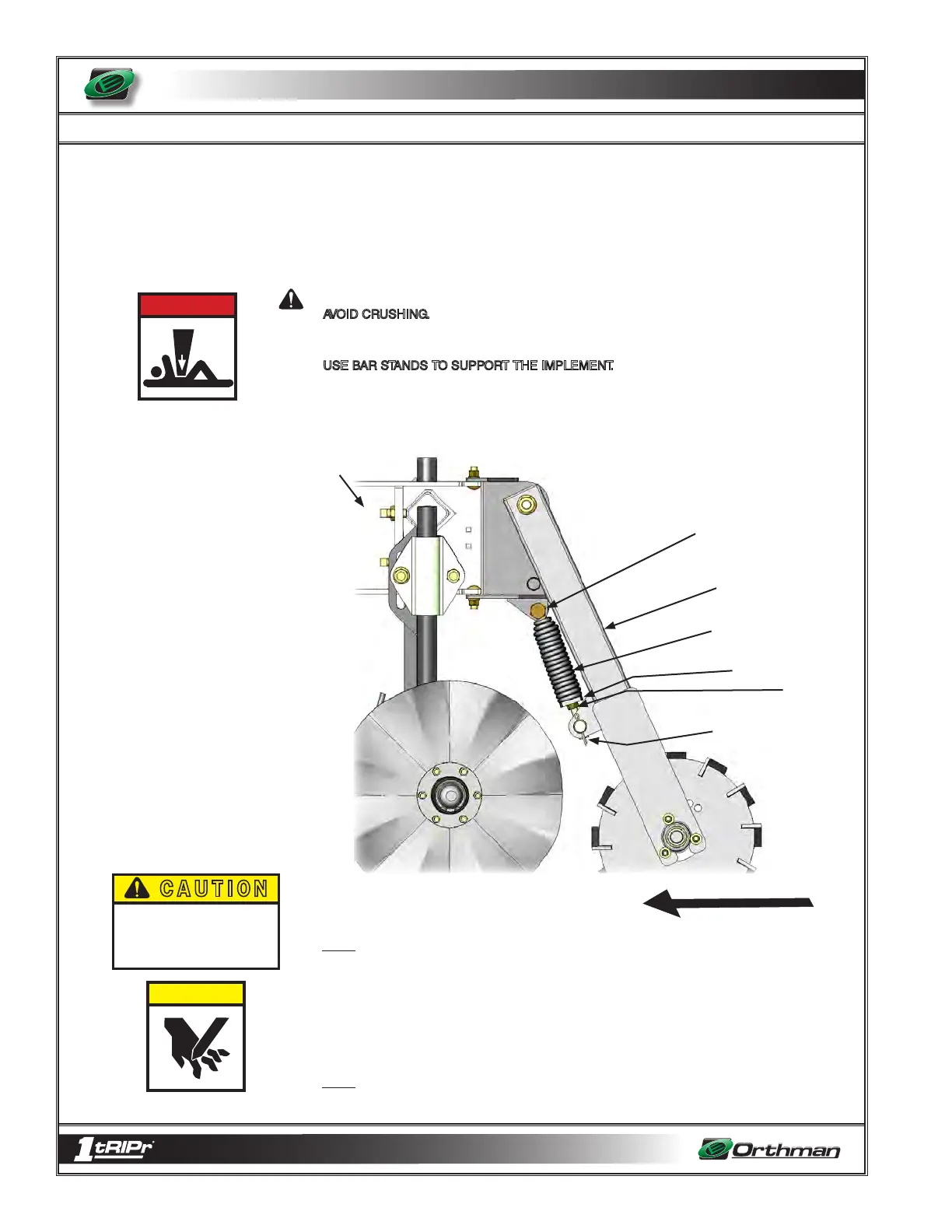

(VIEW LOOKING FROM SIDE OF THE ROW UNIT)
NOTE: Recommended tools: Down Pressure Adjustment Bolt and Jam Nut - 3/4 end
wrench, Spring Plug - 1 1/4 end wrench.
1. Loosen jam nut from spring plug.
2. Adjust down pressure adjustment bolt.
(clockwise - increase pressure, counterclockwise - decrease pressure)
3. Tighten jam nut against spring plug to torque specifications. (pg. 8 - 4)
NOTE: Spring hook bolt can be removed and basket assembly can be flipped over on top
of row unit for narrower shipping widths.
DIRECTION OF TRAVEL
Down Pressure
Spring
Rolling Basket
Assembly
Down Pressure
Adjustment Bolt
Jam
Nut
Spring Plug
Tail Section
Spring Hook Bolt
ROLLING BASKET DOWN
PRESSURE
An optional rolling basket assembly is available to complement the 1tRIPr® row unit.
Rolling baskets reduce clod size to decrease soil variability, retain existing soil moisture,
firm, and complete the optimum seedbed. Rolling baskets are mounted to the rear of the
row unit tail section. For mounting instructions see page 4-1.
AVOID CRUSHING. Make sure all personnel are clear of the implement. Lower implement
to the ground, place tractor in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT. Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
injury or death, as well as implement damage. Securely support all implement components
that must be raised. Remove buildup of grease, oil, or debris prior to adjusting rolling basket
down pressure.
5 - 10
