Orthman 1tRIPr - Row Cleaner Assembly

Made in the U.S.A.

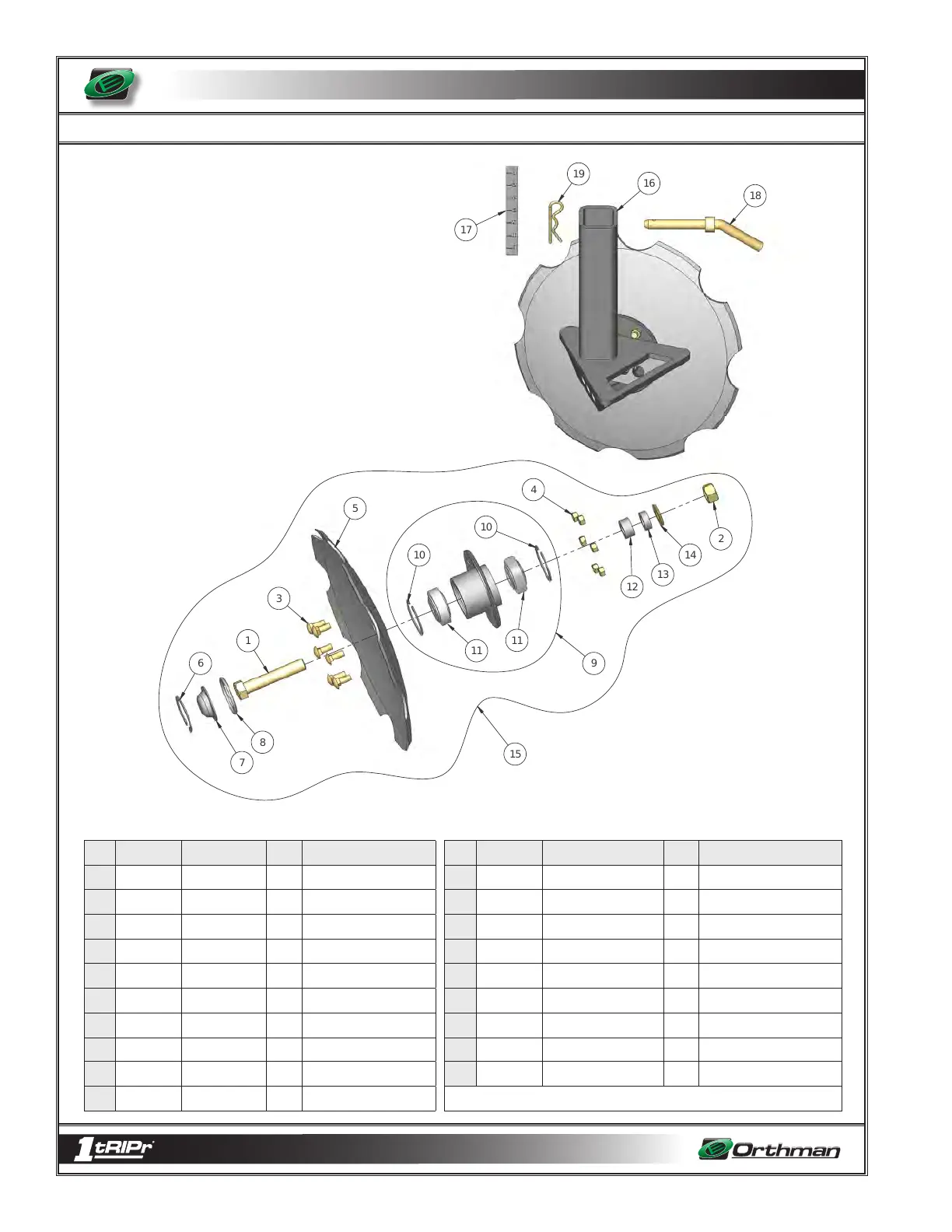

PARTS IDENTIFICATION
1
3
5
10
11
11
10
4
12
13
14
2
8
7
6
15
17
16
9
18
19
ROW CLEANER ASSEMBLY
Key Part # Description Qty. Notes Key Part # Description Qty. Notes
1 100-472 Bolt 2 3/4” x 4 1/4”, Grade 5 11 104-061 Snap ring 2 2 3/8” Internal housing
2 102-031 Lock Nut 2 3/4” 12 387-127 Bushing 1 5/8” long
3 100-004 Carriage Bolt 12 3/8” x 1”, Grade 5 13 387-128 Bushing 1 7/16 long
4 102-027 Lock Nut 12 3/8” 14 108-003 Flat Washer 1 3/4” SAE
5 166-042 Knotched Disc 2 16” 15 385-590 Disc & Hub Assembly 1 Includes items #1 thru 14
6 104-105 Snap Ring 2 2 3/8” Internal (plated) 16 385-831 Mount 1 Standard
7 319-126 Hub Cap 2 --- 17 153-152 Decal 1 Depth indicator
8 150-018 O-ring 2 2 1/2” x 2 3/8” x 3/16” 18 313-469 Pin 1 ---
9 312-321 Hub Assembly 2 Includes items #10 & 11 19 104-094 Hair Pin 1 5/32” x 3 1/4”
10 120-164 Bearing 2 3/4” bore cylin OD
387-038 Assembly
7 - 5
