Made in the U.S.A.
PARTS IDENTIFICATION
14
4
4
15
20
19
18
17
16
12
11
9
10
9
8
7
3
2
4
4
4
4
6
6
5
1
13

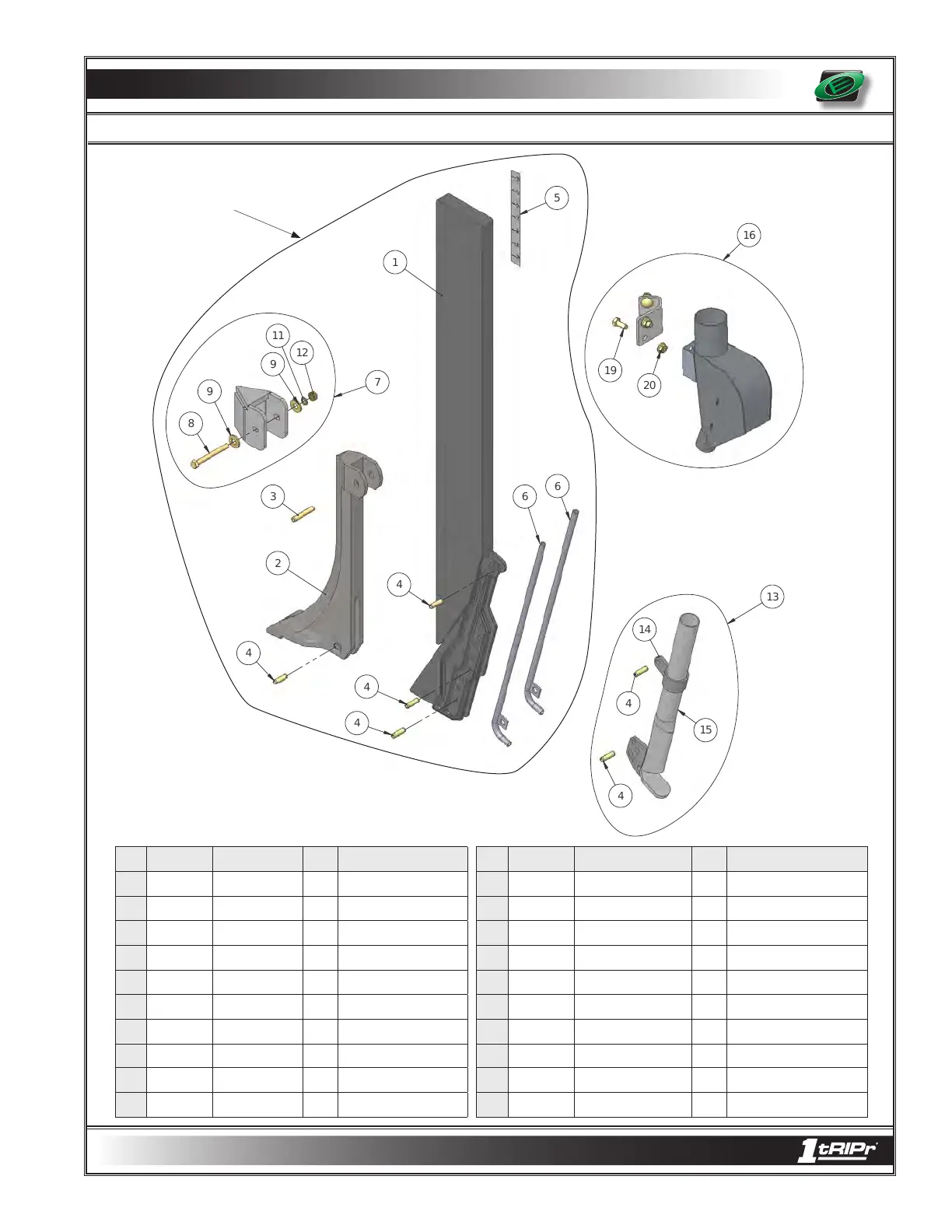

MOLE SHANK ASSEMBLY
Key Part # Description Qty. Notes Key Part # Description Qty. Notes
1 387-130 Shank 1 1” x 4” Mole Shank 11 108-017 Lock washer 1 5/16”
2 164-054 Mole Point 1 1 1/16” Wide Footpiece 12 102-004 Nut 1 5/16”
3 104-008 Roll Pin 1 5/16 x 1 3/4 Spiral 13 635-016 Dry Boot Package 1 Includes Items #4, 14 & 15
4 104-117 Roll Pin 4 5/16” x 1” 14 Boot Tube 1 Stainless Steel
5 153-152 Decal 1 Depth Indicator 15 Boot Holder 1 ---
6 385-552 Chemical Tube 2 --- 16 387-142 Diffuser & Mount 1 ASSEMBLY
7 387-060 Shin Cap Pkg 1 Includes Items #8 - 12
8 100-094 Bolt 1 5/16” x 2 3/4”, Grade 5
9 108-006 Flat washer 2 5/16” 19 100-100 Bolt 4 5/16” x 3/4”, Grade 5
20 102-107 Flange Nut 4 5/16” serrated
7 - 6
387-050
