Made in the U.S.A.

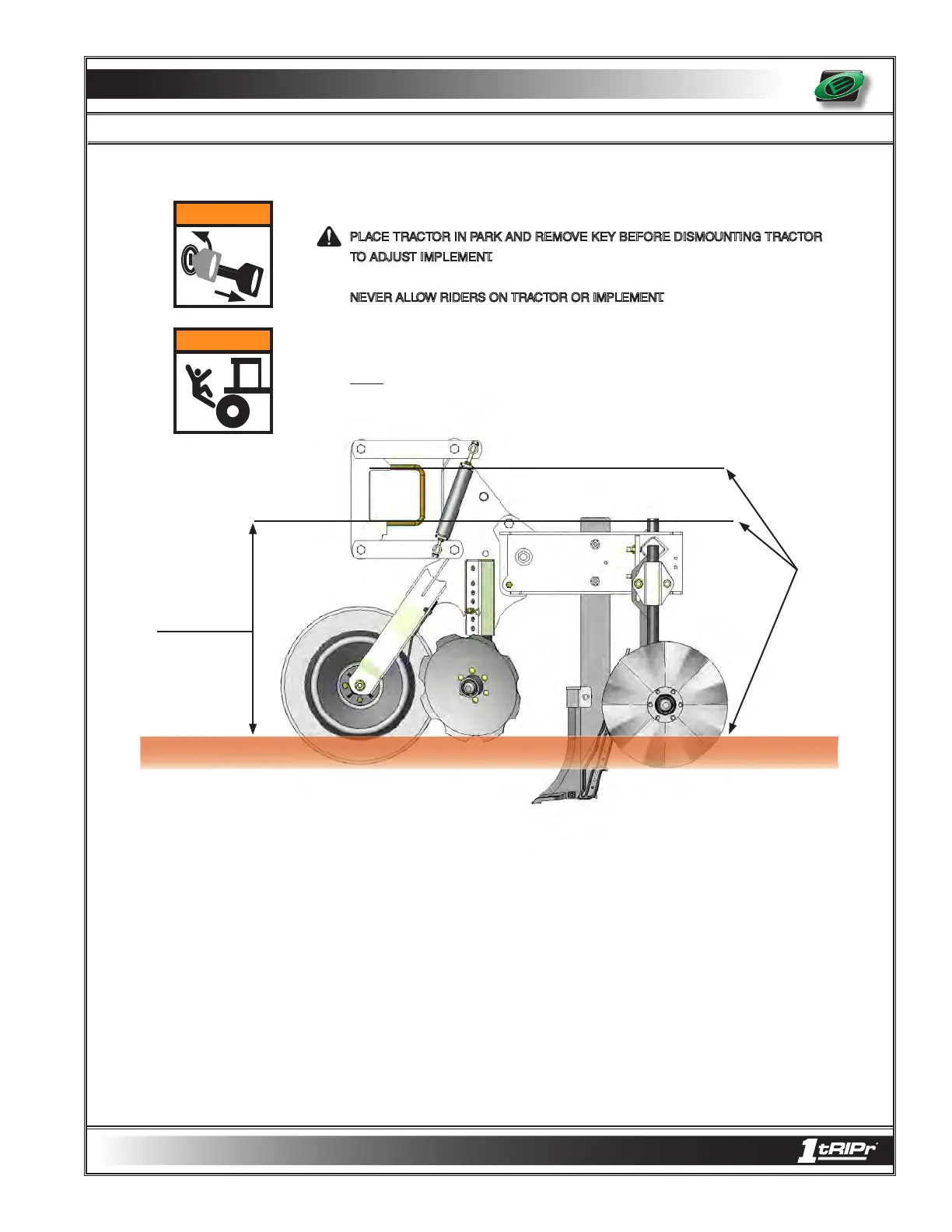

FIELD SETTINGS
Ground Surface
30 - 32
Inches
Three
Parallel
Lines
Top of
Toolbar
Bottom of
Toolbar
Ground Surface
The top and bottom of the toolbar must operate parallel with the ground surface.
Adjustment of tractor three point third link, lift assist wheels, and/or toolbar gauge wheels,
if equipped, will allow the toolbar to operate parallel with the ground surface.
The bottom of the toolbar should operate approximately 30 - 32 inches above the ground
surface. Use tractor lower hitch stop, lift assist wheels, and/or toolbar gauge wheels, if
equipped, to set desired toolbar height.
Have an assistant pull the tractor and implement slowly forward in the field position
as you view the end of the toolbar from a safe distance. Observe toolbar height and
orientation while in operation. Make adjustments accordingly until the top and bottom
of the toolbar operate parallel with the ground surface and the bottom of the toolbar
operates approximately 30 - 32 inches above the ground surface.
(as pictured above)
TOOLBAR HEIGHT AND
ORIENTATION
PLACE TRACTOR IN PARK AND REMOVE KEY BEFORE DISMOUNTING TRACTOR
TO ADJUST IMPLEMENT.
NEVER ALLOW RIDERS ON TRACTOR OR IMPLEMENT. Riders hinder operator visibility
and can be thrown from the implement and/or be struck by foreign objects resulting in injury
or death.
NOTE: When setting toolbar height and orientation, disregard row unit performance.
Toolbar height and orientation must be established prior to tooling adjustment.
W A R N I N G
off
W A R N I N G
5 - 1
