Orthman 1tRIPr - Trip Linkage Assembly

Made in the U.S.A.

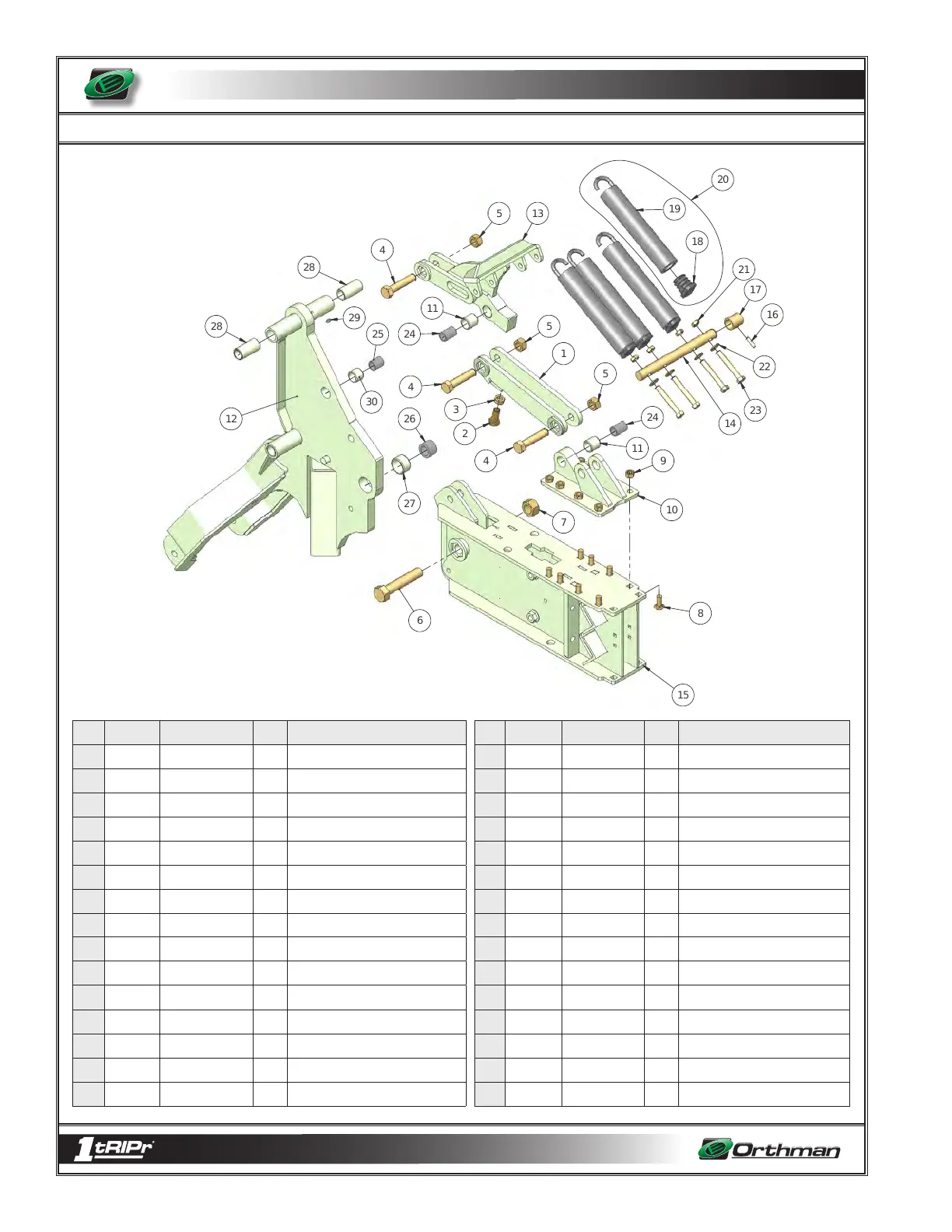

PARTS IDENTIFICATION
19
18
20
17
16
14
23
22
21
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
13
15
24
2425
2612
28
28
29
30
27
TRIP LINKAGE ASSEMBLY
Key Part # Description Qty. Notes Key Part # Description Qty. Notes
1 385-808 Bottom linkage 1 --- 16 104-039 Roll pin 1 5/16” x 1 1/4” Spiral
2 100-602 Bolt 1 5/8 Fine thread x 1 1/2” Full thread 17 385-843 Sleeve 1 ---
3 102-163 Jam nut 1 5/8 Fine thread 18 340-029 Plug 1 ---
4 100-323 Bolt 3 3/4” x 3 1/2”, Grade 8 19 317-921 Spring 1 ---
5 102-031 Lock nut 3 3/4” 20 317-920 Spring & Plug 4 INCLUDES 18 & 19
6 100-187 Bolt 1 1” x 5”, Grade 5 21 102-015 Jam nut 4 ---
7 102-020 Lock nut 1 1” Nylock, Grade 2 22 108-001 Washer 4 ---
8 100-012 Carriage bolt 8 1/2” x 1 1/4”, Grade 5 23 100-288 Bolt 4 ---
9 102-028 Lock nut 8 1/2” 24 387-085 Crush Sleeve 2 .995 OD x .760 ID x 1.469 long
10 387-082 Mount 1 Includes #11 25 387-084 Crush Sleeve 1 .995 OD x .760 ID x 1.188 long
11 134-111 Bushing 2 1 1/4” OD x 1” ID x 1 1/4” long 26 387-086 Crush Sleeve 1 1.495 OD x 1.005 ID x 1.038 long
12 387-150 Main Frame 1 Includes #27 - 30 27 134-017 Bushing 1 1 3/4 OD x 1 1/2 ID x 1” long
13 387-080 Top linkage
1 Includes #11 28 134-067 Bushing 4 1 1/4” OD x 1” ID x 2 1/2” long
14 385-829 Pin 1 --- 29 110-001 Grease Zerk 2 1/4” Straight
15 387-100 Tail 1 --- 30 134-034 Bushing 1 1 1/4” OD x 1” ID x 1” long
7 - 9
