Orthman 1tRIPr - Wavy Coulter Assembly

Made in the U.S.A.

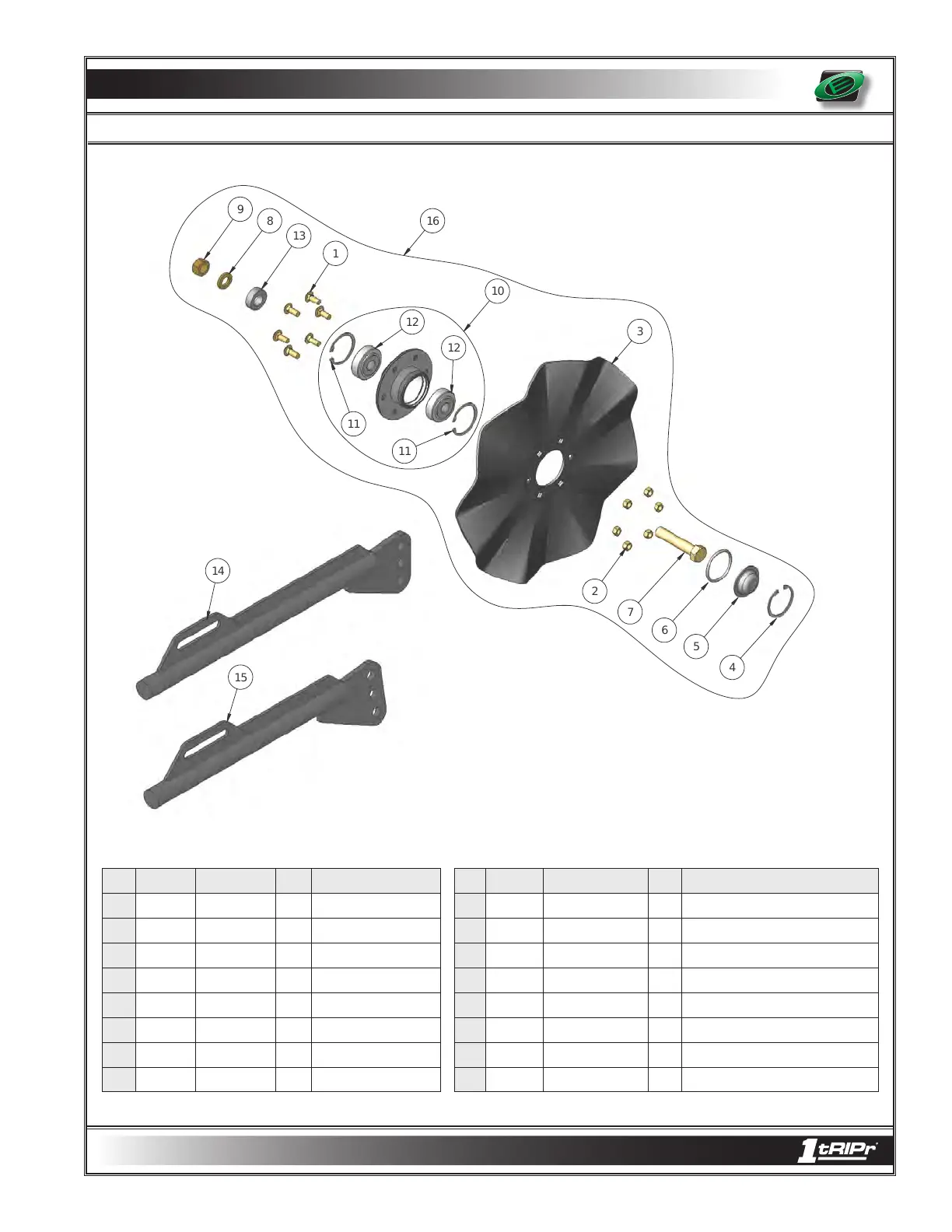

PARTS IDENTIFICATION
1
2
3
4
5
6
7
8
9
11
11
12
12
13
14
15
10
16
WAVY COULTER ASSEMBLY
Key Part # Description Qty. Notes Key Part # Description Qty. Notes
1 100-004 Carriage Bolt 6 3/8” x 1”, Grade 5 9 102-009 Nut 1 3/4”, Grade 5
2 102-027 Lock Nut 6 3/8” 10 312-319 Hub Assembly 1 Includes items #11 & 12
3 166-040 Wavy Coulter 1 17 1/2” 11 104-061 Snap Ring 2 2 3/8” Internal housing
4 104-105 Snap Ring 1 2 3/8” Internal (plated) 12 120-070 Bearing 2 3/4” bore cylin OD
5 319-126 Hub Cap 1 --- 13 312-057 Spacer 1 ---
6 150-018 O-ring 1 2 1/2” x 2 3/8” x 3/16” 14 312-096 Shank 1 Right Side (longer shank 23” shaft)
7 100-202 Bolt 1 3/4” x 3 3/4”, Grade 5 15 312-097 Shank 1 Left Side (shorter shank 19” shaft)
8 108-022 Lock washer 1 3/4” 16 385-545 Hub & Disc Assy. 1 Includes items #1 - 13
7 - 8
