FIELD SETTINGS

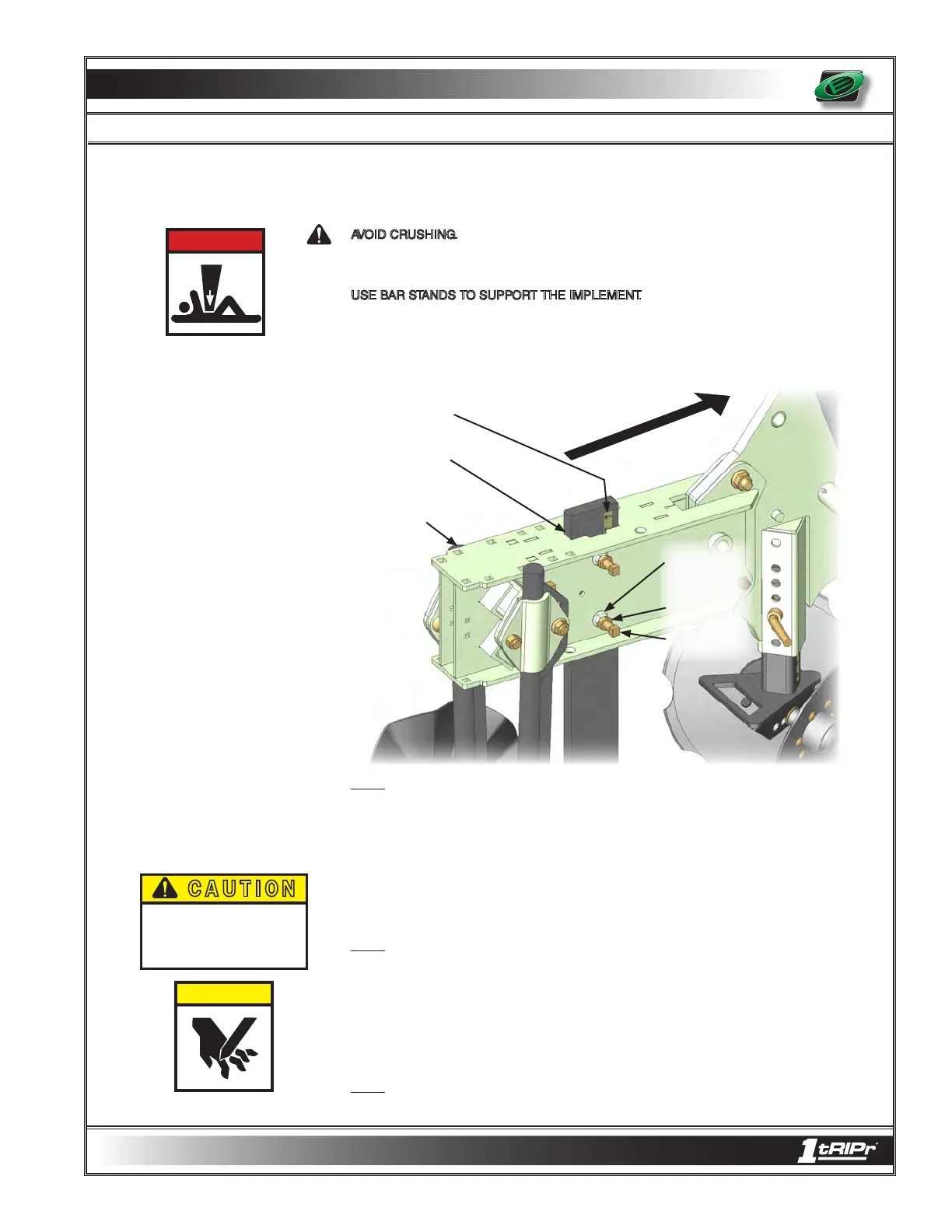

TILLAGE SHANK ASSEMBLY DEPTH
(MOLE SHANK OR MOLE KNIFE)
AVOID CRUSHING.
Make sure all personnel are clear of the implement. Lower implement
to the ground, place tractor in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT.
Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
injury or death, as well as implement damage. Securely support all implement components
that must be raised. Remove buildup of grease, oil, or debris prior to adjusting tillage shank
depth.
D A N G E R
C A U T I O N
C A U T I O N
Be extremely careful working
around unshielded sharp edges.
Injury may result from contact
with sharp edges.
153 - 045
NOTE: Recommended tools: Jam Nut - 15/16 end wrench, Set Bolt - 5/8 eight point
socket. (3/4 end wrench will substitute for the 5/8 eight point socket, although not
recommended)
1. Physically support the weight of the tillage shank assembly.
2. Slightly loosen jam nuts and set bolts.
3. Vertically adjust tillage shank assembly to desired depth.
NOTE
: A depth indicator allows for uniform tillage shank assembly depth between row
units. Depth indicator decal does not reflect actual tillage depth. Use depth indicator
decal as a tool to achieve uniform depth across the implment.
4. Tighten set bolts and jam nuts to secure tillage shank assembly to tail section.
5. Tighten hardware to proper torque specifications. (pg. 8- 4)
NOTE: Tail Flange nuts are welded to both sides of the tail. Jam nuts and set bolts can be
moved to the opposite side for ease of adjustment.
DIRECTION OF TRAVEL
Shank Housing
Tail Section
Flange Nut (2)
(welded to tail)
Jam Nut (2)
Set Bolt (2)
Depth Indicator
5 - 7
