FIELD SETTINGS
If utilizing an Orthman Air Diffuser it can be orientated as shown in the picture (below/to
the right). The Air Diffuser can be mounted on either side of the row unit tail. The Air Dif-
fuser is designed to work with an input hose size of 2” inside diameter. The output hose
size is 1 ¼ inside diameter to match up with the Adjustable Dry Fertilizer Boot.
NOTE: If user has purchased and Orthman Atlas Cart, the Diffuser mount may be a
different style that mounts to the top part of the round shank of the wavy coulters. This
is due to the fact that the purchaser of an Orthman Atlas Cart may already own an older
version of the 1tRIPr® machine that does not have the diffuser mount holes in the tail.
Contact Orthman Manufacturing for any Diffuser mount bracket concerns.

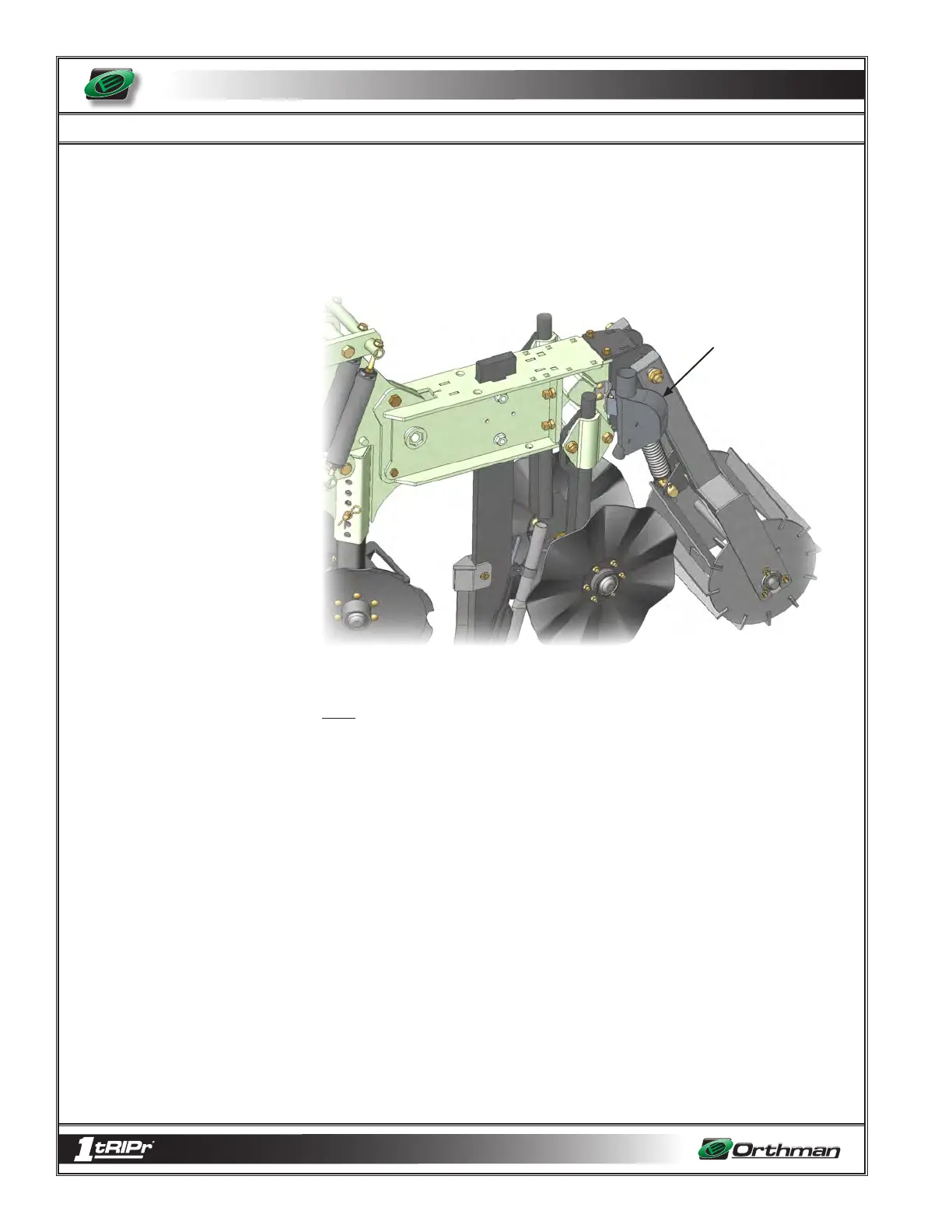

Orthman Diffuser
and Diffuser Mount
5 - 16
