4.Quick Start
6
6
Foot Stool
Tilt the signal generator for easy operation
7
USB interface
Connect with external USB devices, e.g. USB
stick
8
USB Device interface
Used to connect a USB type B controller. Can be
connected with PC, the signal generator can be
controlled by the host computer software
Power On
(1) Connect the instrument to an DC power source using the power cord
supplied with the accessory.
Warning:
To prevent electric shock, make sure the instrument is properly
grounded.
(2) Press the power button on the front panel. The back of the power channel
switch will light up, and the buzzer will sound.
User Interface
1
4
2
3
6
7
13
12
11
10
14
8
9
5

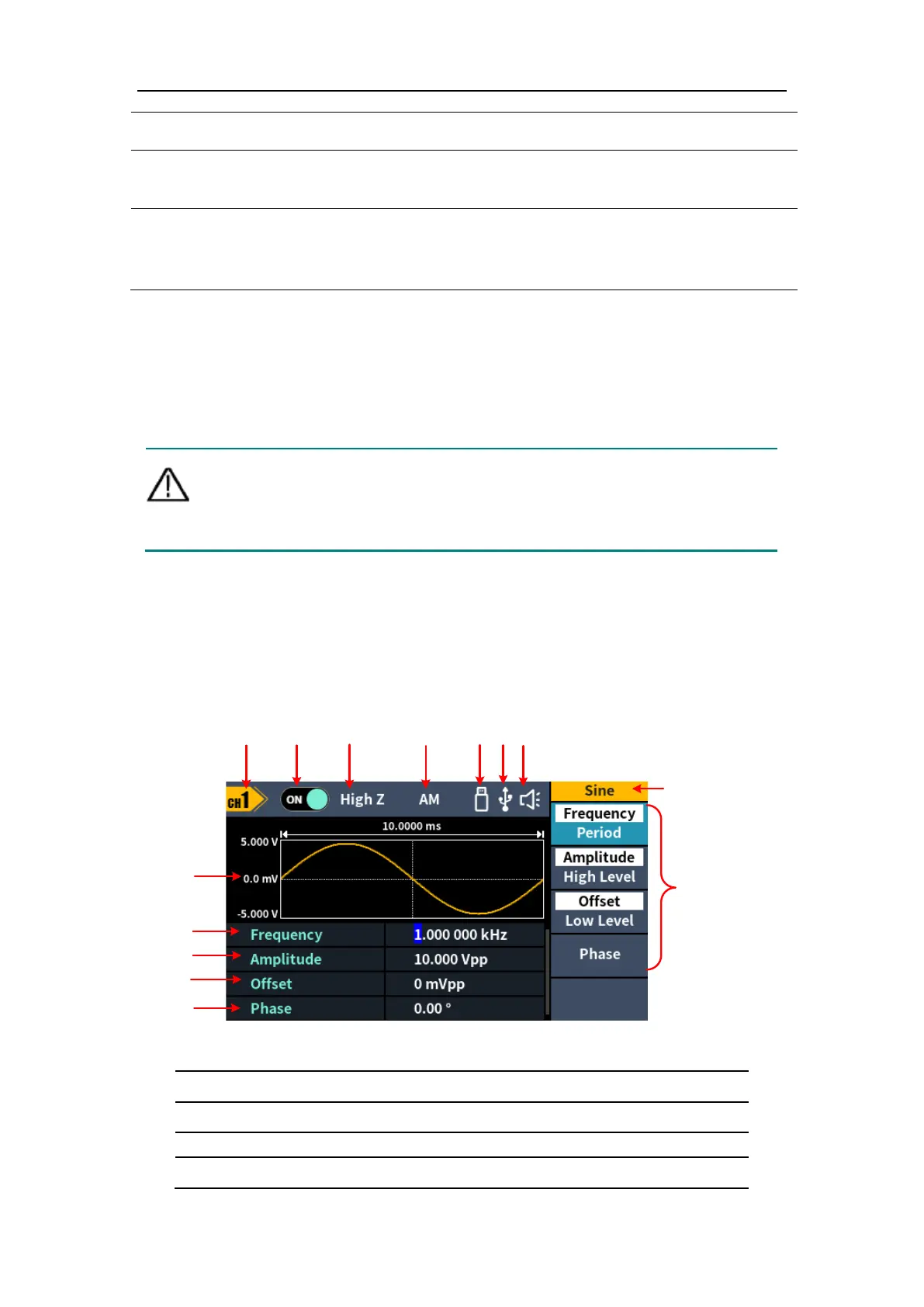

Figure 4-3: User Interface
1
Display channel name
2
Display channel switch status
3
Display load
4
Current mode
