Set the rising/falling time
Press the Rise/Fall softkey, the chosen menu item is highlighted. Press the
Rise/Fall softkey to switch between Rising Time and Falling Time. In
Parameter 6 of Figure 5-7, a blinking cursor appears in the parameter value.
Turn the knob to change the value directly, or use the numeric keypad to
input the desired value and choose the unit.
Output Noise Wave
The noise wave which the generator output is white noise. Press , the
screen displays the user interface of the noise wave. The Noise waveform
parameters can be set by operating the Noise setting menu on the right.
The noise wave has no frequency and periodic parameters.
The noise wave menu includes: Amplitude/High Level, Offset/Low Level.
To set the Amplitude/High Level, Offset/Low Level, please refer to Output Sine
Wave on page 8.

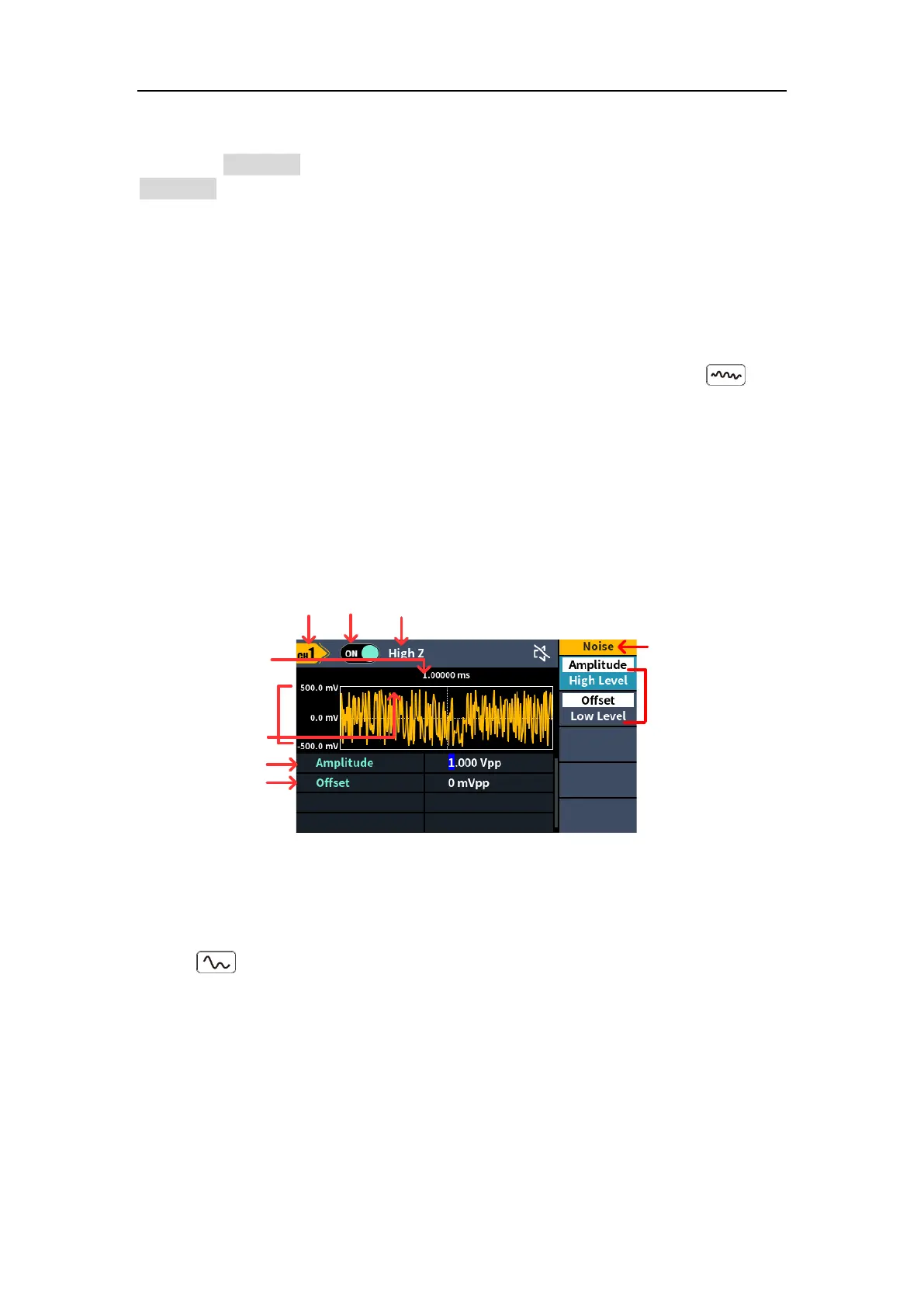

Figure 5-9: Noise wave user interface
Output Arbitrary Wave
Press , the screen displays the user interface of the arbitrary wave. The
Arbitrary waveform parameters can be set by operating the Arbitrary setting
menu on the right.
The arbitrary wave menu includes: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Phase, Built-in Waveform and Store.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, Phase,
please refer to Output Sine Wave on page 8.
The Arbitrary signal consists of two types: the system built-in waveform and
the user-definable waveform.
To Next Page
