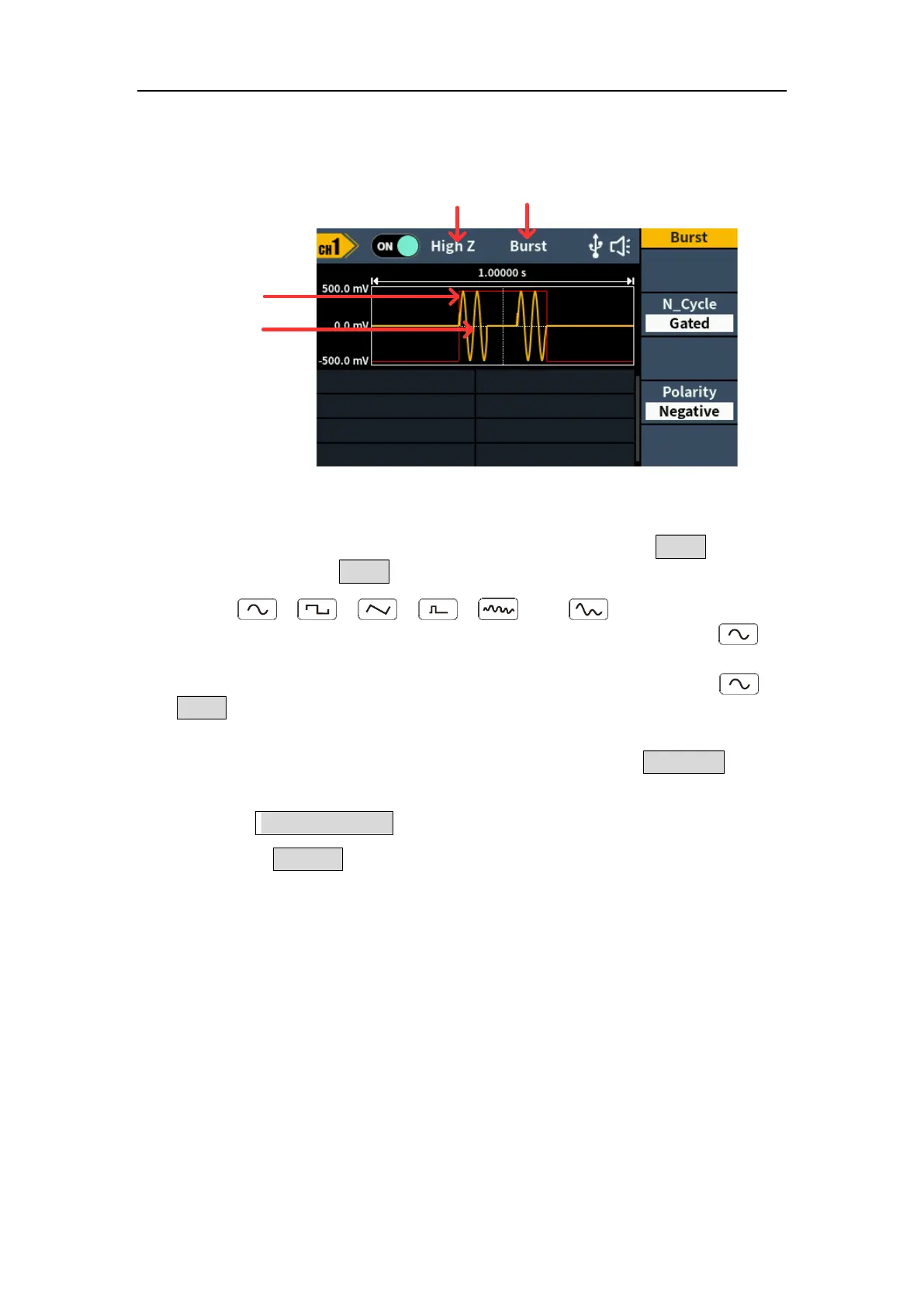

Figure 5-13: Gated burst user interface
(1) When the output signal is Sine, Square, Ramp, Pulse, Noise or
Arbitrary wave (except DC), press the front panel Mode function
key ,then press the Burst to enter the burst mode.
(2) Press , , , , , or to select the bust
waveform. For example, when selecting a sine wave, press to
display the burst waveform and parameters, and change the parameters.
For details, please refer to Output Sine Wave on page 8. Press or
Mode to return to the burst mode interface.
Note: Before configuring the waveform parameters, you must first select
the channel you want to configure. You can press the CH1/CH2 key to
switch the channel user interface.
(3) Press the N_Cycle/Gated softkey to hightlight Gated.
(4) Press the Polarity softkey to set the gated polarity as Positive (or
Negative). The generator outputs burst waveform only when the gated
signal is positive (or negative). When the gated signal is true, the
generator outputs a continuous waveform; when the gated signal is false,
the generator completes the current period, and then stops and holds on
the voltage level corresponding to the initial burst phase of the selected
waveform. For Noise waveform, the output will stop immediately once the
gated signal becomes false.
Output the Modulated Waves
Supported modulation types include: AM (Amplitude Modulation), FM
