2.6 Main components
This section gives a brief description of the internal components of the MercuryiPS. Figure 3
shows how these components are arranged inside the MercuryiPS enclosure.

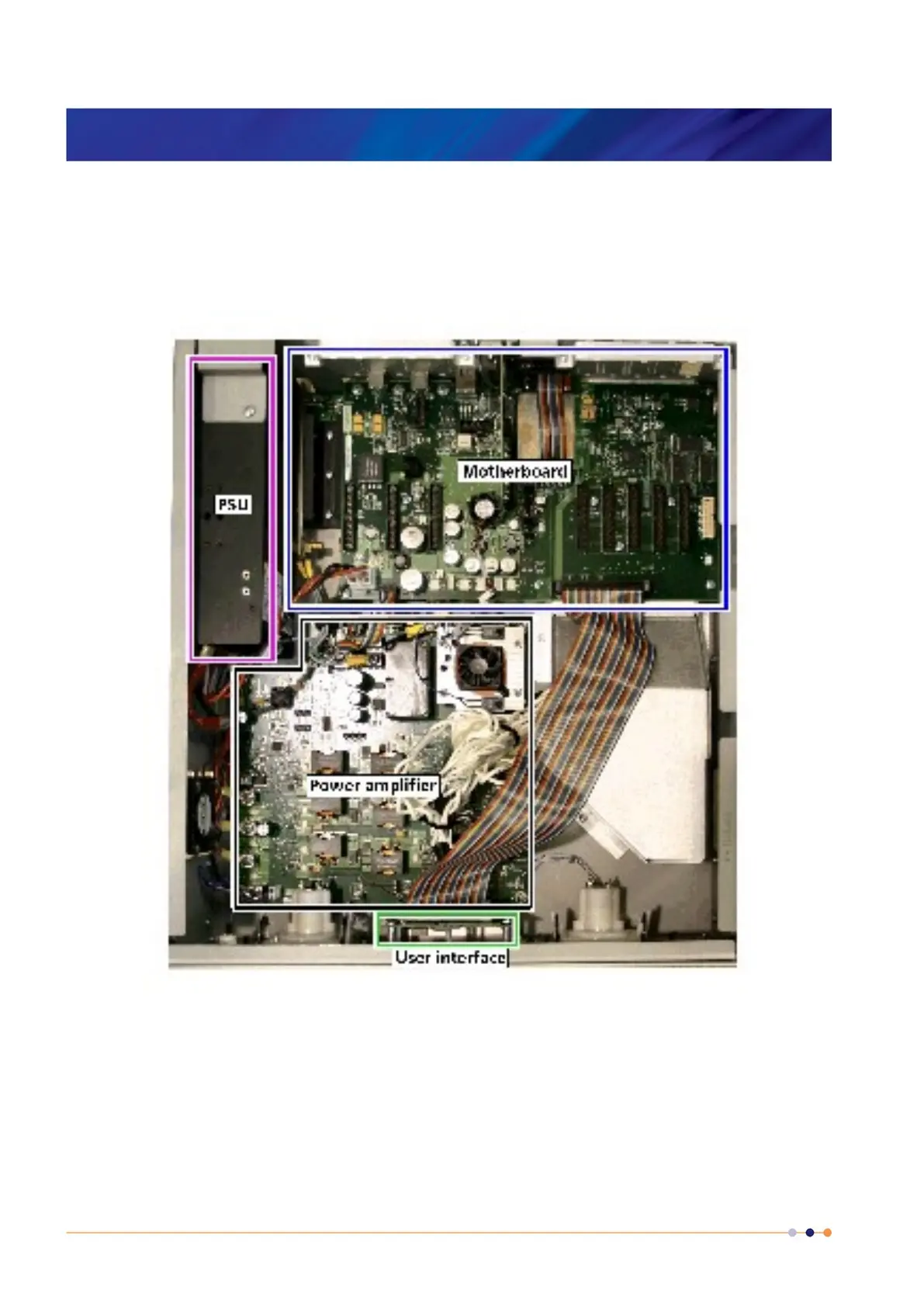

Figure 3 View of internal layout of MercuryiPS
The MercuryiPS consists of:
 a 3U high 19 inch rack or desktop enclosure
 a power supply
