SPECIFICATIONS
Electrical specifications:
5V DC 1.7A (USB type C supply)
Li-Po Battery 2200mAh
Radio equipment:
Bluetooth 5.0, 2.4GHz, Tx Max: 4 dBm
Mechanical specifications:
Aluminum chassis & Silicone buttons
Dimensions: 36 x 13 x 3 cm
Weight: 890 gr.
Operating temperature:
10 ºC to 36 ºC

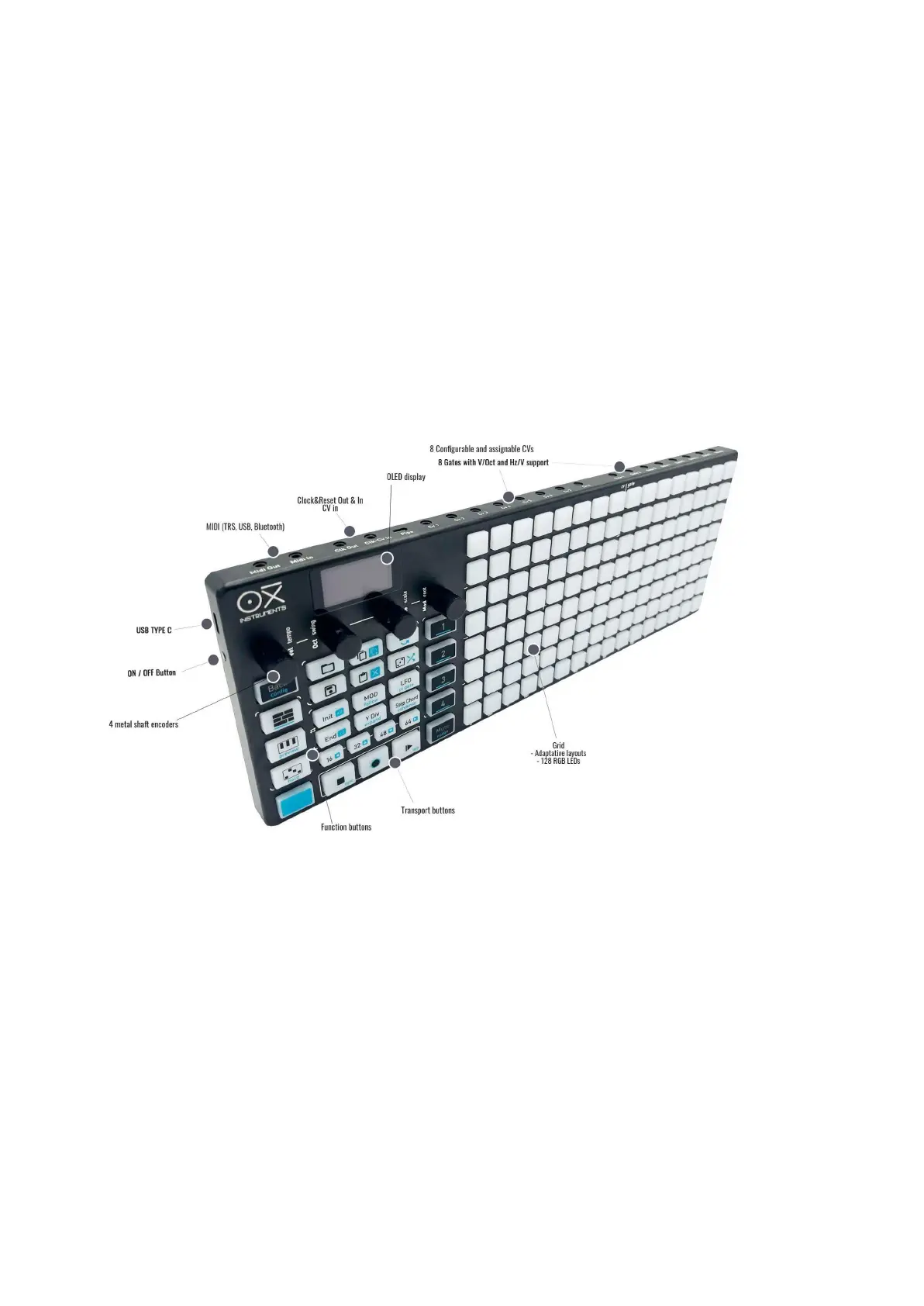

INPUTS AND OUTPUTS
· USB C for 5V power supply and MIDI USB. It also charges the internal Li battery
· MIDI TRS input and output (Din adapter included). MIDI Out is 5V, MIDI IN accepts both 5V and 3.3V
· MIDI Bluetooth BLE 5.0 bidirectional, peripheral and central roles.
· CVS (1 t 8) outputs: from -3V to 8V
· GATE (1 to 8) outputs: 5V or 10V configurable
· Clock Out and Clock/CV In (can be independent with a splitter)
