Pacific Power Source UPC-3 User Manual

SECTION 5 REMOTE OPERATION
95

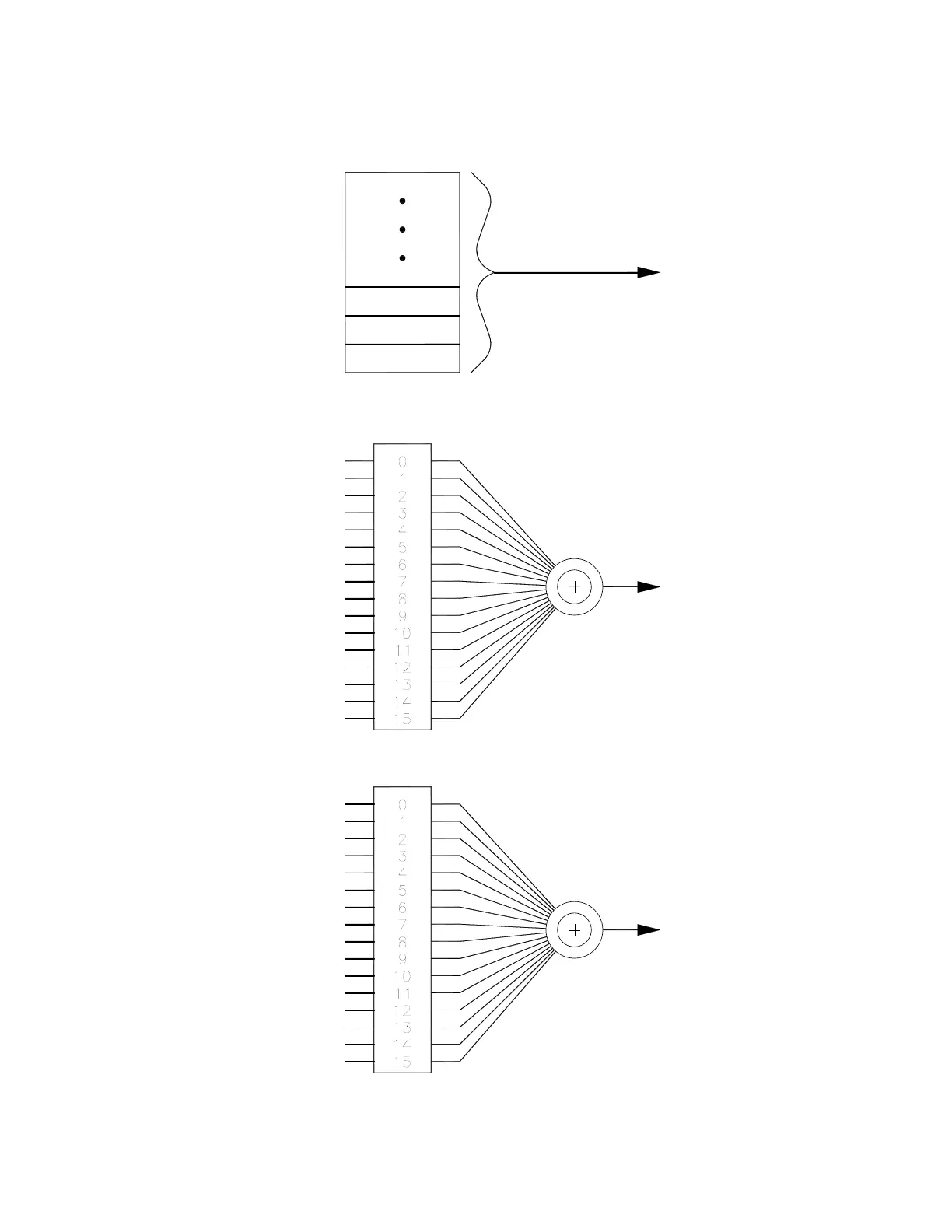

FIGURE 5.3 SCPI STATUS REGISTERS MODEL
VOLTage
CURRent
TIME
POWer
TEMPerature
FREQuency
PHASe
MODulation
CALibration
not assigned
not assigned
not assigned
not assigned
INSTrument Summary
Command Warning
NOT USED
CALibration
SETTing
RANGing
SWEeping
MEASuring
waiting for TRIGger summary
waiting for ARM summary
CORRection
not assigned
not assigned
not assigned
not assigned
not assigned
INSTrument Summary
PROGram running
NOT USED
ERROR/EVENT
QUEUE
Queue
Not Em
p
t
y
To EEQ bit of
STATUS BYTE
(bit 2)
To SQS bit of
STATUS BYTE
(bit 3)
Logical OR
Logical OR
To SOS bit of
STATUS BYTE
(bit 7)
[SYSTem:ERRor?] Æ FED INTO OUTPUT QUEUE
QUEStionable status (enabled events)
OPERation status (enabled events)
