Pacific Power Source UPC-3 User Manual

SECTION 2 SPECIFICATIONS
18
J5
(Rear of SCU)
1
LV COMMON
14
2
LV COMMON
15
TRANSIENT PEDESTAL
3
LV COMMON
16
DRM
4
LV COMMON
17
SYNC OUT
5
18
6
19
7
ΦA AM LO
20
ΦA AM HI
8
ΦB AM LO
21
ΦB AM HI
9
ΦC AM LO
22
ΦC AM HI
10
ΦA AUX IN LO
23
ΦA AUX IN HI
11
ΦB AUX IN LO
24
ΦB AUX IN HI
12
ΦC AUX IN LO
25
ΦC AUX IN HI
13

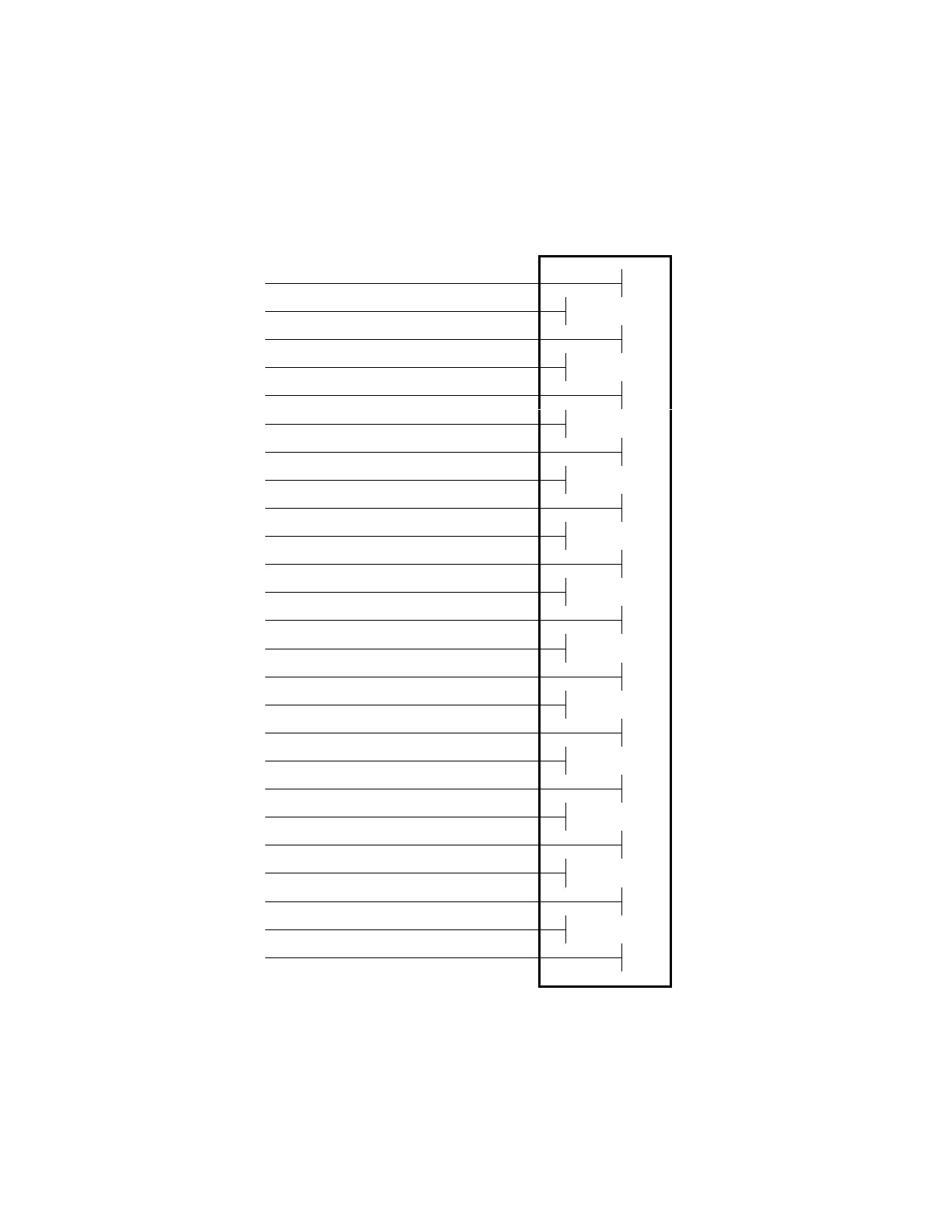

Figure 2.3.6 J5 AUXILIARY INPUTS AND OUTPUTS

Pacific Power Source UPC-3 Specifications

General

Brand	Pacific Power Source
Model	UPC-3
Category	Controller
Language	English
