Pacific Power Source UPC-3 User Manual

SECTION 2 SPECIFICATIONS
19
2.3.8 METERING INPUTS
Metering inputs are on J2. Common mode must be within ± 10 V
peak
with respect to power supply
common.
J2
(Rear of SCU)
ΦA CURRENT HI
1
ΦA CURRENT LO
14
ΦB CURRENT HI
2
ΦB CURRENT LO
15
ΦC CURRENT HI
3
ΦC CURRENT LO
16
1Φ CURRENT LO
4
1Φ CURRENT HI
17
1Φ / ΦA VOLTS HI
5
1Φ / ΦA VOLTS LO
18
ΦB VOLTS HI
6
ΦB VOLTS LO
19
ΦC VOLTS HI
7
ΦC VOLTS LO
20
SPARE HI
8
SPARE LO
21
9
LV COMMON
22
10
LV COMMON
23
11
LV COMMON
24
12
LV COMMON
25
13

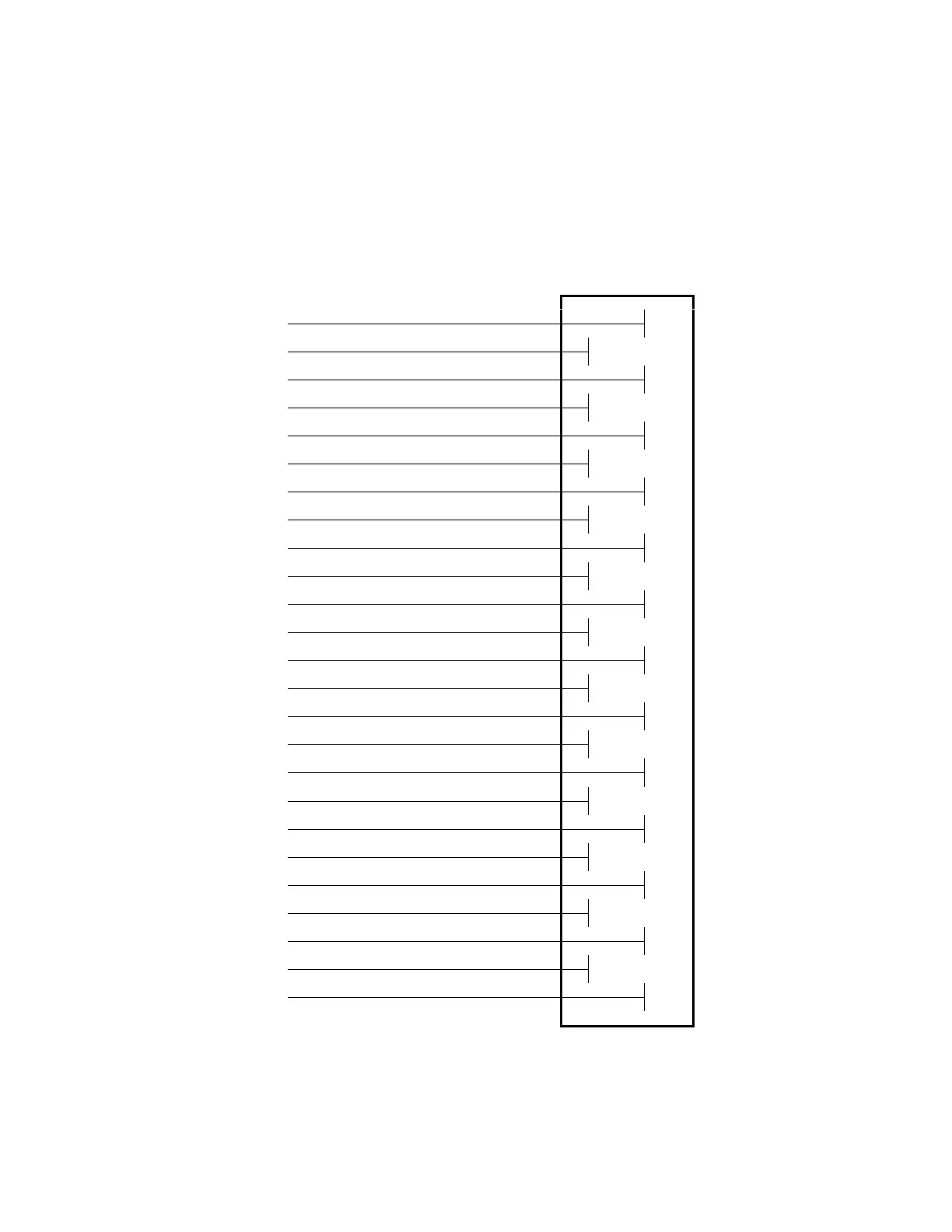

Figure 2.3.8 J2 METERING INPUTS
