Digital Video Recorder
3
Chapter 2 — Installation
Package Contents
The package contains the following:
Digital Video Recorder
Power Adaptor and
Power Cord
User’s Manual (This Document)
RAS Software CD and User’s Manual
Infrared Remote Control
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up part
of your system.

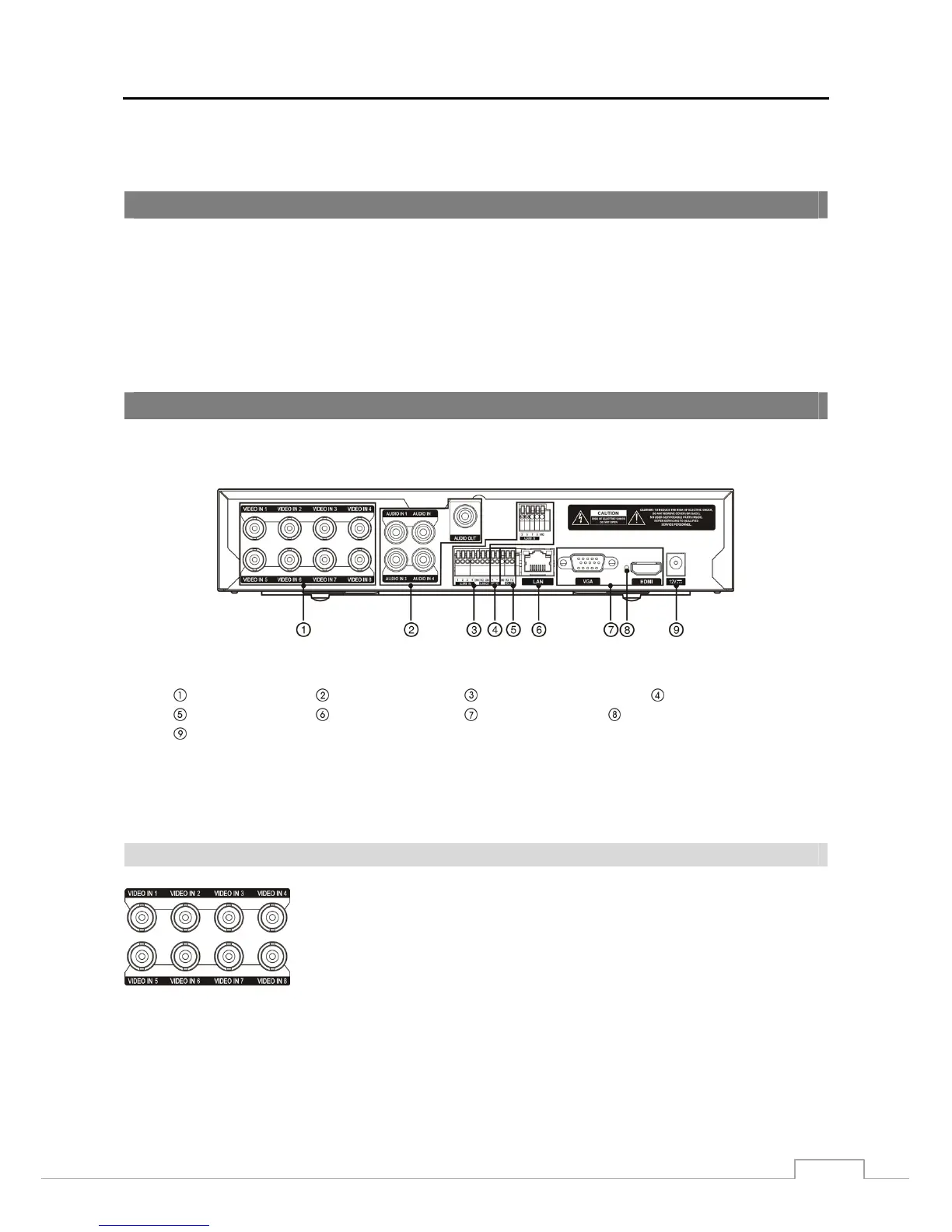

Figure 2: 8-Channel DVR rear panel.
Video Input Audio In/Out Alarm Input/Output RS485 Port
RS232 Port Network Port Video Out Factory Reset Switch
Power Cord Connector
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and an NTSC
monitor.
Video Input
Connect the coaxial cables from the video sources to the BNC Video In connectors.
