ACE Number - ACE controls and monitors access to the object. In the above example this is set to 1.
Source IP Address – Specify the IP address that you would like to permit or deny.
Source Wildcard – This is used to determine the range of the IP addresses. In the above example, the
source IP address is 192.168.1.2, we want to include all IP addresses in the 192.168.1.x subnet.
Therefore the wild card is set to 0.0.0.255. There are 3 zeros because we are matching the IP up to the
first 3 octets.
Deny/Permit – choose whether you want to deny access or permit access for the rule you set up
above.
Once you are done with the changes click the “Add” button.
It will then show towards the bottom of the screen in the table.
*Note - To enable this rule to particular ports, please see the “ACL Reference Section”
EXTENDED IP

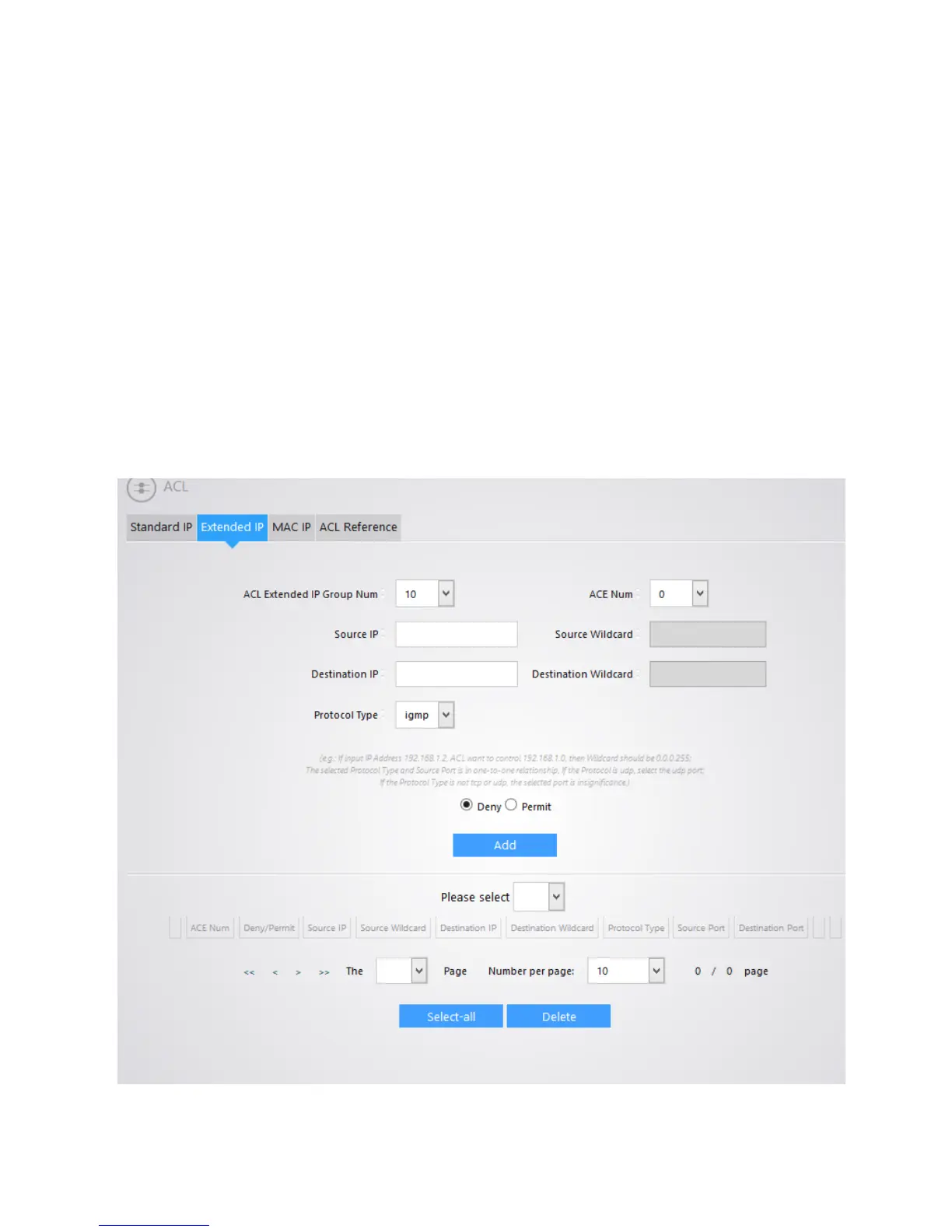

Extended IP gives you more specific options than the Standard IP. Below is an example of the page.
