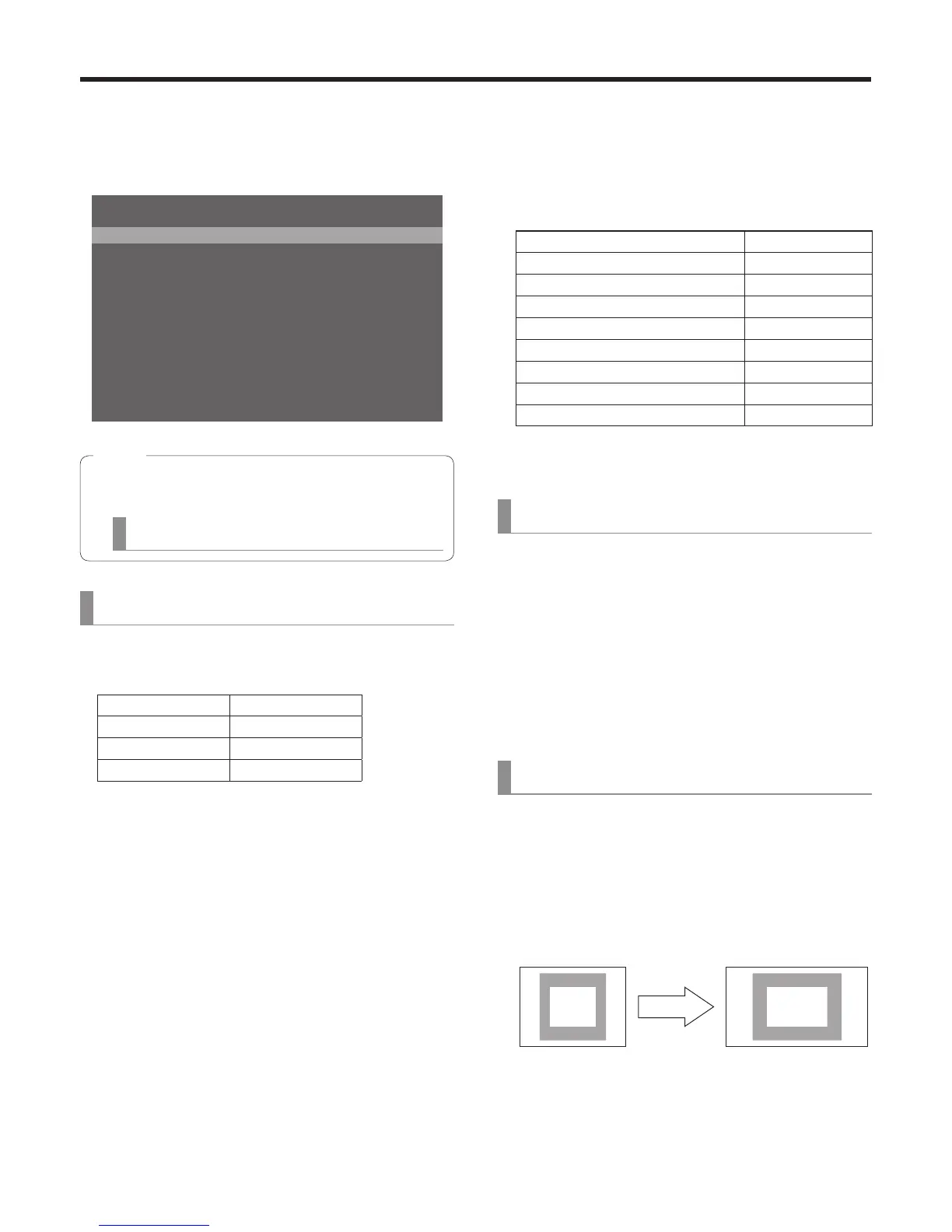

39 (E)
4. System settings
4-1. System menu settings
4-1-1. Setting the video format
The unit’s video format can be set.
(QTOCV K
*K4GU/8 
53 
#7:#PEK 1HH
2)/#PEK 1HH
289#PEK 1HH
/8#PEK 1HH
+PKVKCN 0Q
+2#FFTGUU 
5WDPGV/CUM 
)CVGYC[ 
=?5;56'//GPW
The [14] SYSTEM Menu settings cannot be changed if
“Locked” has been set using the menu item below.
[13] Operation Menu
11. SYSTEM Menu
Note
[14] SYSTEM Menu
1. Format
Select the supported format from among the options
provided below.
Supported formats
1080/59.94i 1080/50i
720/59.94p 720/50p
1080/24PsF 1080/23.98PsF
480/59.94i 576/50i
< How to specify the video format and then start
the system>
With the unit in the power-off status, the video format can be
specified and the system started.
Set the POWER switch to ON while holding down one
combination of the buttons listed below that corresponds to
the video format.
Button to press at the same time Video format
[OSD ON] + A bus crosspoint [1] 1080/59.94i
[OSD ON] + A bus crosspoint [2] 1080/50i
[OSD ON] + A bus crosspoint [3] 720/59.94p
[OSD ON] + A bus crosspoint [4] 720/50p
[OSD ON] + A bus crosspoint [5] 1080/24PsF
[OSD ON] + B bus crosspoint [1] 1080/23.98PsF
[OSD ON] + B bus crosspoint [2] 480/59.94i
[OSD ON] + B bus crosspoint [3] 576/50i
 After the POWER switch has been set to ON, keep
holding down the buttons until an image is output.
[14] SYSTEM Menu
2. HiResMV
This is used to decide whether to set the high-resolution
multi view mode.
When an SD video format (480/59.94i or 576/50i) has been
selected for the unit, the images can be output at high
resolution to the DVI-D output.
If this is the case, the multi view display is set for the DVI
OUT connector output.
The multi view display cannot be set for the SDI OUT
connector output.
On: The high-resolution multi view mode is enabled.
Off: The high-resolution multi view mode is disabled.
[14] SYSTEM Menu
3. 16:9SQ
This is used to set the 16:9 squeeze mode.
It can be set when an SD video format (480/59.94i or
576/50i) has been selected for the unit.
When adjusting the wipe and PinP border width, bear in
mind that the SD format images that are output from the unit
will be converted into the 16:9 aspect ratio and used.
< Border width when the 16:9SQ mode has been
enabled (graphical representation)>
Unit’s output
(4:3 aspect ratio)
Images converted into
16:9 aspect ratio
