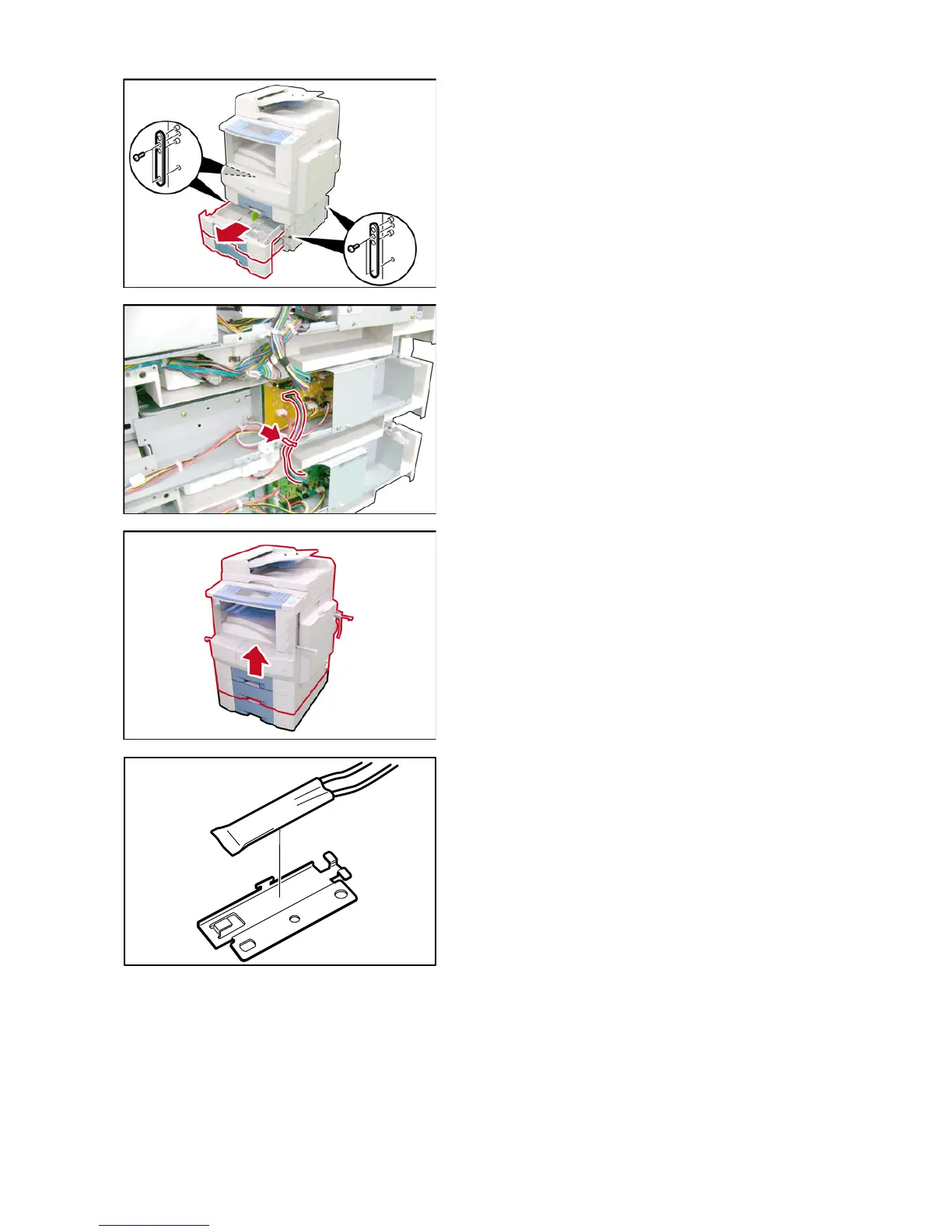

(6) Slide the 2nd and 3rd Paper Trays out.
(7) Remove 8 Screws.
(8) Remove 4 Brackets.
(9) Disconnect the CST3 Harness from CST2 PC Board
(CN772).
(10) Release the CST3 Harness from the Harness Clamp.
(11) Separate the 3rd Paper Feed Module from the
machine.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries, use
the appropriate number of personnel and the proper
equipment to lift or move the machine.
(12) Mount the Heater onto the Heater Bracket.
