DP-8032/8025
2008Ver.1.2

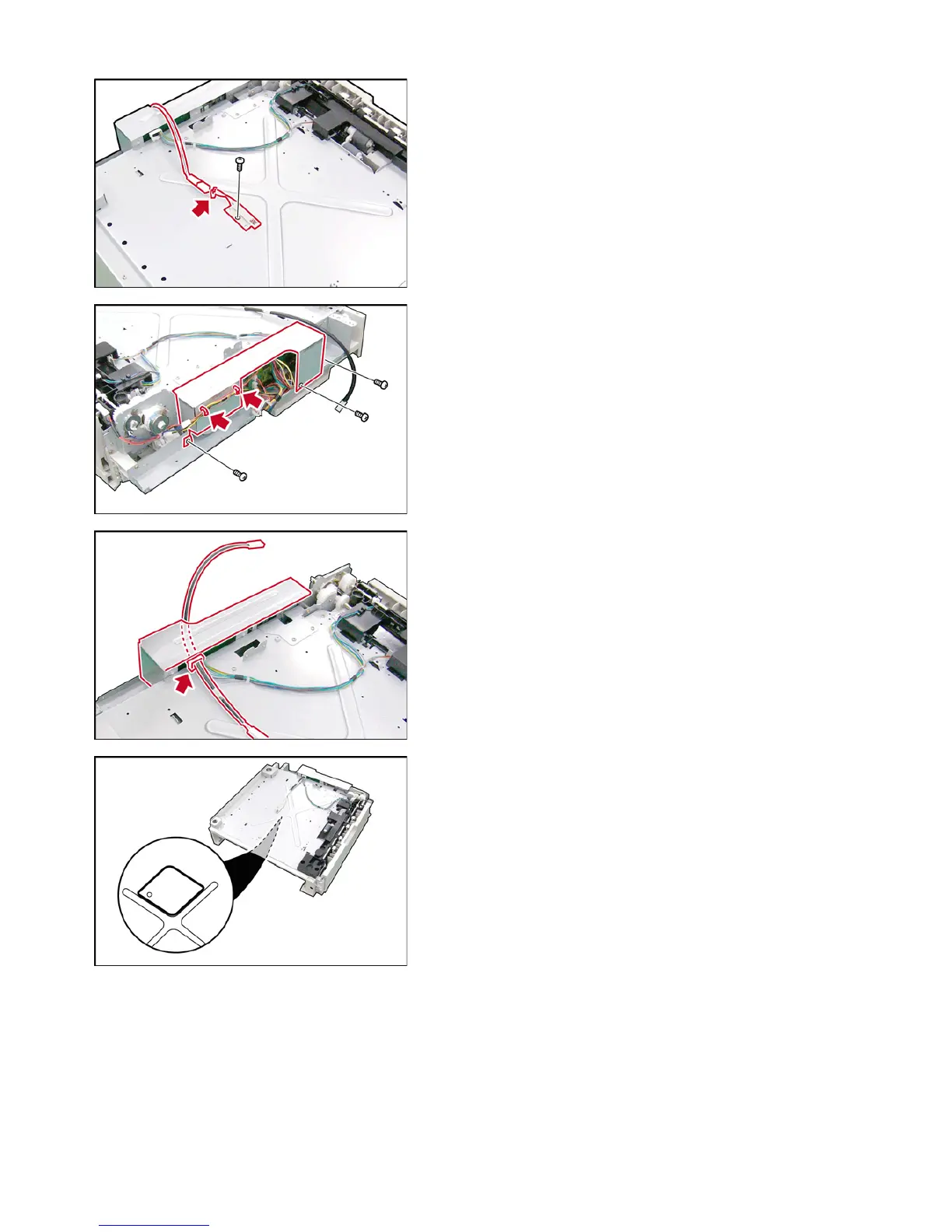

(13) Install the Heater Assembly.
(14) Secure the Heater Assembly with 1 Screw.
(15) Connect the Heater Assembly to the HT5 Harness.
(16) Install the Harness Clamp.
(17) Insert the HT5 Harness to the Harness Clamp.
(18) Release the Harnesses from 2 Harness Clamps.
(19) Remove 3 Screws.
(20) Remove the Protection Plate.
(21) Route the HT5 Harness and secure to the Harness
Clamp.
(22) Reinstall the Protection Plate.
(23) Pull the 3rd Paper Tray out.
(24) Install the Protection Sheet.
