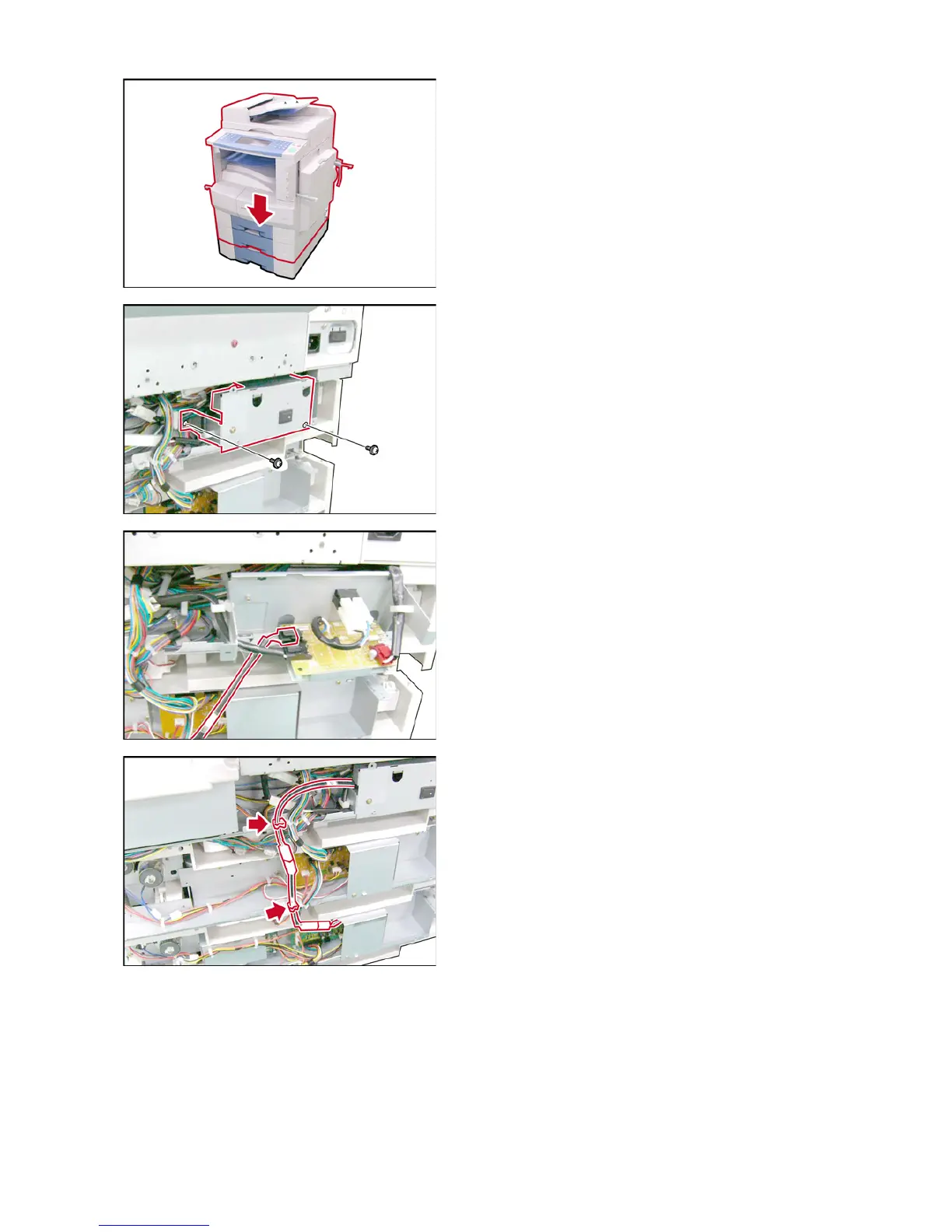

(25) Place the machine on top of the 3rd Paper Feed
Module.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries, use
the appropriate number of personnel and the proper
equipment to lift or move the machine.
(26) Reinstall 4 Brackets.
(27) Remove 2 Screws.
(28) Remove the HP Cover.
(29) Connect the HT2 Harness to the RLB PC Board
(CN174).
(30) Reinstall the HP Cover.
(31) Connect the HT5 Harness to the HT-CST Harness.
(32) Connect the HT-CST Harness to the HT2 Harness.
(33) Install the Harness Clamp.
(34) Insert the Harnesses to 2 Harness Clamps.
(35) Connect the CST3 Harness to CST2 PC Board
(CN772).
(36) Reinstall all Covers.
To Next Page
