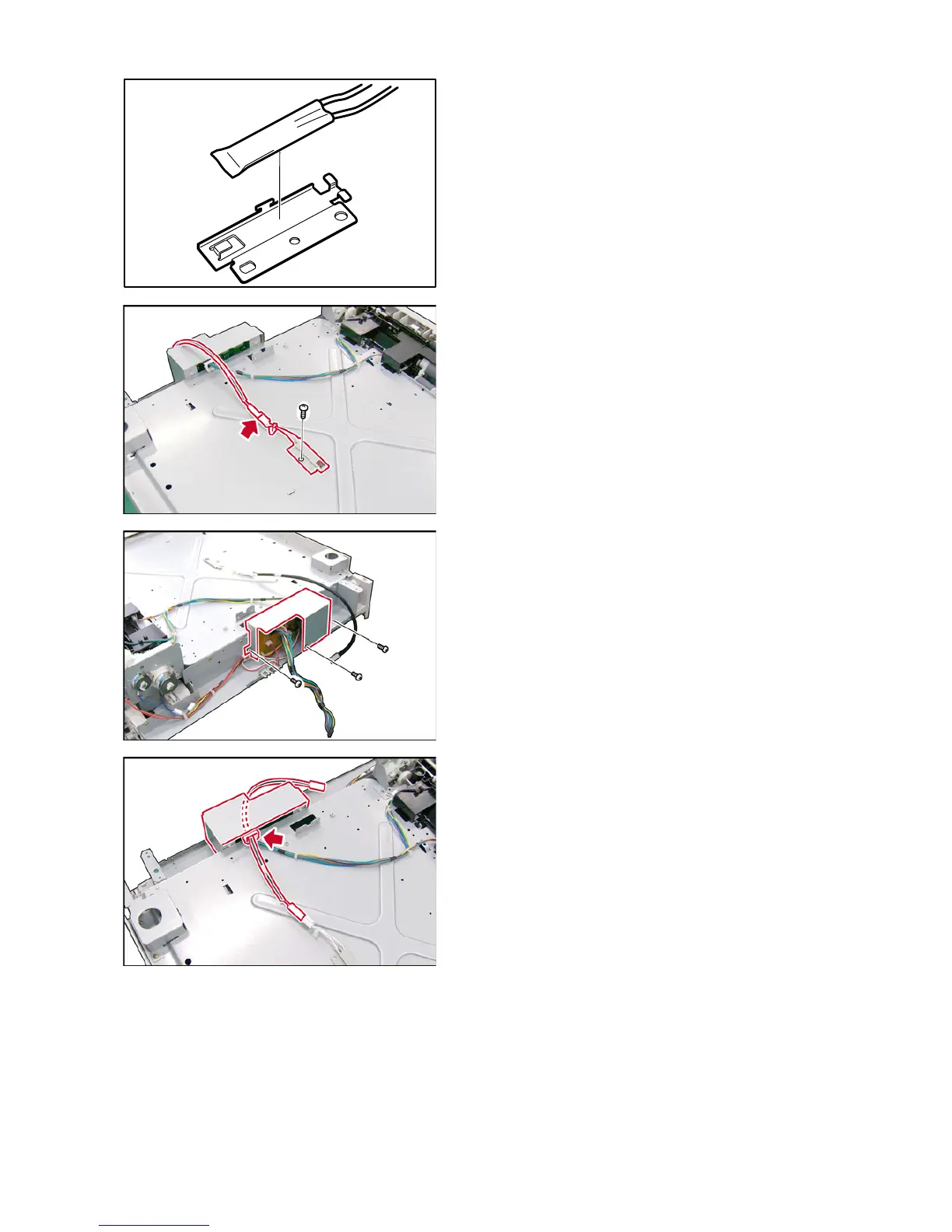

(12) Mount the Heater onto the Heater Bracket.
(13) Install the Heater Assembly.
(14) Secure the Heater Assembly with 1 Screw.
(15) Connect the Heater Assembly to the HT6 Harness.
(16) Install the Harness Clamp.
(17) Insert the HT6 Harness into the Harness Clamp.
(18) Remove 3 Screws.
(19) Remove the Protection Plate.
(20) Route the HT6 Harness and secure it into the
Harness Clamp.
(21) Reinstall the Protection Plate.
