Panasonic DP-C266

14
Chapter 2 Basic Fax Transmission
Chapter 2
Basic Fax Transmission

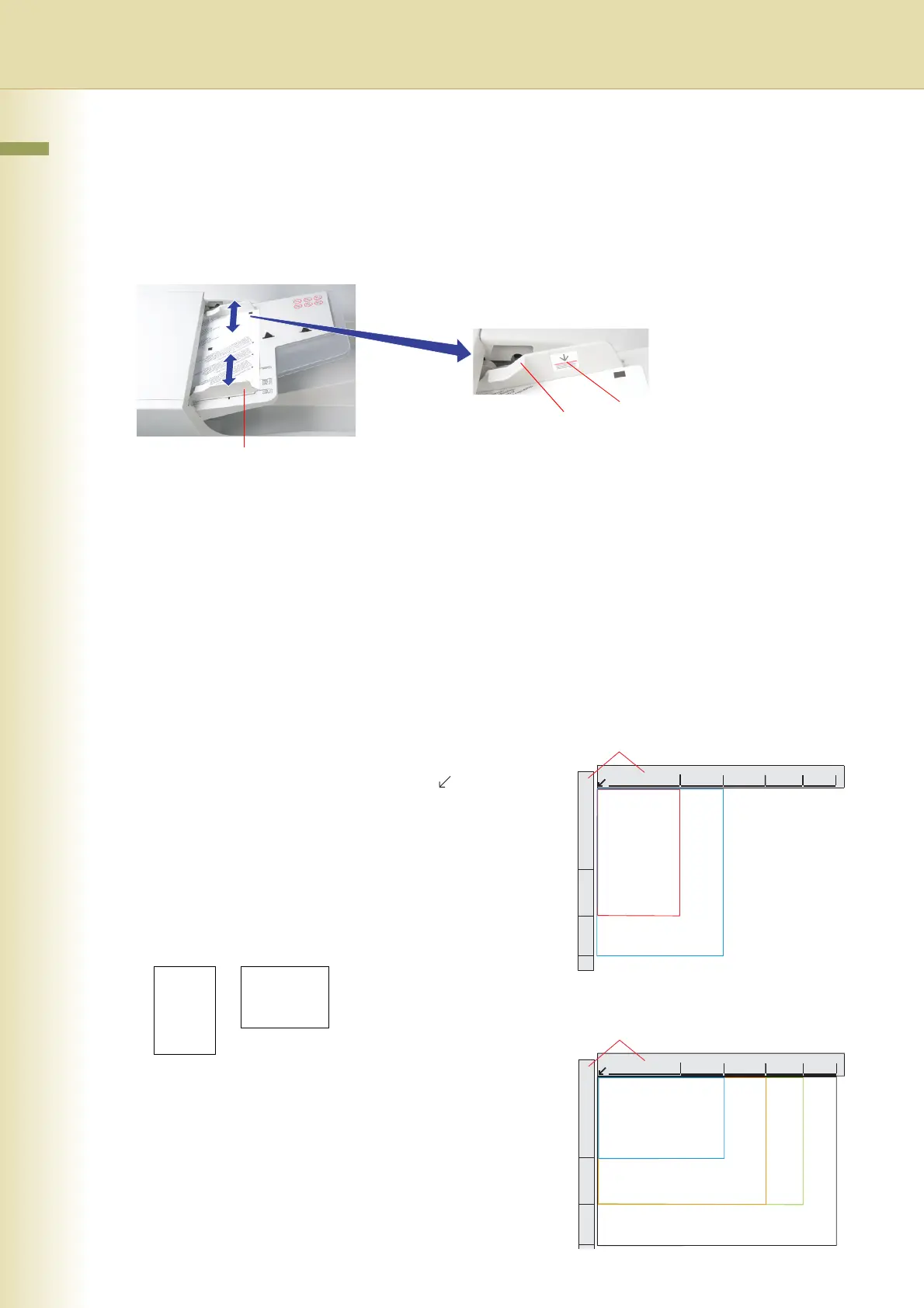

Placing Originals
How to Place Originals
z On the ADF
Notice for ADF
Do not use the following type / flawed originals.
z
Drawing papers, Transparencies, Labeling paper, Heavy weight papers, Thin Art papers, Film, Thermal papers.
z Papers which are curled, ripped, creased, folded, punched, glued, stapled, or self-adhesive.
z Originals of assorted (mixed) width size.
z Pressure sensitive or carbon backed papers.
z Paper which is still wet with color ink or white-out.
z On the Platen Glass
Notice for Platen Glass
Align the original to the top left corner mark ( ).
z If the original is not positioned properly, a portion of the
original may not be scanned.
z For originals smaller than 5.5" x 8.5" (Invoice) size,
position the original within the 5.5" x 8.5" area and select
5.5" x 8.5".
Original Orientation
Ex: 5.5" x 8.5"
Originals can be set up to
the Upper Limit Indicator.
Upper Limit Indicator
Upper Guide
Original Guides
Adjust the Original Guides to
the original’s width.
5.5"
8.5"
11"
Legal
17"
11"
8.5"
Legal
5.5"
8.5" x 11" (Letter-R)
8.5" x 14" (Legal)
11" x 17" (Ledger)
5.5" x 8.5" (Invoice-R)
5.5"
8.5"
11"
Legal
17"
11"
8.5"
Legal
5.5"
5.5" x 8.5" (Invoice)
8.5" x 11" (Letter)
For Portrait Orientation
Original Guides
For Landscape Orientation
Original Guides
5.5" x 8.5"
(Invoice)
5.5" x 8.5"
(Invoice-R)
A
A
