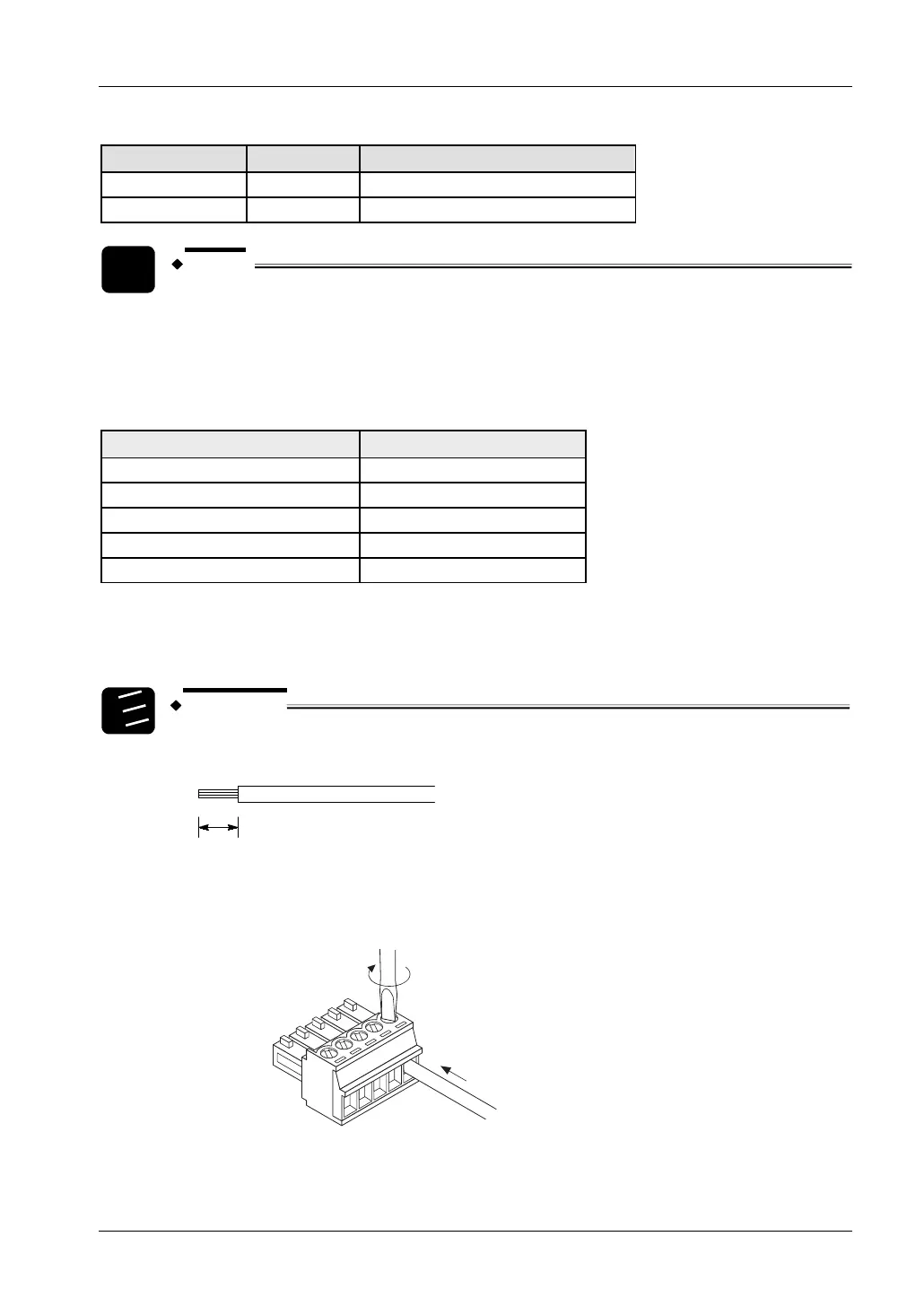

FPΣ User's Manual
6.7 Wiring the Communication Cassette
93
Suitable wire
No. of wires Size Cross-sectional area [mm
2
]
1 AWG28–16 0.08–1.25
2 AWG28–18 0.08–0.75
NOTE
• Only use shielded twisted pair cables.
• It is recommended to ground the shielded part.
Pole terminals with compatible insulation sleeve
For pole terminals, please consider the following specifications:
Cross-sectional area [mm
2
] Size
0.25 AWG24
0.50 AWG20
0.75 AWG18
1.00 AWG18
0.5 x 2 AWG20 (for 2 pieces)
The tightening torque should be 0.22–0.25Nm or less. Use a screwdriver with a blade size of
0.4 x 2.5.
Wiring method
1.
2.
3.
Procedure
1. Remove a portion of the wire's insulation
7mm
2. Insert the wire into the terminal block until it contacts the back of the socket
3. Turn the screw clockwise to fix the wire in place
To Next Page
