7.3 High-Speed Counter Function
115

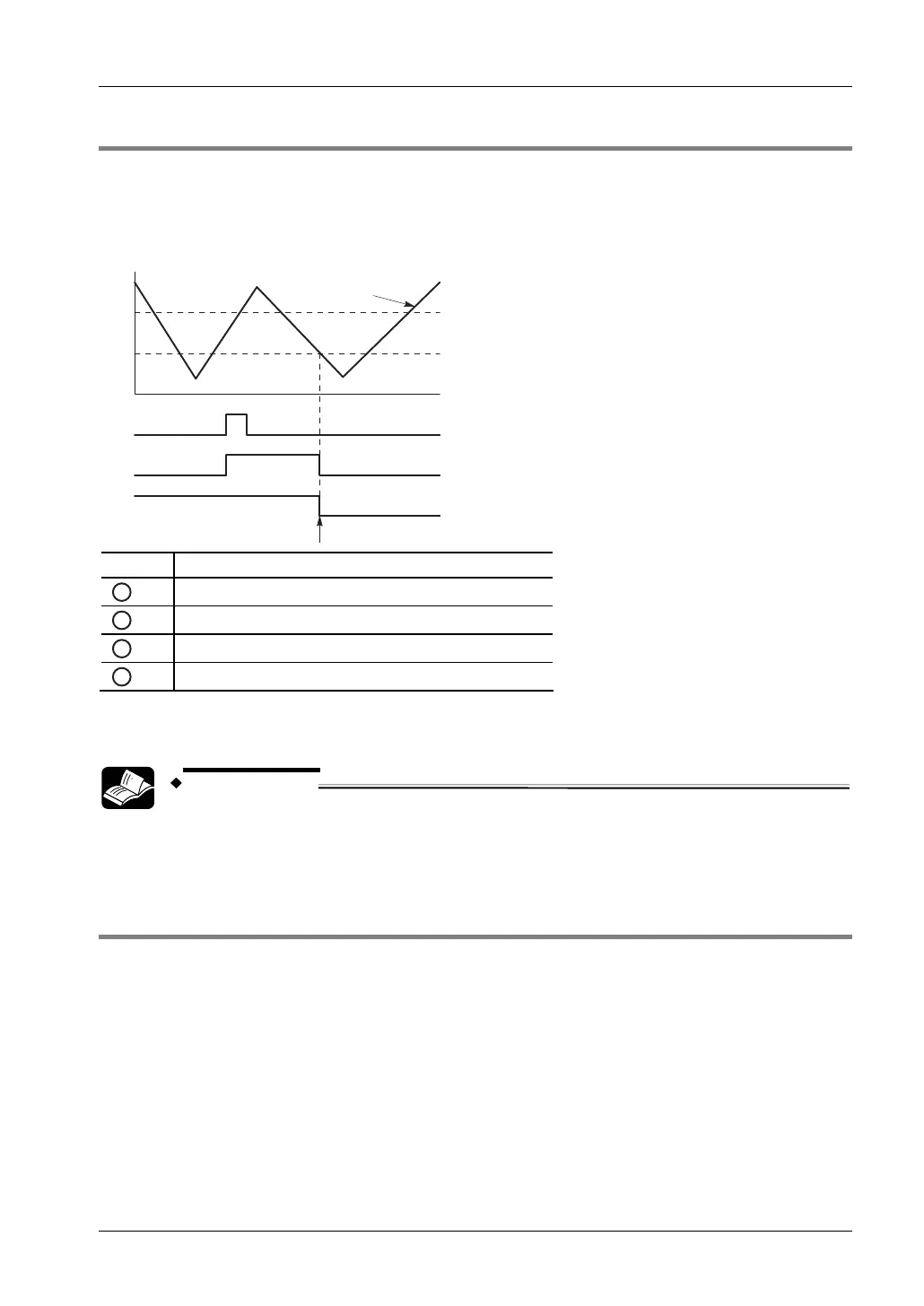

7.3.4.4 F167_HighSpeedCounter_Reset, Target Value Match OFF
If the elapsed value of the high-speed counter matches the target value, an interrupt process
immediately turns the specified output to FALSE.
Characteristics of target value match OFF control
1
2
4
3
0
-200
-200 Target value
1
Elapsed value of high-speed counter
2
Execution condition
3
High-speed counter control flag
4
PLC output
The PLC output turns to FALSE when the elapsed value matches the target value. In addition, the high-speed
counter control flag turns to FALSE and the instruction is deactivated.
REFERENCE
Please refer to the FPWIN Pro online help for details and a programming
example.
7.3.5 Sample Programs
The following programming examples demonstrate how to make control code settings and
how to use the high-speed counter instructions.
The FPWIN Pro projects in LD and ST code can be downloaded from the Panasonic Web site
(
http://www.panasonic-electric-works.com/peweu/en/html/22164.php).
The programming examples for this chapter can be found in
pe_63403_0001_sample_high_speed.zip.
These examples can be used with different PLC types. Therefore you have to adapt the PLC
type in the FPWIN Pro Navigator.
