6.1.5 Connecting FP0 Expansion Units
The expansion units are connected to the right side of the CPU. Use the expansion connector
and the expansion hooks on the side of the unit.
1.
2.
3.

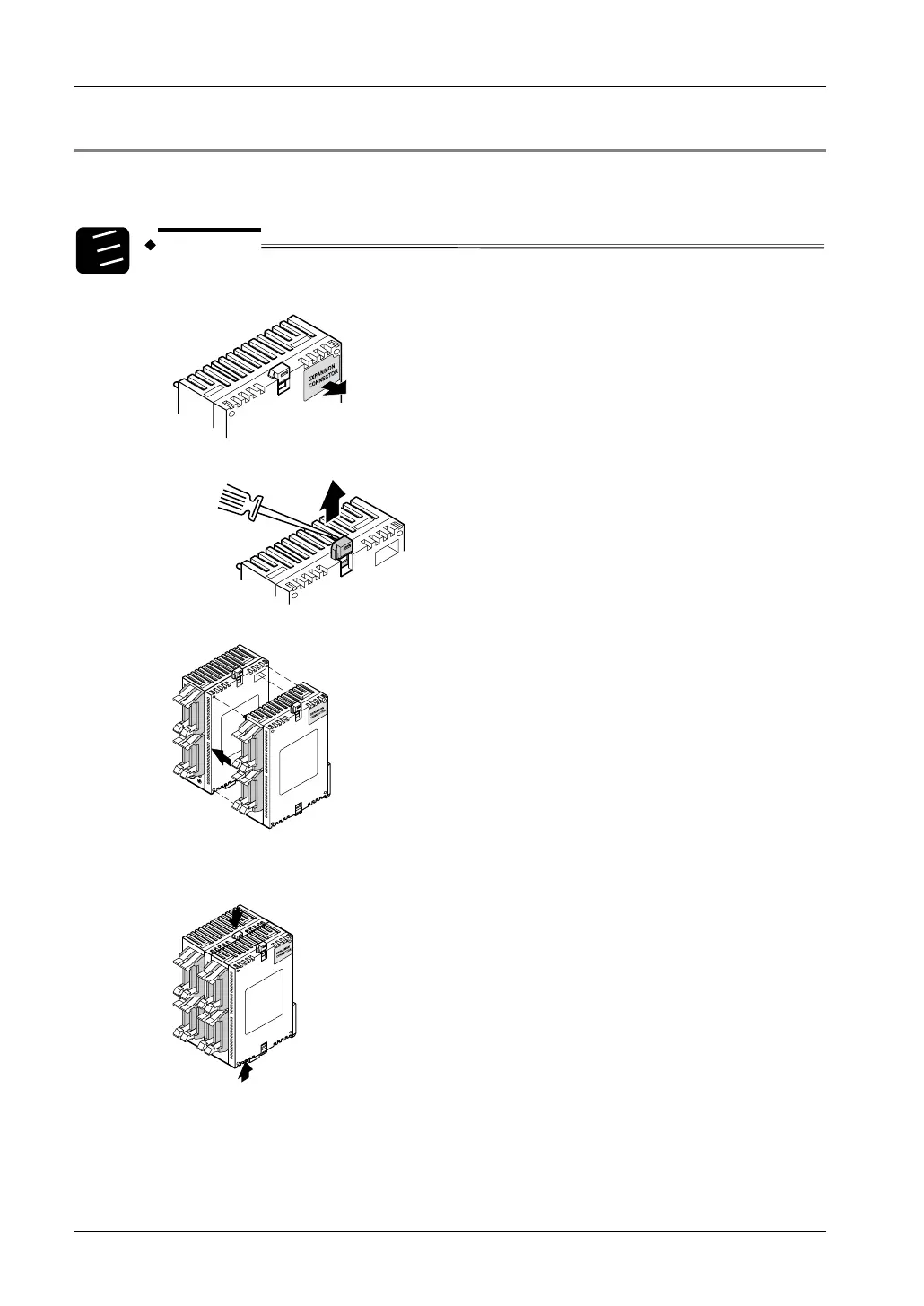

Procedure
1. Peel seal on right side of the unit to expose expansion connector
2. Raise expansion hooks on top and bottom of the unit
3. Align pins and holes in all four corners
4. Insert pins into holes so that there is no gap between units
5. Push expansion hooks back into place
You can now add up to two more units in the same manner.
