High-Speed Counter and Pulse Output
FPΣ User's Manual
132
7.4.3.6 F174_PulseOutput_DataTable, Data Table Control
This instruction performs rectangular control according to the parameters in the specified DUT
with an arbitrary number of different speeds and target values. Pulses are output from the
specified channel when the control flag for this channel is FALSE and the execution condition
is TRUE.

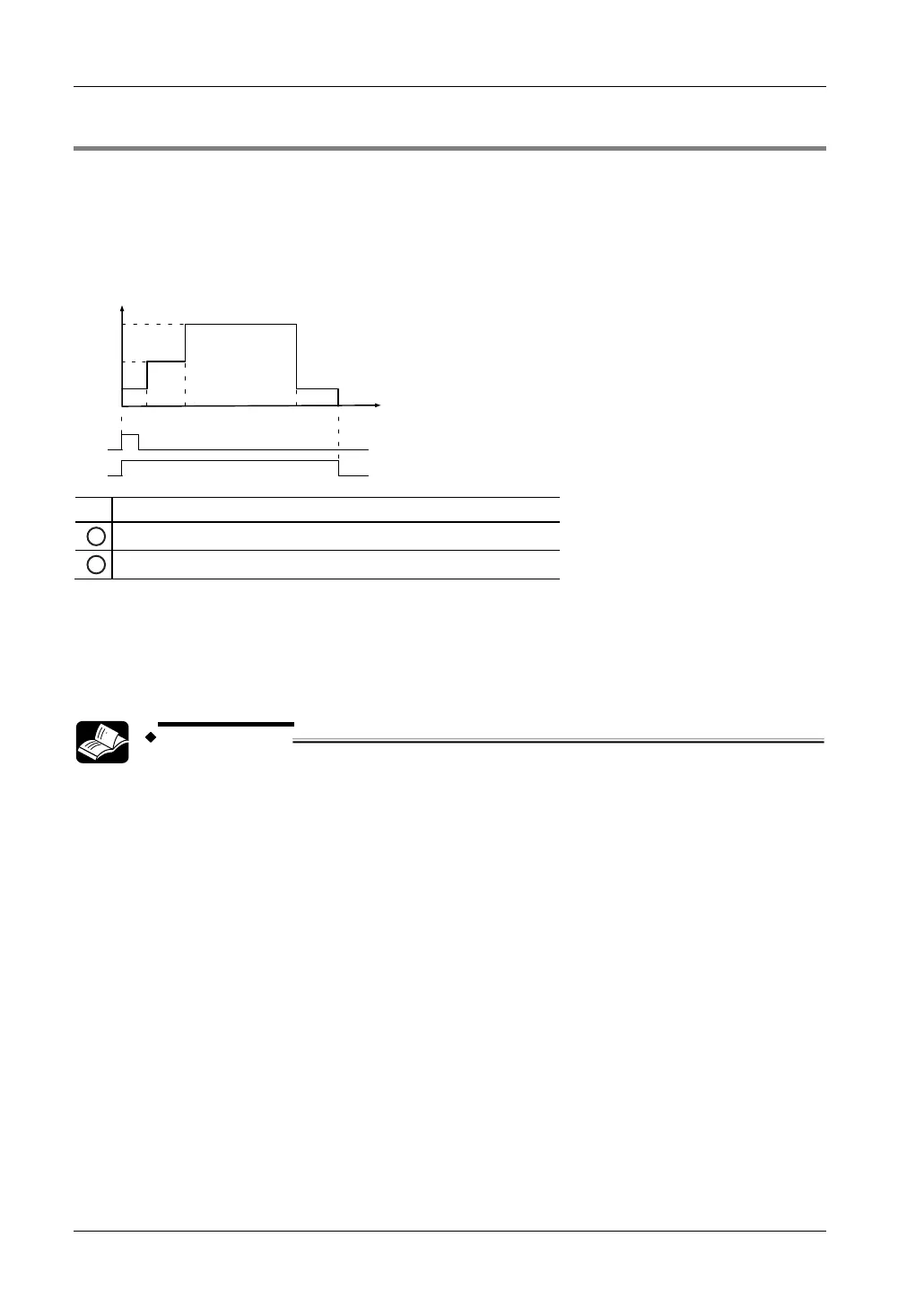

Pulse output characteristics
1000
2500
5000
x
f [Hz]
1000 3000
8000 100000
1
2
x
Elapsed value of high-speed counter
1
Execution condition
2
Pulse output control flag
• Pulses are output at the specified frequency until the target value is reached. Then the
frequency changes to the second frequency value and pulse output continues until the
second target value is reached, and so forth.
• Pulse output stops when the last target value is reached.
REFERENCE
Please refer to the FPWIN Pro online help for details and a programming
example.
