Installation and Wiring
FPΣ User's Manual
68
6.1.2 Using DIN Rails
The CPU can be easily attached to DIN rails.
1.
2.
3.
Procedure
2
EXPANSION
CONNECTOR
1

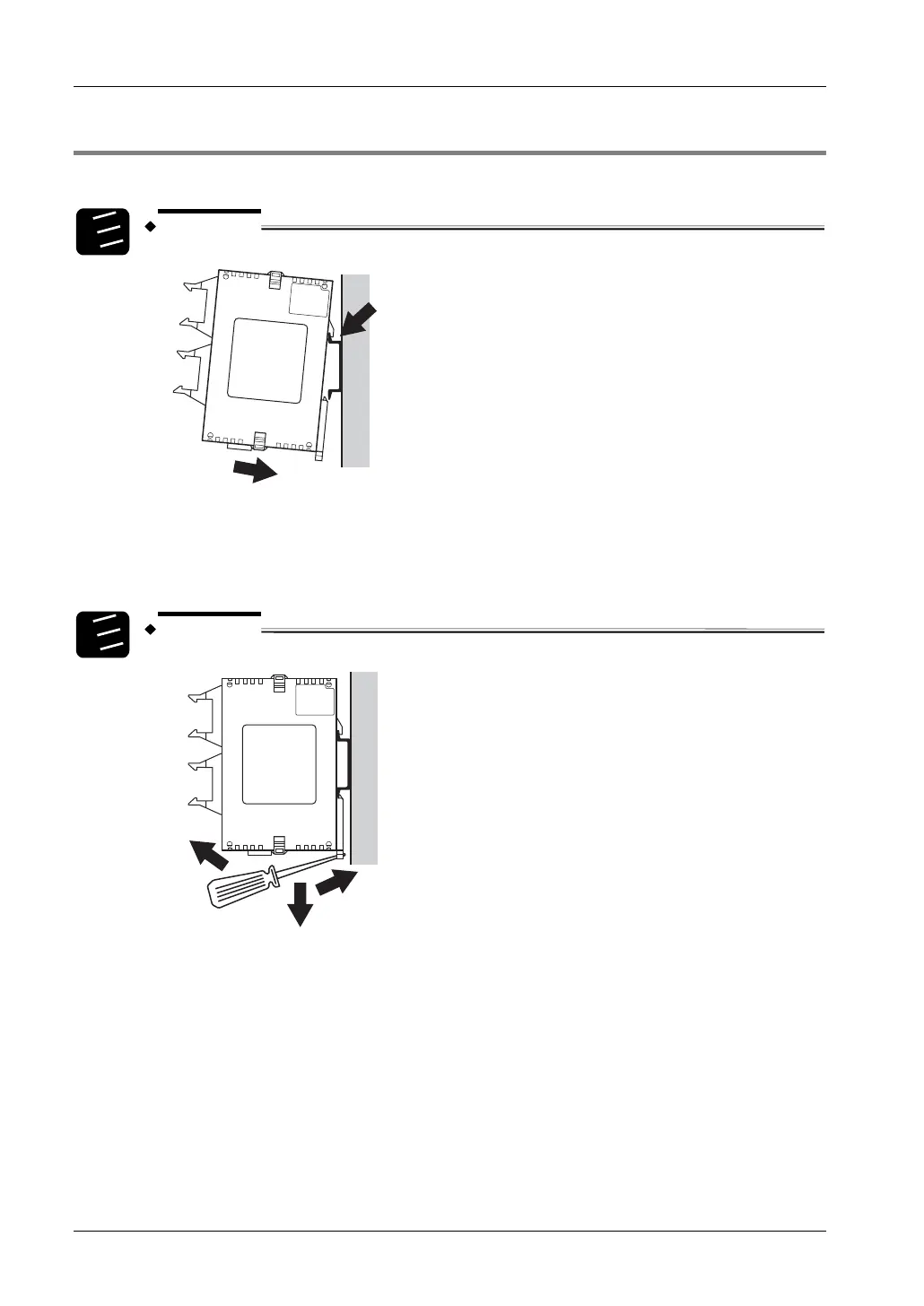

1. Fit upper hook of unit onto DIN rail
2. Without moving upper hook, press on lower hook to fit unit into position
Removal is very simple, too:
1.
2.
3.
Procedure
EXPANSION
CONNECTOR
1
2
3
1. Insert slotted screwdriver into DIN rail attachment lever
2. Pull attachment lever downwards
3. Lift up unit and remove from rail
