FPΣ User's Manual
6.1 Installation
71

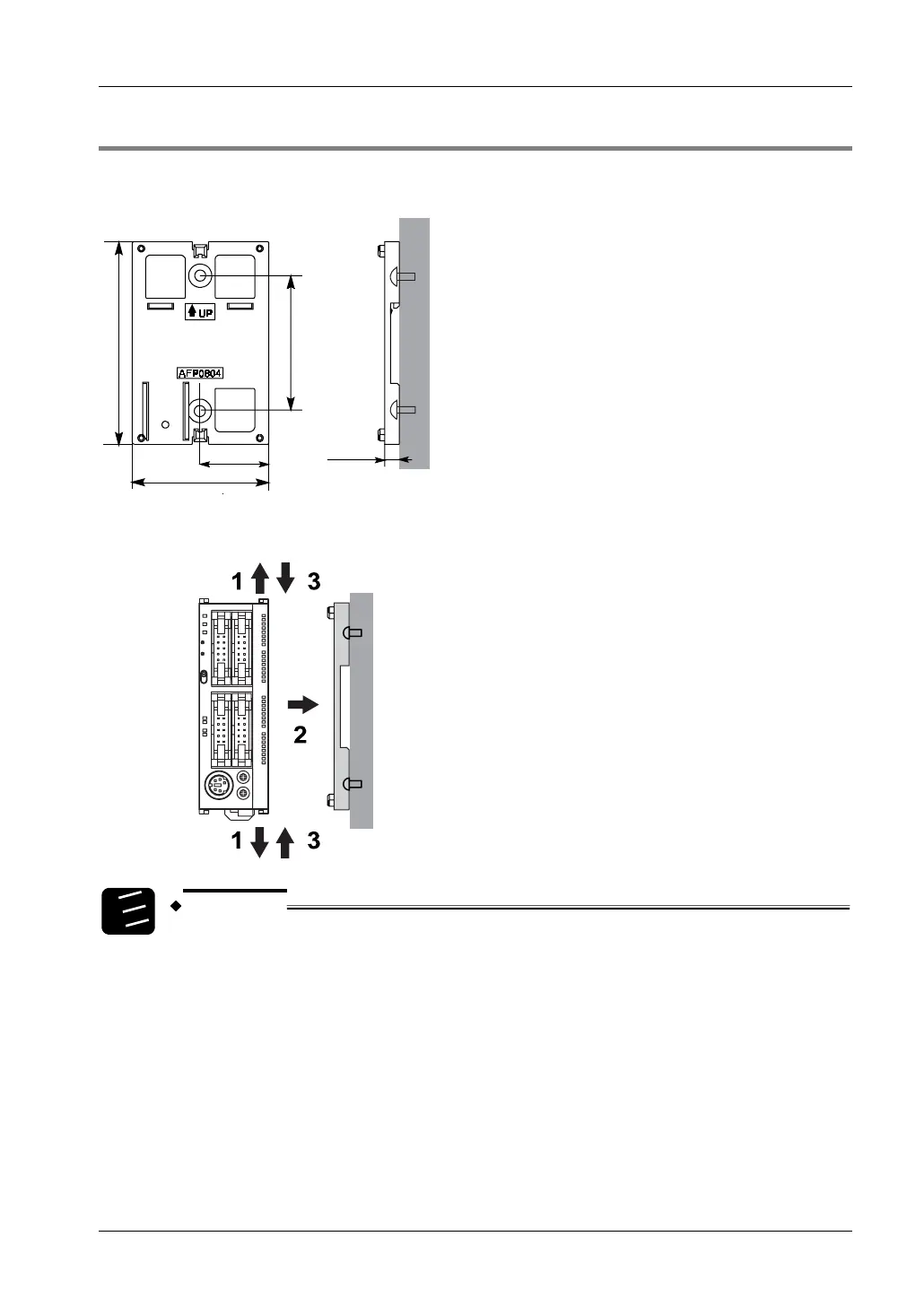

6.1.3.2 Flat Type Mounting Plate
The flat type mounting plate (AFP0804) should only be used with a stand-alone CPU. It
should not be used if an expansion unit is attached to the CPU.
45mm
60.0mm
90.0mm
6.2mm
60.0mm
Installation
1.
2.
3.
Procedure
1. Raise expansion hooks on top and bottom of the unit
2. Press unit on mounting plate and align expansion hooks with plate
3. Push expansion hooks back into place
