FPΣ User's Manual
7.4 Pulse Output Function
131
7.4.3.5 F172_PulseOutput_Jog, JOG Operation
This instruction is used for JOG operation. Pulses are output from the specified channel when
the control flag for this channel is FALSE and the execution condition is TRUE.

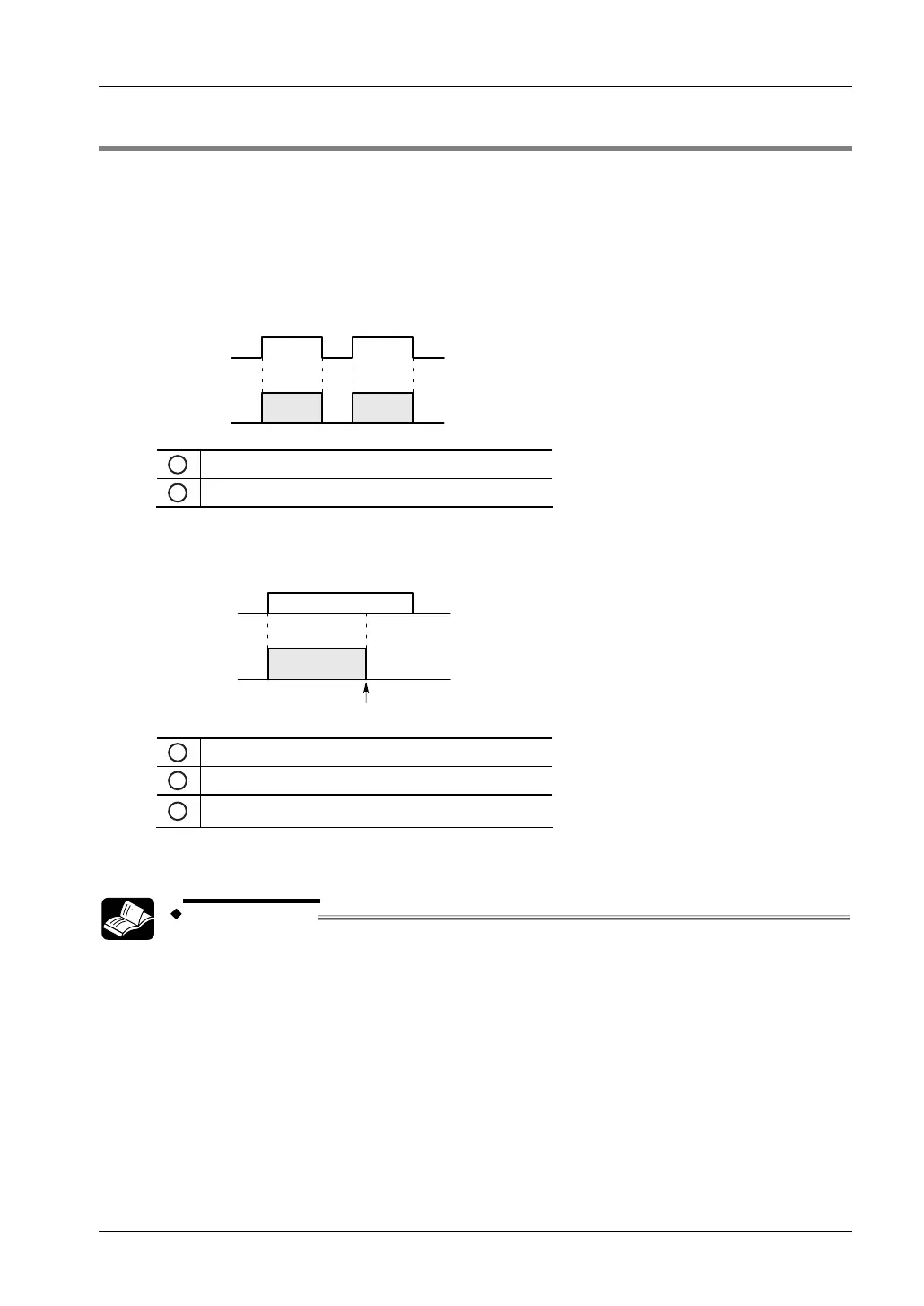

Pulse output characteristics
Select one of two different operation modes:
• Mode with no target value (type 0): Pulses are output in accordance with the
conditions set in the DUT as long as the execution condition is TRUE.
300Hz
0Hz
TRUE
FALSE
1
Execution condition
2
CW pulse output
• Target value match stop mode (type 1): Output stops when the target value is
reached. Set this mode in the control code, and specify the target value (an absolute
value) in the DUT. (FPΣ V1.4 or higher)
300Hz
0Hz
TRUE
FALSE
1
Execution condition
2
CW pulse output
3
Target value reached (pulse output stops)
REFERENCE
Please refer to the FPWIN Pro online help for details and a programming
example.
