2.3.2 FPΣ Expansion Units

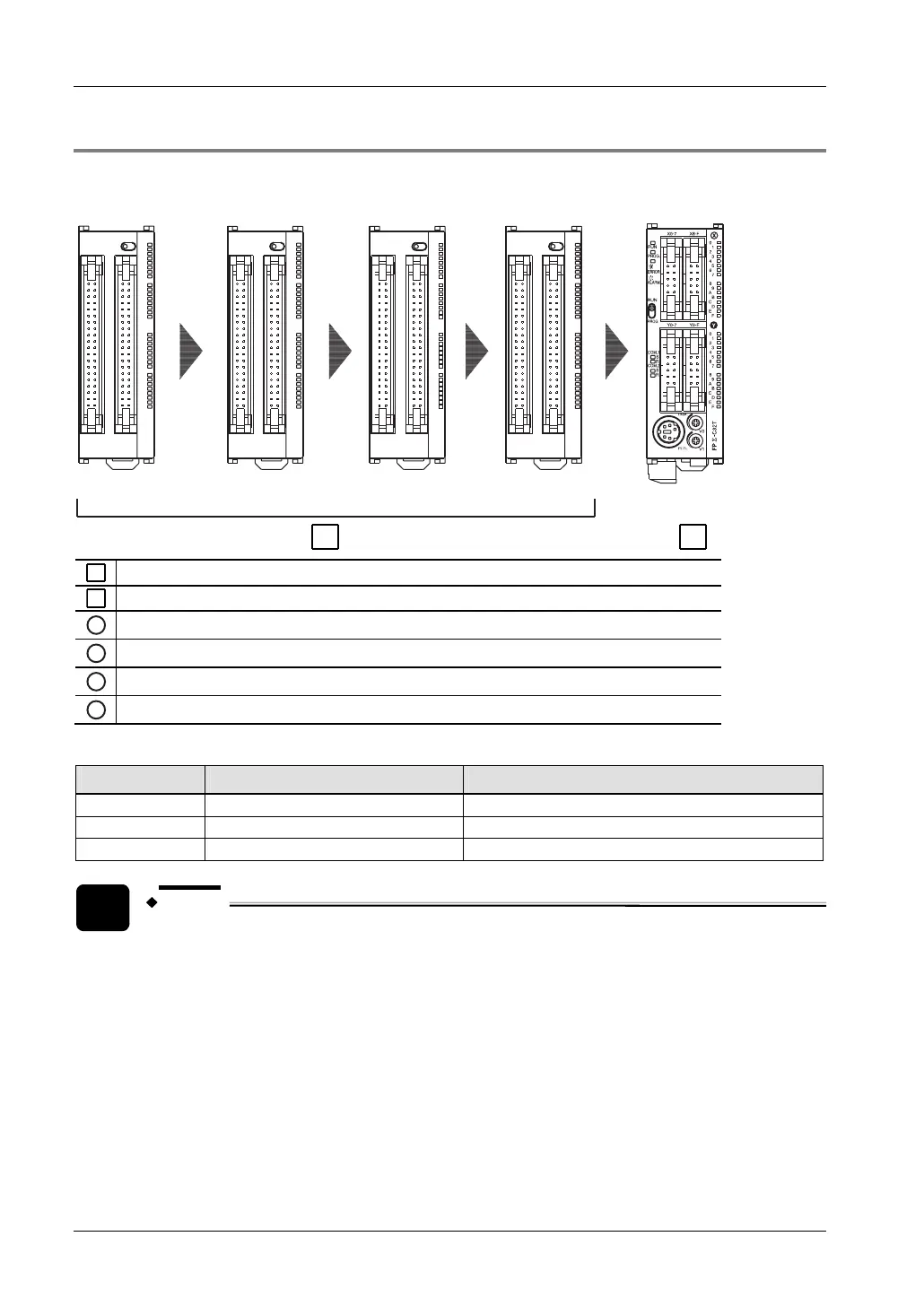

A maximum of four dedicated FPΣ I/O expansion units can be connected on the left side of
the FPΣ CPU. The 64-point expansion unit has 32 inputs and 32 transistor outputs.

AB
A
FPΣ CPU
B
Maximum expansion: 4 units
1
Expansion unit 1
2
Expansion unit 2
3
Expansion unit 3
4
Expansion unit 4
Maximum number of I/O points
CPU type CPU
Using FPΣ expansion units
FPG-C32x 32 288
FPG-C28x 28 284
FPG-C24x 24 280

NOTE
If both FP0 and FPΣ expansion units are used, the number of input and output
points can be expanded to a maximum of 384 points for FPG-C32x.
