7.4 Pulse Output Function
141
if the value is smaller than 22000, the pulses are output from the CW pulse output.
(The outputs are used implicitly by F171_PulseOutput_Trapezoidal.)
10000 22000
30000
0V (24V DC)
A
( - ) ( + )
C
B
D
Regardless of the current value, the moving table moves towards position 22000.
1
X8 Positioning start (+)
2
Y0 CW pulse output
A
PLC
3
Y1 CCW pulse output
B
Motor driver
C
Stepping motor
(+) + side
D
Moving table
(-) - side

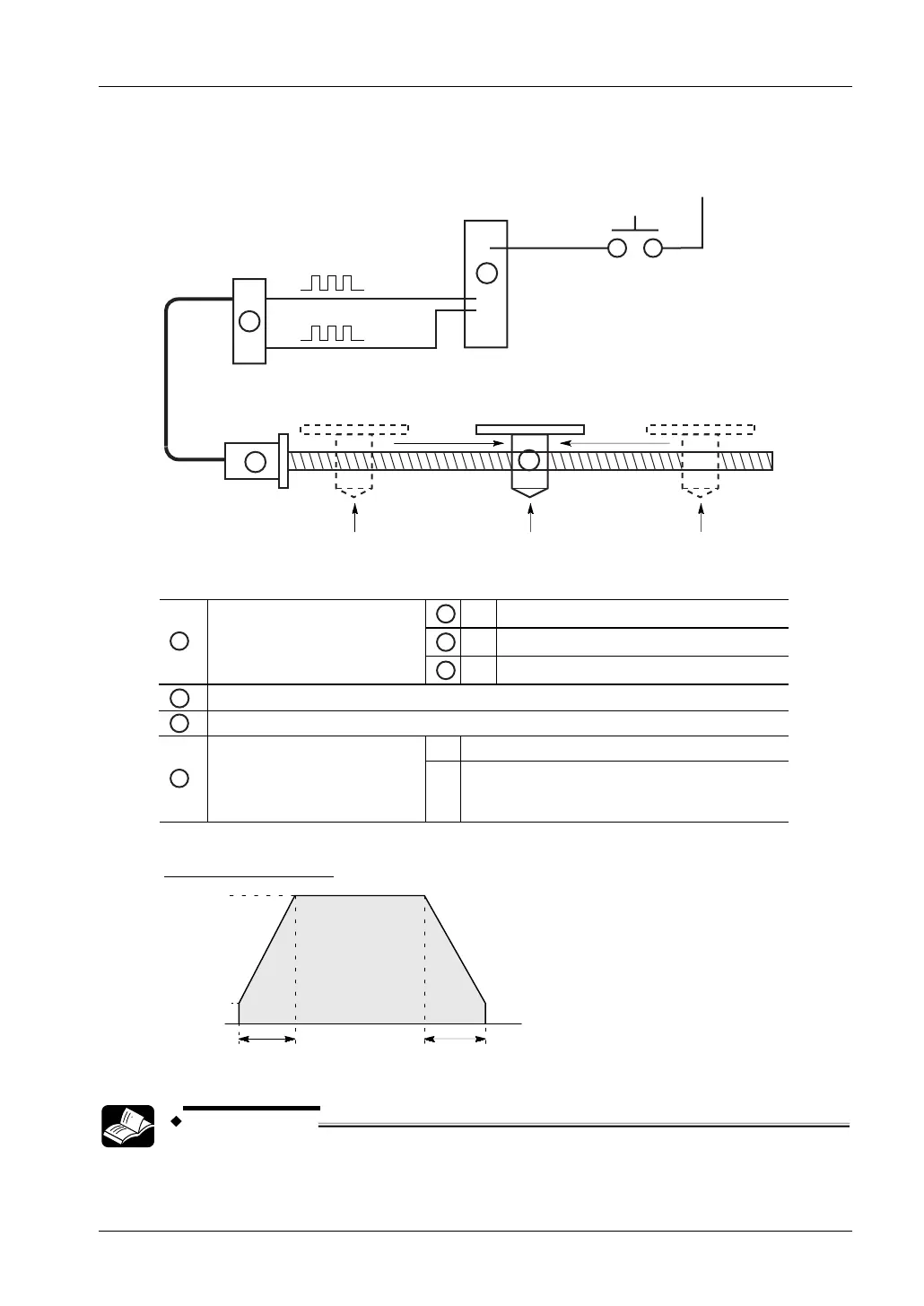

Pulse output diagram
150Hz 150Hz
4000Hz
200Hz
0Hz
REFERENCE
For POU Header and POU Body, please see the programming examples in
Panasonic's download area.
