Cross Reference:
Power Supply Circuit (P.58)
Reset Circuit (P.60)
Note:
Flash Memory is IC601.
DSP is IC501.
(*1) Refer to “SPECIFICATION” on cover page for part
number and supply voltage of AC adaptor.

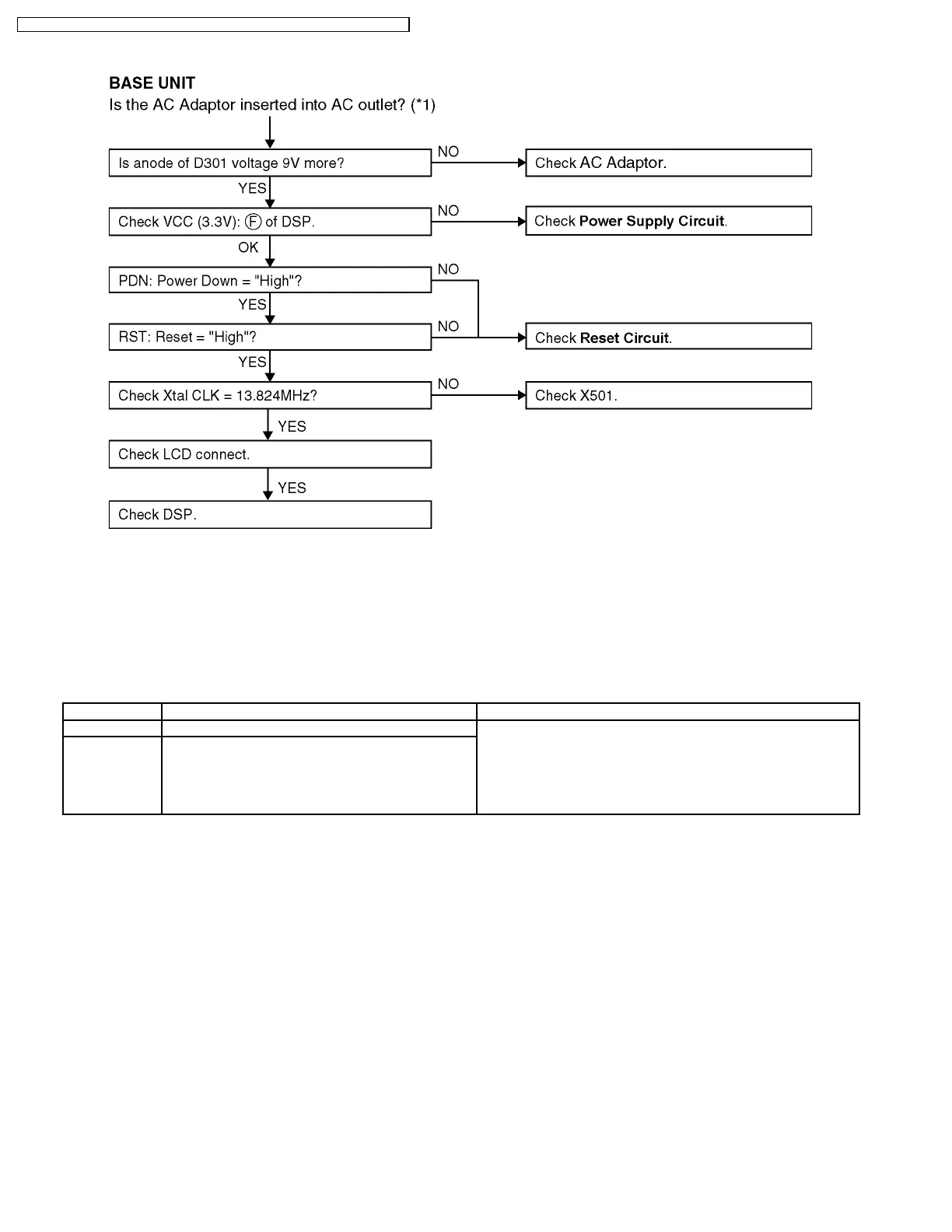

7.1. Check Power
7.2. Error Message Table
Display Symptom Remedy
E1 The initialization was tried, but it could not be done. 1. Check the peripheral circuit of Flash Memory visually.
2. Confirm that the voltage is added to the power supply pin.
If no voltage is detected, replace the Flash Memory because it
might be defect.
3. Solder the Flash Memory again.
E3
E9
When the adjustment data was checked, an error was
detected. (The adjustment data may not be written.)
Note:
Flash Memory is IC601.
DSP is IC501.
26
KX-TG5631S / KX-TG5632M / KX-TG5633B / KX-TGA560S / KX-TGA560M / KX-TGA560B
