Panasonic KX-TG5631S

Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production, the
item will continue to be available for a specific period of
time. The retention period of availability depends on the
type of assembly and the laws governing parts and product
retention.
At the end of this period, the assembly will no longer be
available.
2. Important safety notice
Components identified by the
mark indicates special
characteristics important for safety. When replacing any of
these components, only use specified manufacture´s parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.

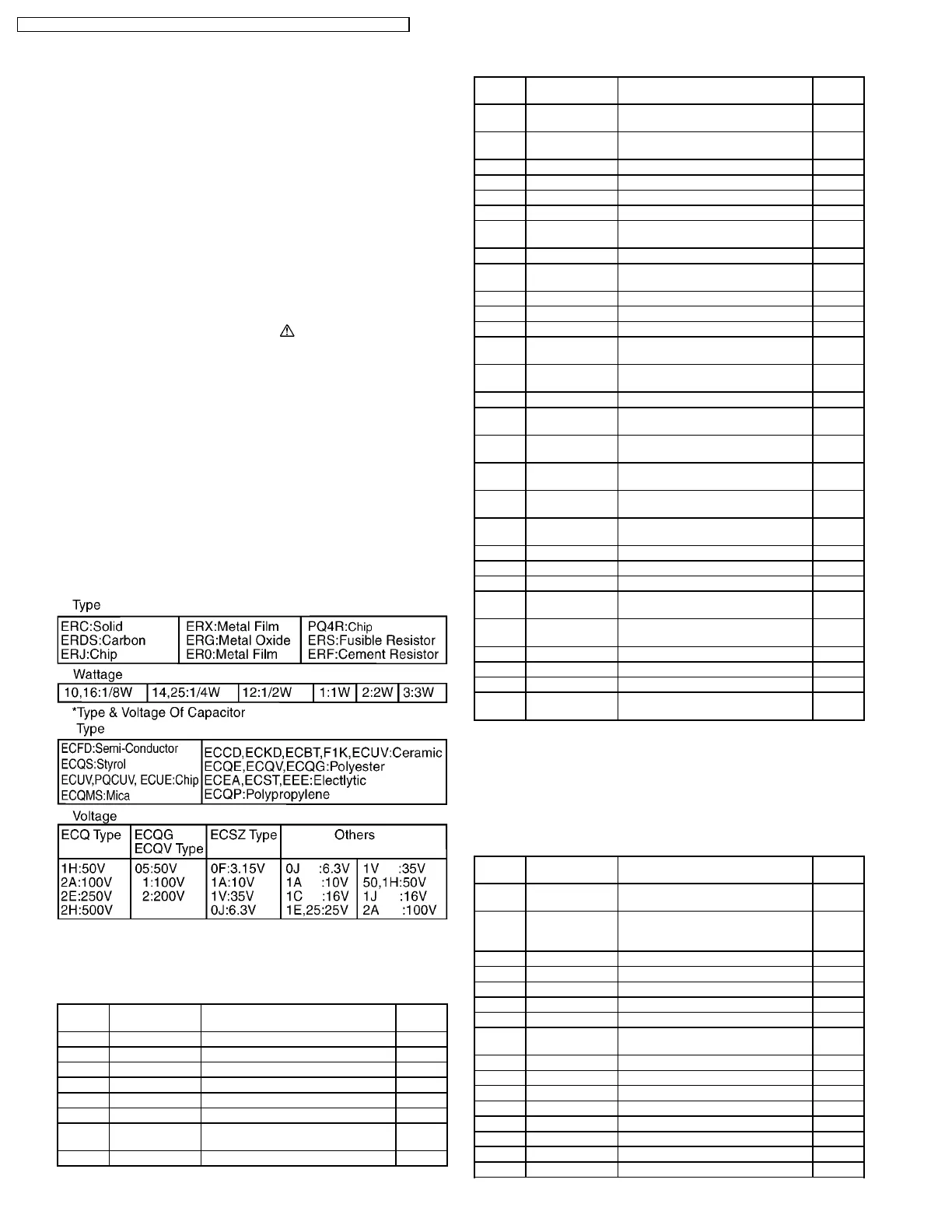

5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF) P=µµF
*Type & Wattage of Resistor
29.1. Base Unit
29.1.1. Cabinet and Electrical Parts
Ref.
No.
Part No. Part Name & Description Remarks
1 PQGG10279X1 GRILLE, LCD (for KX-TG5631S) ABS-HB
1 PQGG10279X2 GRILLE, LCD (for KX-TG5632M) ABS-HB
1 PQGG10279X3 GRILLE, LCD (for KX-TG5633B) ABS-HB
2 PQGP10273Y5 PANEL, LCD (for KX-TG5631S) AS-HB
2 PQGP10273Y6 PANEL, LCD (for KX-TG5632M) AS-HB
2 PQGP10273Y7 PANEL, LCD (for KX-TG5633B) AS-HB
3 PQHS10659Z TAPE, DOUBLE SIDED (LCD
PANEL)
4 PQQT23139Z LABEL, CHARGE
Ref.
No.
Part No. Part Name & Description Remarks
5 PQGG10278V5 GRILLE, CRADLE (for KX-
TG5631S)
PC-HB
5 PQGG10278V2 GRILLE, CRADLE (for KX-
TG5632M) (for KX-TG5633B)
PC-HB
6 PQKM10726Z1 CABINET BODY (for KX-TG5631S) PS-HB
6 PQKM10726X2 CABINET BODY (for KX-TG5632M) PS-HB
6 PQKM10726V5 CABINET BODY (for KX-TG5633B) PS-HB
7 PQSA10157V ANTENNA (R) (for KX-TG5631S)
7 PQSA10157U ANTENNA (R) (for KX-TG5632M)
(for KX-TG5633B)
8 PQSA10158V ANTENNA (L) (for KX-TG5631S)
8 PQSA10158U ANTENNA (L) (for KX-TG5632M)
(for KX-TG5633B)
9 L0AA04A00028 SPEAKER
10 PQHR11082Z GUIDE, SP HOLDER POM-HB
11 PQWE10037Z BATTERY TERMINAL PS-HB
12 PQBC10423Z4 BUTTON, MESSAGE (for KX-
TG5631S) (for KX-TG5632M)
AS-HB
12 PQBC10423Z5 BUTTON, MESSAGE (for KX-
TG5633B)
AS-HB
13 PQHR11094Z GUIDE, MESSAGE BUTTON ABS-HB
14 PQHR11095Z OPTIC CONDUCTIVE PARTS, LED
LENS (ANSWER ON)
PS-HB
15 PQHR11096Z OPTIC CONDUCTIVE PARTS, LED
LENS (CHARGE)
PS-HB
16 PQSX10283T KEYBOARD SWITCH (for KX-
TG5631S)
16 PQSX10283S KEYBOARD SWITCH (for KX-
TG5632M)
16 PQSX10283Q KEYBOARD SWITCH (for KX-
TG5633B)
17 PQMG10025Z RUBBER PARTS, MIC
18 PQHA10023Z RUBBER PARTS, FOOT CUSHION
19 PQHA10017Z RUBBER PARTS, LEG CUSHION
20 PQYF10603Z1 CABINET COVER (for KX-
TG5631S)
PS-HB
20 PQYF10603Z4 CABINET COVER (for KX-
TG5632M) (for KX-TG5633B)
PS-HB
21 PQGT18455Z NAME PLATE (for KX-TG5631S)
21 PQGT18460Z NAME PLATE (for KX-TG5632M)
21 PQGT18463Z NAME PLATE (for KX-TG5633B)
22 PQXDZLDRS1 LABEL, SECURITY TAG (for KX-
TG5631S)
29.1.2. Main P.C. Board Parts
Note:
(*1) When you have replaced IC501 or IC601, adjust X501.
Refer to Check and Adjust X501 (Base Unit) Frequency
(P.46).
Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PQWP1TG5631H MAIN P.C.BOARD ASS´Y (RTL)
(for KX-TG5631S)
PCB1 PQWP1TG5632H MAIN P.C.BOARD ASS´Y (RTL)
(for KX-TG5632M) (for KX-
TG5633B)
(ICs)
IC300 C0DBAGZ00023 IC S
IC331 C0DBFGD00017 IC
IC501 C2HBBY000024 IC (*1)
IC601 PQWITG5631SH IC (for KX-TG5631S) (*1)
IC601 PQWITG5632MH IC (for KX-TG5632M) (for KX-
TG5633B) (*1)
IC701 C1CB00001657 IC
IC761 C0CBAAC00083 IC
IC801 C1CB00001682 IC
IC841 C0CBABE00029 IC
IC851 C1CB00002281 IC
(TRANSISTORS)
Q111 2SD1819A TRANSISTOR(SI)
Q141 B1ADGP000008 TRANSISTOR(SI)
29 REPLACEMENT PARTS LIST
96
KX-TG5631S / KX-TG5632M / KX-TG5633B / KX-TGA560S / KX-TGA560M / KX-TGA560B
