Cross Reference:
Power Supply Circuit (P.58)
Note:
Flash Memory is IC601.
DSP is IC501.

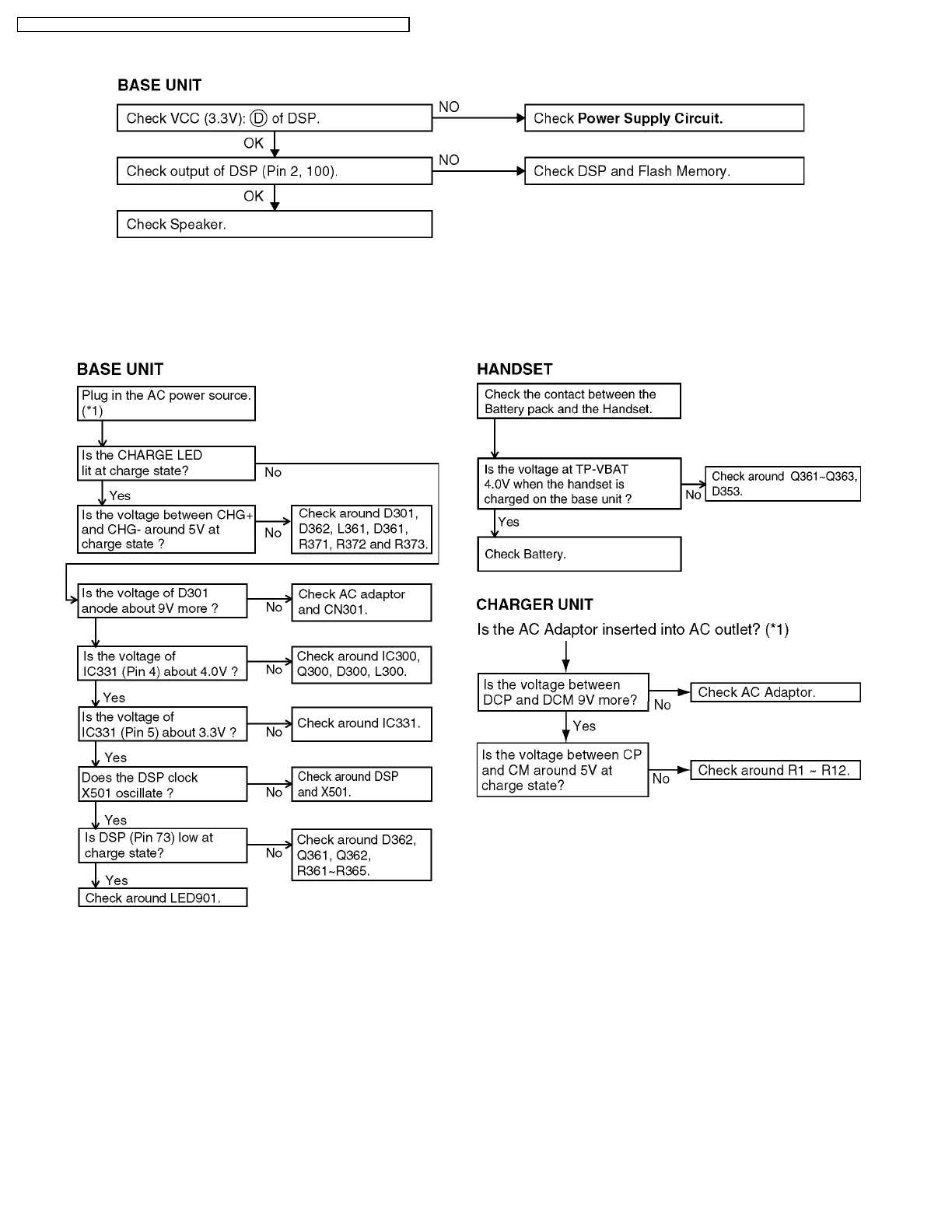

7.4. Check Playback
7.5. Check Battery Charge
Note:
Flash Memory is IC601.
DSP is IC501.
(*1) Refer to “SPECIFICATION” on cover page for part number and supply voltage of AC adaptor.
28
KX-TG5631S / KX-TG5632M / KX-TG5633B / KX-TGA560S / KX-TGA560M / KX-TGA560B
