Panasonic KX-TG5631S

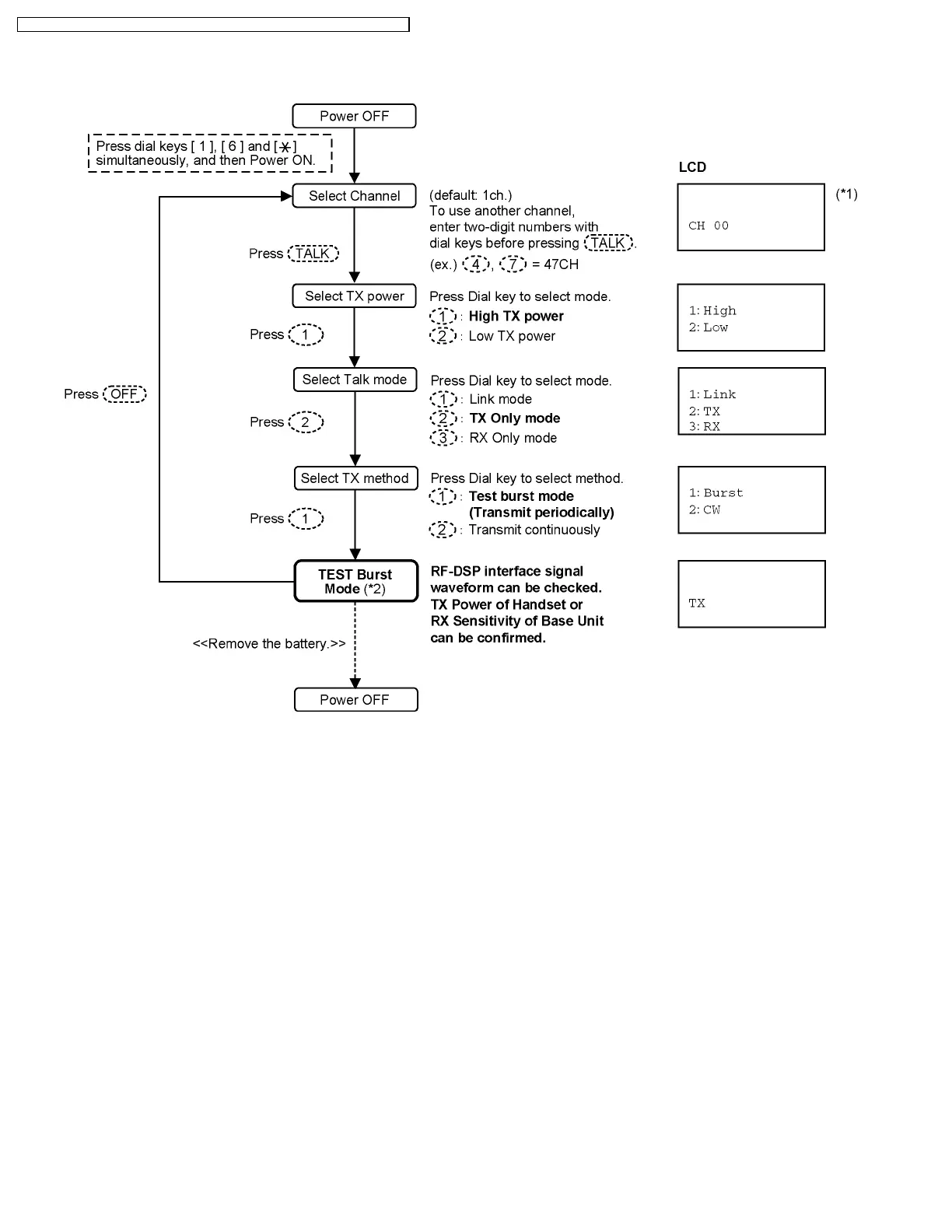

8.2. Test Mode Flow Chart for Handset
8.2.1. Test Burst Mode
Note:
(*1) LCD displays the Channel number.
(exception: default/ CH00 = 1ch.)
(*2) Refer to Check Table for RF part (P.33) and RX-CW Test Mode (P.39) for proper Base Unit settings.
42
KX-TG5631S / KX-TG5632M / KX-TG5633B / KX-TGA560S / KX-TGA560M / KX-TGA560B
