12. Connections with External Devices (Video)
DVQX1961 (ENG)
138
Attaching the Cable Holder
Use of the supplied cable holder prevents detachment of the cable and
damage to the terminals.
0
Put the camera on a stable surface to perform this task.
1

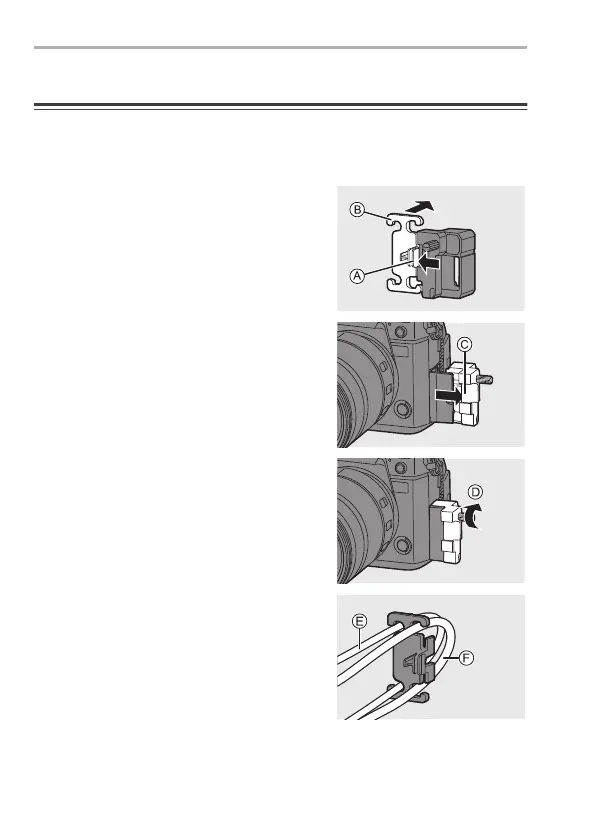

While pushing A, slide the clamp
portion B of the cable holder to
remove it.
2
Open the door of the terminal section
and slide the door into the part marked
C.
3
Loosely mount the cable holder to the
mount on the camera, and then rotate
the screws in the direction of the
arrows to secure the cable holder. D
4
Fit the USB connection cable (C–C or
A–C) E and HDMI cable F to the
clamp.
