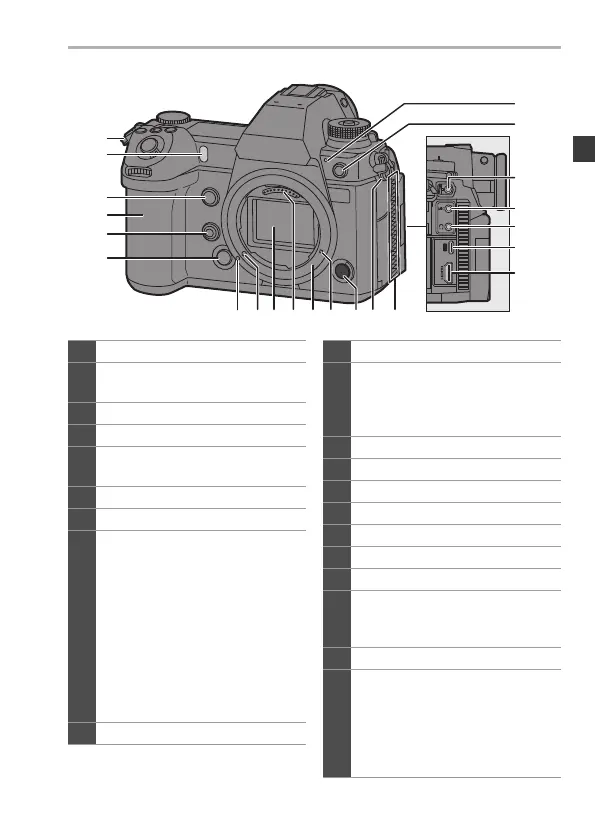

1. Introduction
DVQX1961 (ENG)
21
3
4
6
5
16 17 1918 2015 1 2114
2
1
13
12
11
10
8
7
9
1
Shoulder strap eyelet (l 24)
2
Self-timer light/
AF assist light
3
Fn button (Fn1) (l 153)
4
Grip
5
Preview button/
Fn button (Fn2) (l 153)
6
Lens release button (l 37)
7
Front tally lamp (l 89)
8
Flash synchro socket (flash
synchro socket cap) (l 87)
0 Connect the supplied BNC
conversion cable (for TC IN/
OUT) when synchronising the
time code with an external
device. (l 107)
0 Keep the flash synchro socket
cap out of reach of children to
prevent swallowing.
9 [REMOTE] socket
10
[MIC] socket (l 143)
11
Headphone socket (l 147)
0 Excessive sound pressure from
earphones and headphones can
cause hearing loss.
12
USB port (l 29, 176)
13 [HDMI] socket (l 137, 176)
14
Lens fitting mark (l 37)
15
Lens lock pin
16 Sensor
17
Contact points
18
Mount
19
Screw hole for function expansion
0 This is a hole that will be used in
a future function expansion.
20
Sub video rec. button (l 43, 89)
21
Fan outlet
0
The fan outlet for the cooling fan.
0 Do not obstruct this unit’s
ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
