Panasonic Lumix S1H Series

1. Introduction
DVQX1961 (ENG)
20
7
8
2
3
6
4
1
10
11
12
13
14
15
16
9
5

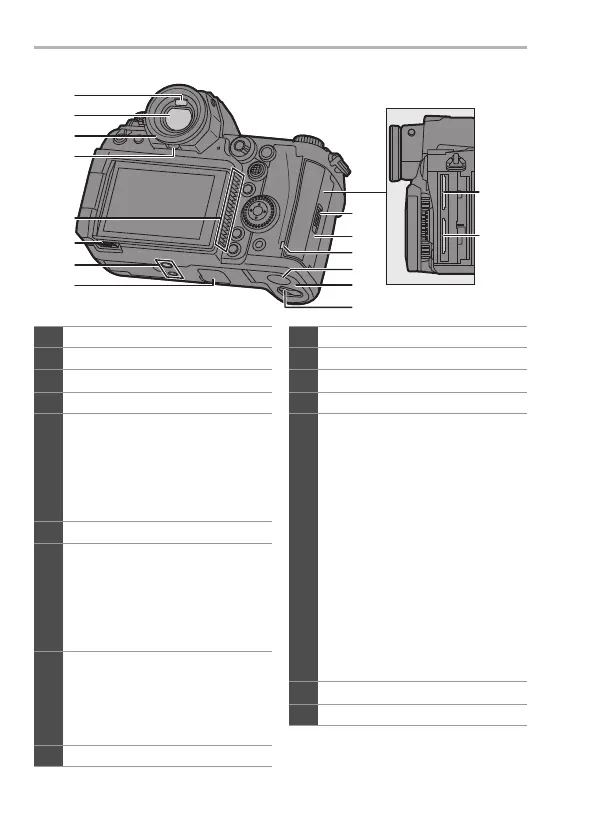

1
Eye sensor (l 49)
2
Viewfinder (l 22, 49, 185)
3
Eye cup
4
Eye cup lock lever
5
Fan inlet
0 The fan inlet for the cooling fan.
0 Do not obstruct this unit’s
ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
6 Monitor lock lever (l 39)
7
Tripod mount
0 If you attempt to attach a tripod
with a screw length of 5.5 mm
(0.22 inch) or more, you may not
be able to securely fix it in place
or it may damage the camera.
8
Battery grip connector (cover for
the battery grip connector)
0 Keep the cover for the battery
grip connector out of reach of
children to prevent swallowing.
9 Card slot 1 (l 35)
10
Card slot 2 (l 35)
11
Card door lock lever (l 35)
12
Card door (l 35)
13
Card access light (l 36)
14
DC Coupler cover
0 When using an AC adaptor,
ensure that the Panasonic DC
Coupler (DMW-DCC16:
optional) and AC Adaptor
(DMW-AC10G: optional) are
used.
0 Always use a genuine
Panasonic AC Adaptor (DMW-
AC10G: optional).
0 When using an AC Adaptor
(optional), use the AC cable
supplied with the AC Adaptor
(optional).
15
Battery door (l 27)
16
Battery door release lever (l 27)
