[Before Using the Products]
Before Using
the Products
X7
X5
X3B
X3A
X4
SP
IM
G
X6
Terminal cover
Screw for cover M3
Screw for cover M3
Display LED (2-digit)
ID address setup
rotary switch (MSD, LSD)
Connector, CN X5
for host connection
Connector, CN X6
for encoder connection
Connector, CN X7
for external scale connection
Connector, CN X4B
(For manufacturers' use only:

Not for individual use)
Connector, CN X4A
(For manufacturers' use only:

Not for individual use)
Communication
connector, CN X4
Velocity monitor check pin (SP)
Torque monitor check pin (IM)
Check pin (G : GND)
Screws for earth (x2)
Main power 
input terminals 
(L1,L2,L3)
Control power 
input terminals 
(r, t)
Terminals 
for external 
regenerative 
resistor 
(P, B1, B2)
Terminals
for motor
connection
(U,V,W)

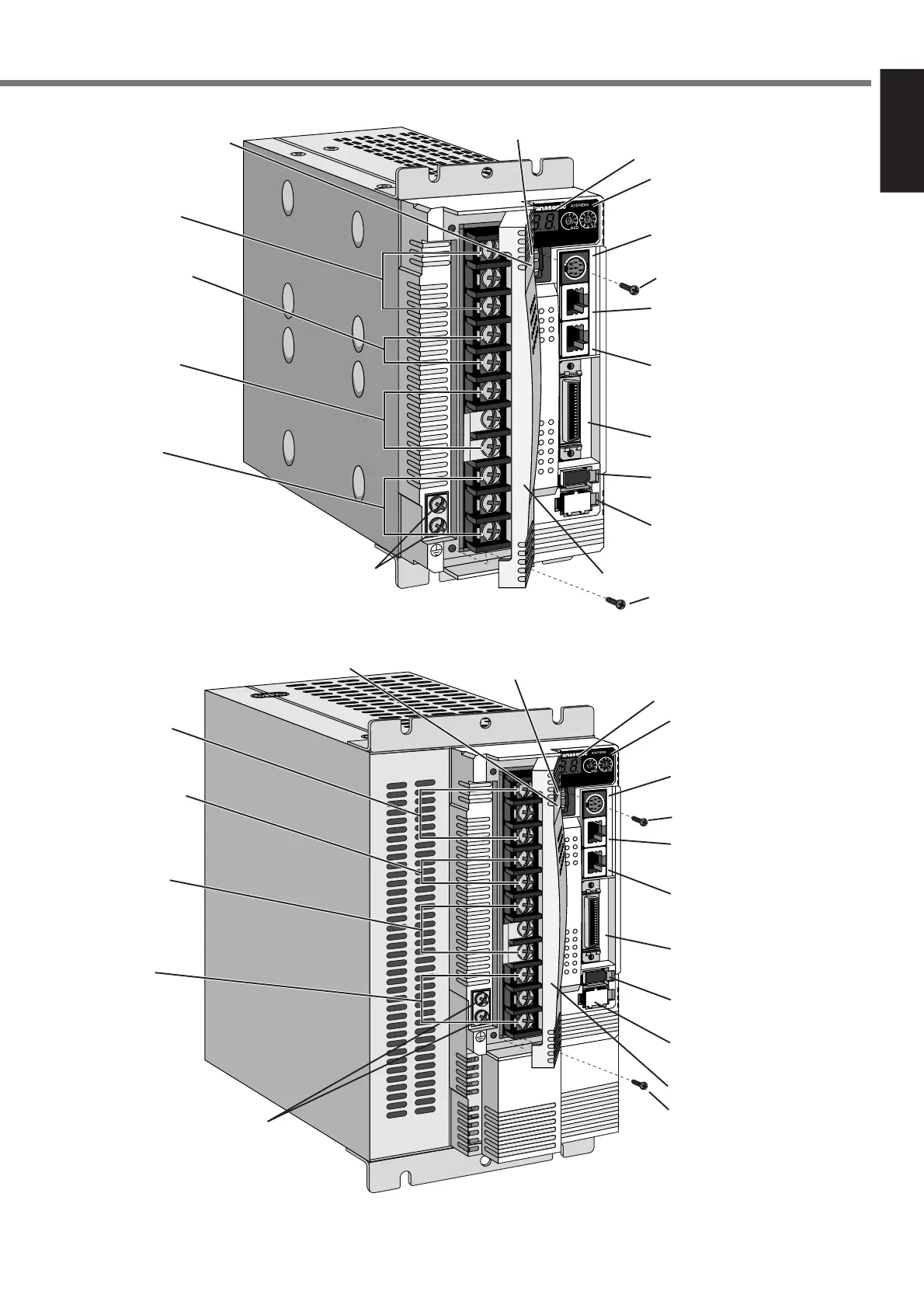

• E and F-frame
e.g.) : MEDDT7364P (3-phase, 200V, 2.0kW : E-frame)
<Note>
For details of each model, refer to "Dimensions " (P.192 to 194) of Supplement.
e.g.) : MFDDTB3A2P (3-phase, 200V, 5.0kW : F-frame)
X7
X5
X3B
X3A
X4
SP
IM
G
X6
Terminal cover
Screw for cover M3
Screw for cover M3
Display LED (2-digit)
ID address setup
rotary switch (MSD, LSD)
Connector, CN X5
for host connection
Connector, CN X6
for encoder connection
Connector, CN X7
for external scale connection
Connector, CN X4B
(For manufacturers' use only:

Not for individual use)
Connector, CN X4A
(For manufacturers' use only:

Not for individual use)
Communication
connector, CN X4
Velocity monitor check pin (SP)
Torque monitor check pin (IM)
Check pin (G : GND)
Screws for earth (x2)
Main power 
input terminals 
(L1,L2,L3)
Control power 
input terminals 
(r, t)
Terminals 
for external 
regenerative 
resistor 
(P, B1, B2)
Terminals
for motor
connection
(U,V,W)
