Panasonic MCDDT3520 - Parts Description

18
Driver
<Note>
X1 and X2 are attached in A to D-frame driver.
e.g.) : MADDT1207P (Single phase, 200V, 200W : A-frame)

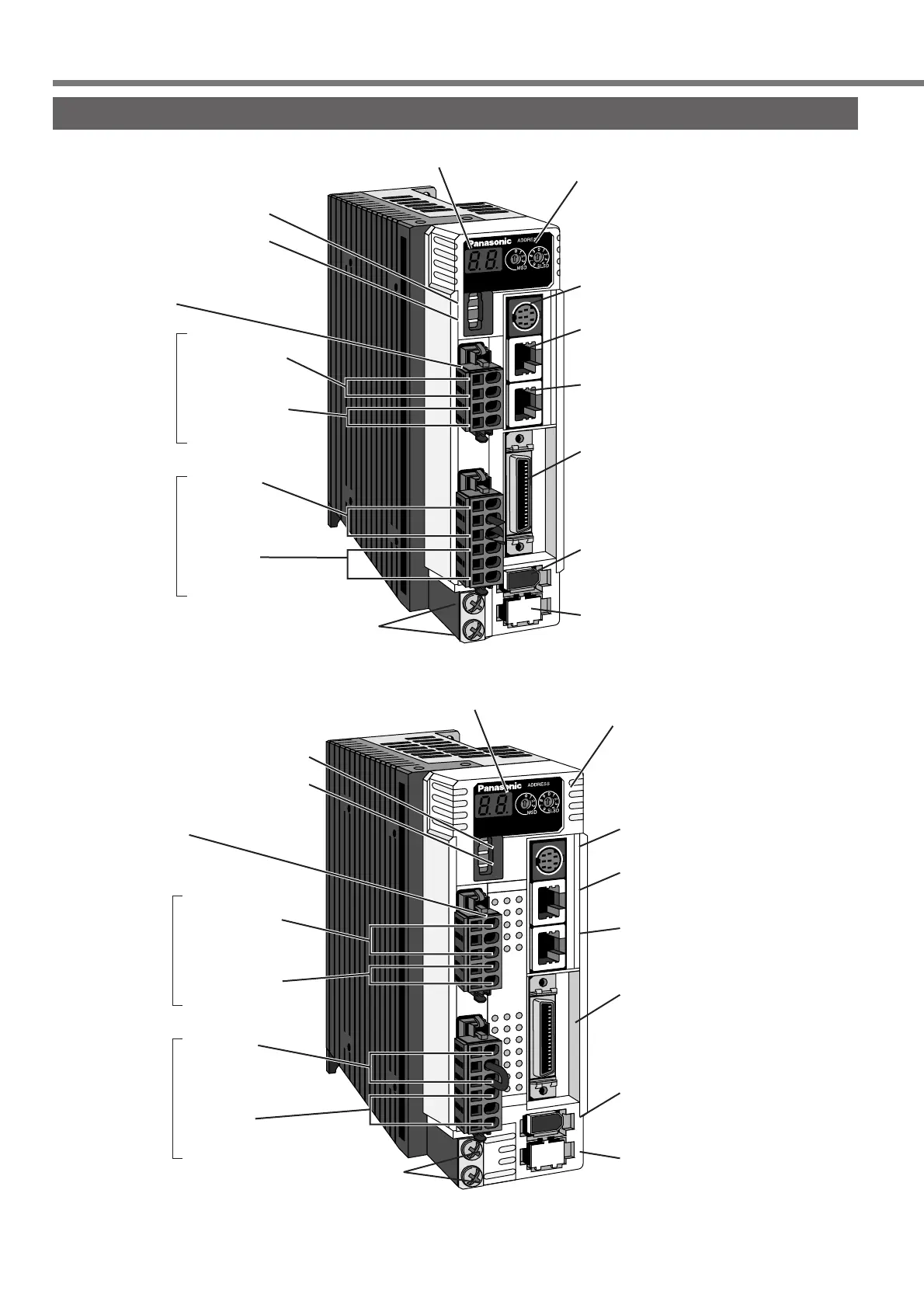

Parts Description
e.g.) : MCDDT3520P (Single/3-phase, 200V, 750W : C-frame)
• A and B-frame
• C and D-frame
X5
X3B
X3A
X4
X6
X7
SP
IM
G
Connector
Display LED (2-digit)
ID address setup
rotary switch (MSD, LSD)
Connector, CN X5
for host connection
Connector, CN X6
for encoder connection
Connector, CN X7
for external scale connection
Connector, CN X4B
(For manufacturers' use only:

Not for individual use)
Connector, CN X4A
(For manufacturers' use only:

Not for individual use)
Communication
connector, CN X4
Screws for earth (x2)
Velocity monitor check pin (SP)
Torque monitor check pin (IM)
Check pin (G : GND)
Main power
input terminals
(L1,L2)
Control power
input terminals
(L1C, L2C)
Connector, CN X1
for power input
connection
04JFAT-SAXGF
(JST)
Connector, CN X2
for motor
connection
06JFAT-SAXGF
(JST)
Terminals
for external
regenerative resistor
(RB1,RB2,RB3)
Terminals
for motor connection
(U,V,W)
X5
X3B
X3A
X4
X6
X7
SP
IM
G
Display LED (2-digit)
ID address setup
rotary switch (MSD, LSD)
Connector, CN X5
for host connection
Connector, CN X6
for encoder connection
Connector, CN X7
for external scale connection
Connector, CN X4B
(For manufacturers' use only:

Not for individual use)
Connector, CN X4A
(For manufacturers' use only:

Not for individual use)
Communication
connector, CN X4
Screws for earth (x2)
Velocity monitor check pin (SP)
Torque monitor check pin (IM)
Check pin (G : GND)
Connector
Main power
input terminals
(L1,L2)
Control power
input terminals
(L1C, L2C)
Connector, CN X1
for power input
connection
04JFAT-SAXGF
(JST)
Connector, CN X2
for motor
connection
06JFAT-SAXGF
(JST)
Terminals
for external
regenerative resistor
(RB1,RB2,RB3)
Terminals
for motor connection
(U,V,W)
