[Preparation]

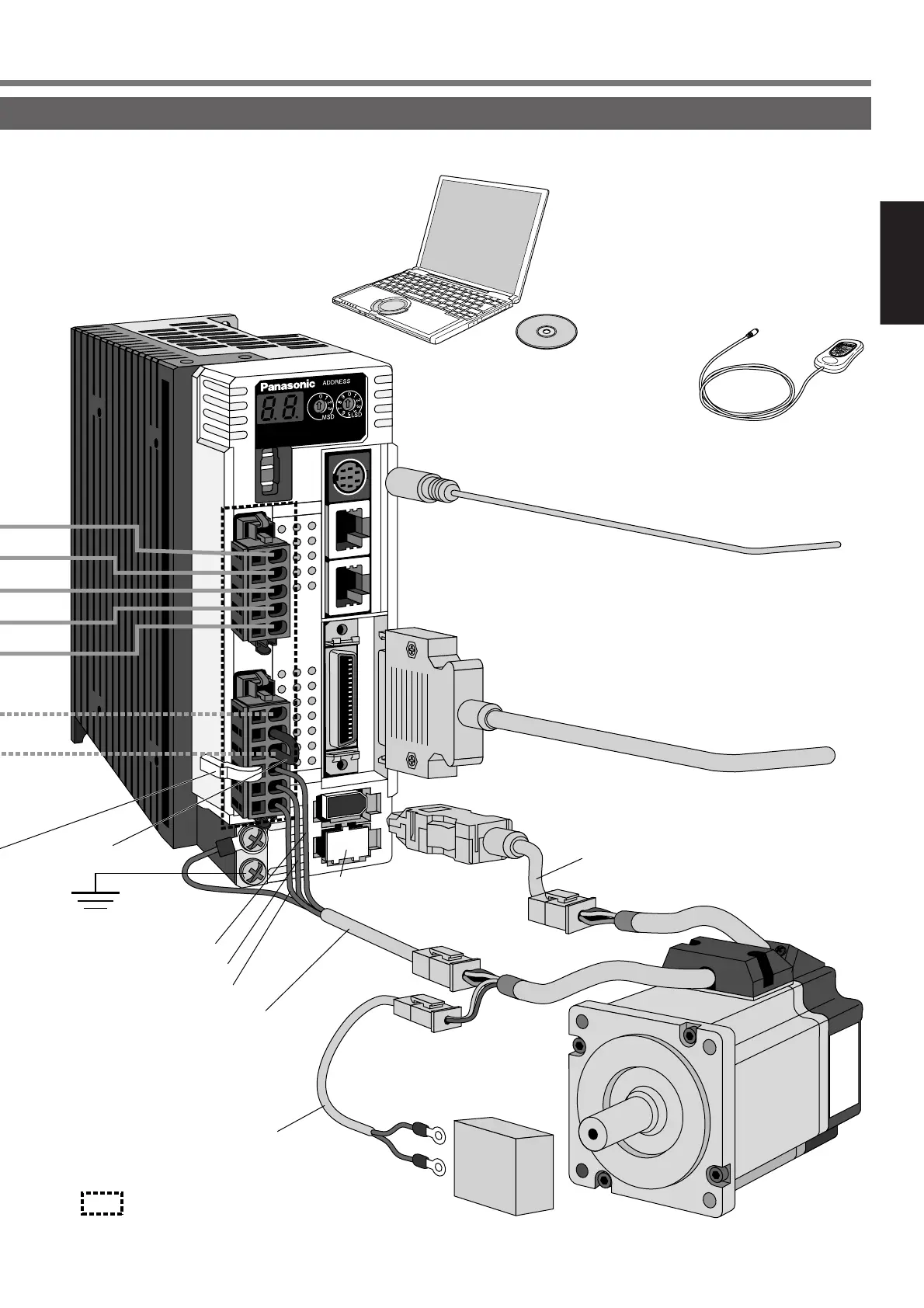

Preparation
X5
X3B
X3A
X4
X6
X7
SP
IM
G
PC (to be supplied by customer)
Setup support software
"PANATERM
®
"
DV0P4460
Console (option)
DV0P4420
• Wiring to Connector, CN X4 (option)
(Connection to PC or host controller)
• For manufacturers' use only, CN X3A and X3B
(Not for individual use)
• Wiring to Connector, CN X5 
(Connection to host controller)
• Wiring to Connector, CN X6 
(Connection to encoder)
Junction cable for encoder
Junction cable for motor
Junction cable 
for brake
DC Power supply for brake
DC24V
(to be supplied by customer)
• Wiring to Connector, CN X2
(Connection to motor driving 
phase and ground)
: High voltage
U-phase (red)
V-phase (white)
W-phase (black)
X1
X2
Ground (earth)
Short bar
• Wiring to 
Connector, CN X7 
(Connection to 
external scale)
