Panasonic Minas A4 Series - Check of the Motor Model

15
[Before Using the Products]
Before Using
the Products

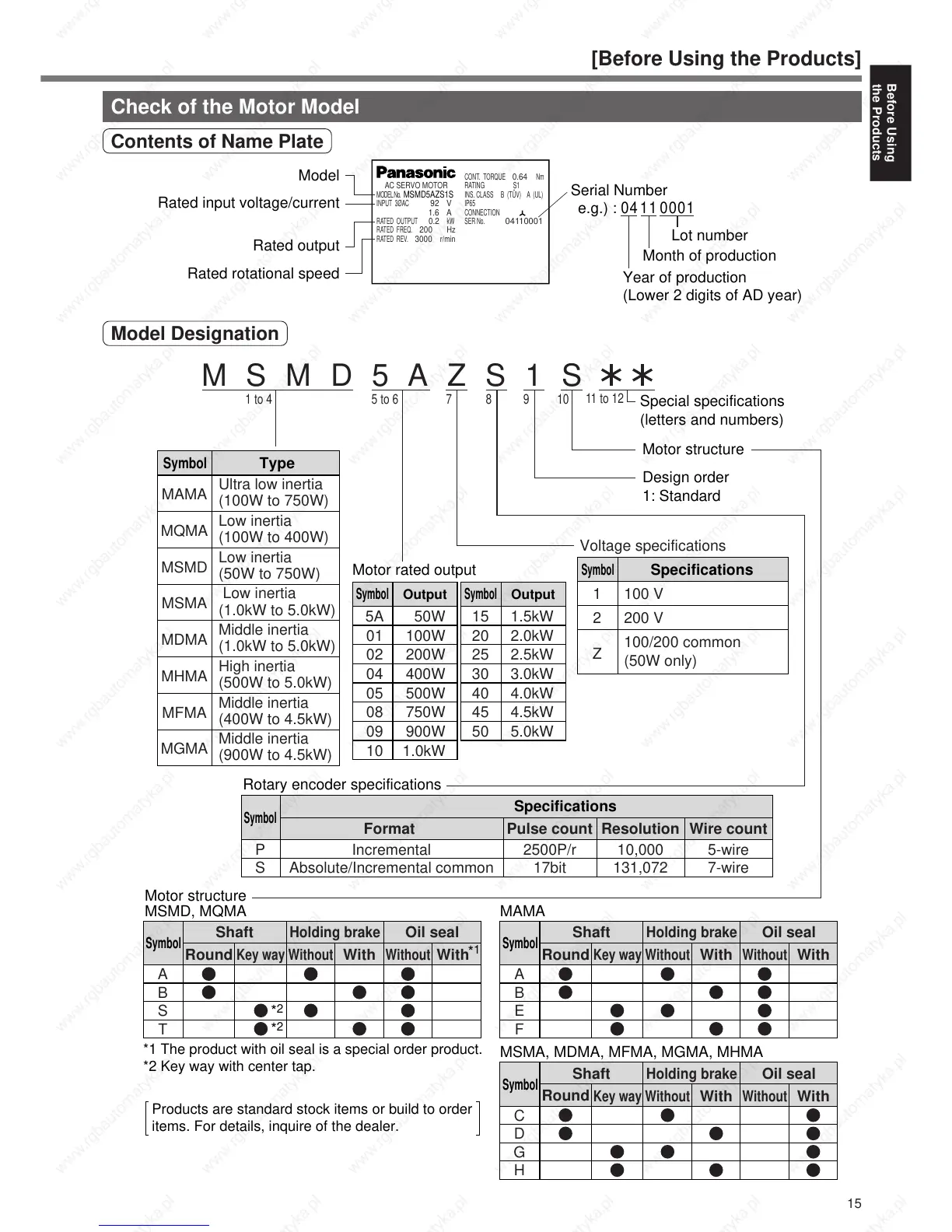

Model Designation
Check of the Motor Model
Contents of Name Plate
AC SERVO MOTOR RATING S1
MODEL No. MSMD5AZS1S INS. CLASS B (TÜV) A (UL)
CONT. TORQUE
0.64 Nm
A1.6 CONNECTION
RATED OUTPUT
RATED FREQ.
kW 0.2 SER No. 04110001
Hz 200
RATED REV. r/min 3000
INPUT 3ØAC 92 IP65 V
Model
Rated output
Rated input voltage/current
Rated rotational speed
Serial Number
e.g.) :
04110001
Lot number
Month of production
Year of production
(Lower 2 digits of AD year)
MSMD5AZS1S
1 to 4 5 to 6
11 to 12
7 8 9 10
Special specifications
(letters and numbers)
Motor structure
Design order
1: Standard
Rotary encoder specifications
Voltage specifications
MAMA

MQMA

MSMD

MSMA

MDMA

MHMA

MFMA

MGMA
Type
Symbol
Ultra low inertia
(100W to 750W)
Low inertia
(100W to 400W)
Low inertia
(50W to 750W)
Low inertia
(1.0kW to 5.0kW)
Middle inertia
(1.0kW to 5.0kW)
High inertia
(500W to 5.0kW)
Middle inertia
(400W to 4.5kW)
Middle inertia
(900W to 4.5kW)
P
S
Incremental
Absolute/Incremental common
Specifications
Symbol
Format
2500P/r
17bit
Pulse count
5A
01
02
04
05
08
09
10
Output
Motor rated output
Symbol
50W
100W
200W
400W
500W
750W
900W
1.0kW
15
20
25
30
40
45
50
Output Symbol
1.5kW
2.0kW
2.5kW
3.0kW
4.0kW
4.5kW
5.0kW
1
2
Z
Specifications
Symbol
100 V
200 V
100/200 common
(50W only)
10,000
131,072
Resolution
5-wire
7-wire
Wire count
Motor structure
MSMD, MQMA

MAMA
A
B
E
F
Shaft
Holding brake Oil seal
Without With
Round
Key way Without With
Symbol

MSMA, MDMA, MFMA, MGMA, MHMA
A
B
S
T
Shaft
Holding brake Oil seal
Without With
Round
Key way Without With
Symbol
*1 The product with oil seal is a special order product.
*2 Key way with center tap.
C
D
G
H
Shaft
Holding brake Oil seal
Without With
Round
Key way Without With
Symbol
*
1
*
2
*
2
Products are standard stock items or build to order 
items. For details, inquire of the dealer.
