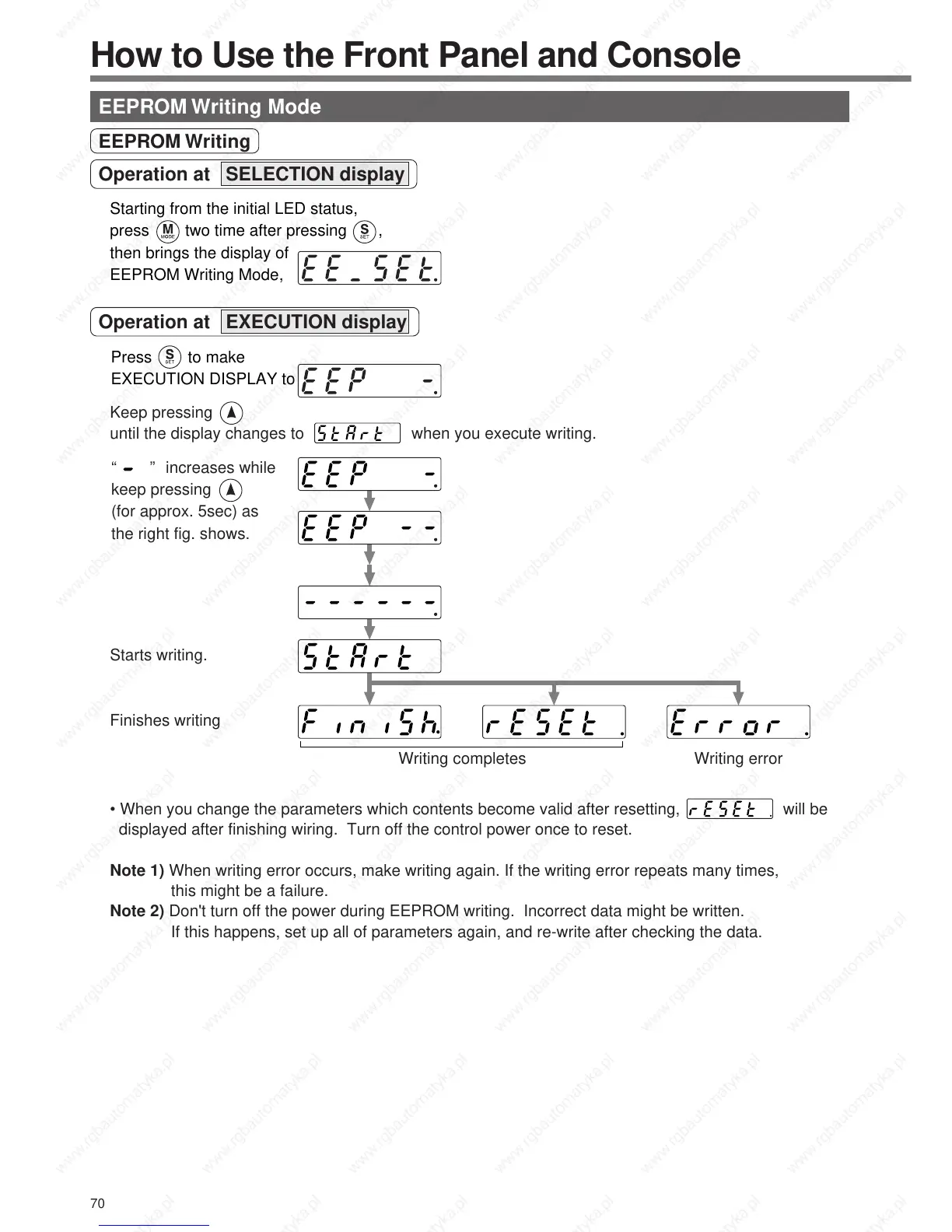

How to Use the Front Panel and Console
EEPROM Writing Mode
EEPROM Writing
• When you change the parameters which contents become valid after resetting, will be
displayed after finishing wiring. Turn off the control power once to reset.
Note 1) When writing error occurs, make writing again. If the writing error repeats many times,
this might be a failure.
Note 2) Don't turn off the power during EEPROM writing. Incorrect data might be written.
If this happens, set up all of parameters again, and re-write after checking the data.
Starts writing.
Finishes writing
Writing completes Writing error
Starting from the initial LED status,
press two time after pressing ,
then brings the display of
EEPROM Writing Mode,
Keep pressing
until the display changes to when you execute writing.
“ ” increases while
keep pressing
(for approx. 5sec) as
the right fig. shows.
Press to make
EXECUTION DISPLAY to
Operation at SELECTION display
Operation at EXECUTION display
