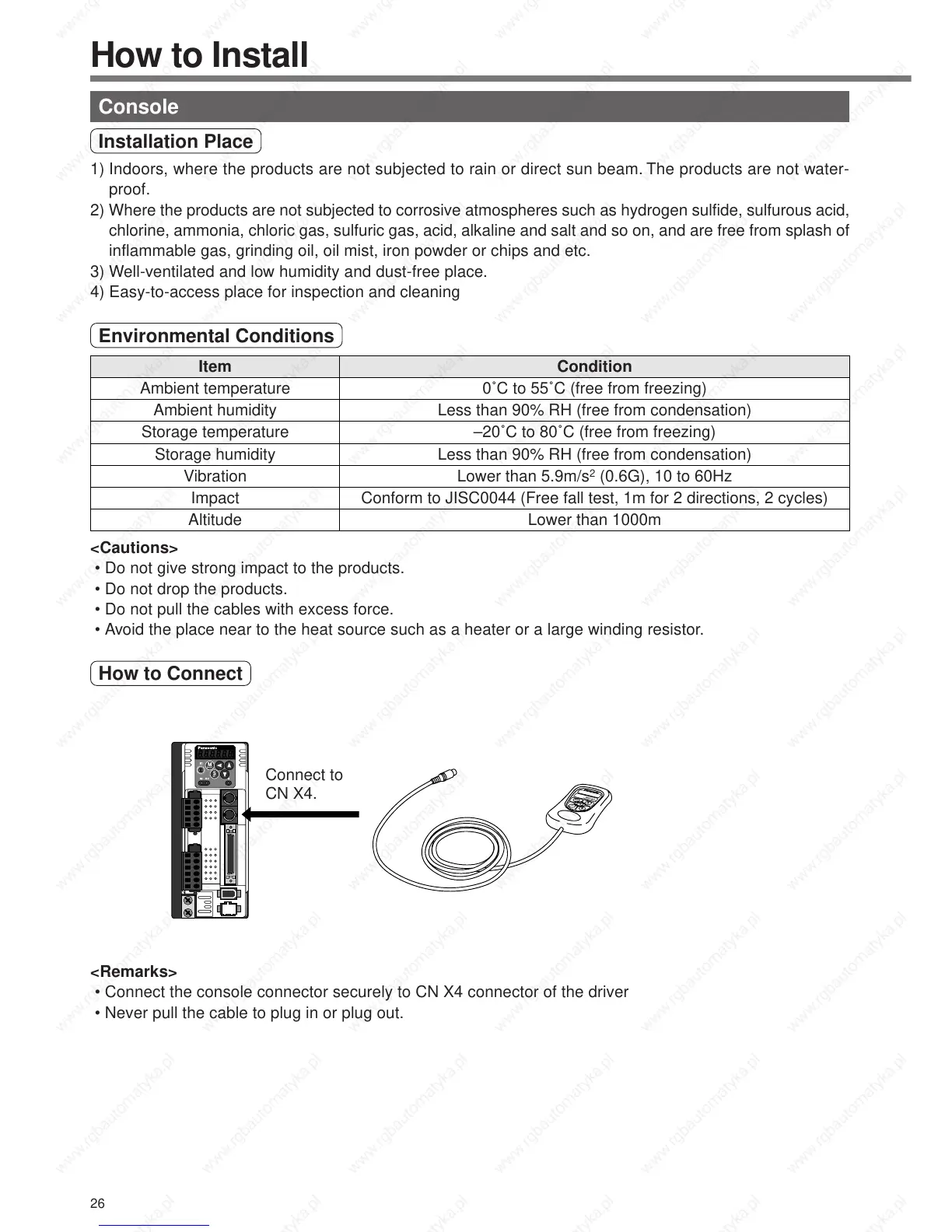

Console
Installation Place
1) Indoors, where the products are not subjected to rain or direct sun beam. The products are not water-
proof.
2) Where the products are not subjected to corrosive atmospheres such as hydrogen sulfide, sulfurous acid,
chlorine, ammonia, chloric gas, sulfuric gas, acid, alkaline and salt and so on, and are free from splash of
inflammable gas, grinding oil, oil mist, iron powder or chips and etc.
3) Well-ventilated and low humidity and dust-free place.
4) Easy-to-access place for inspection and cleaning
Environmental Conditions
<Cautions>
• Do not give strong impact to the products.
• Do not drop the products.
• Do not pull the cables with excess force.
• Avoid the place near to the heat source such as a heater or a large winding resistor.
How to Connect
<Remarks>
• Connect the console connector securely to CN X4 connector of the driver
• Never pull the cable to plug in or plug out.
MODE
SHIFT
SET
S
M
Connect to
CN X4.
How to Install
Item
Ambient temperature
Ambient humidity
Storage temperature
Storage humidity
Vibration
Impact
Altitude
Condition
0˚C to 55˚C (free from freezing)
Less than 90% RH (free from condensation)
–20˚C to 80˚C (free from freezing)
Less than 90% RH (free from condensation)
Lower than 5.9m/s
2
(0.6G), 10 to 60Hz
Conform to JISC0044 (Free fall test, 1m for 2 directions, 2 cycles)
Lower than 1000m
