[Before Using the Products]
Before Using
the Products
Display/Touch panel

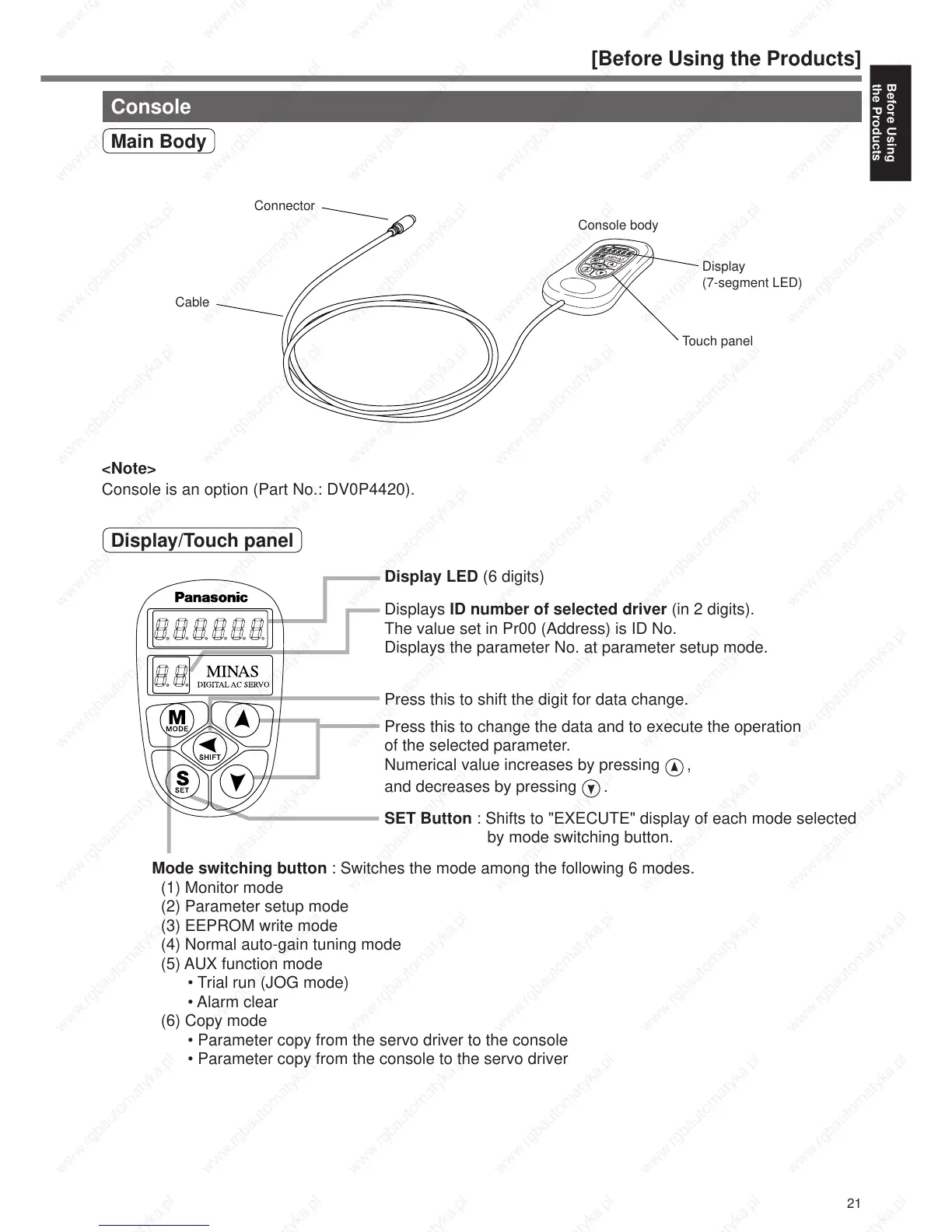

Console
Main Body
<Note>
Console is an option (Part No.: DV0P4420).
Connector
Console body
Cable
Display 
(7-segment LED)
Touch panel
Display LED (6 digits)
Displays ID number of selected driver (in 2 digits). 
The value set in Pr00 (Address) is ID No.
Displays the parameter No. at parameter setup mode.
SET Button : Shifts to "EXECUTE" display of each mode selected
by mode switching button. 

Mode switching button : Switches the mode among the following 6 modes. 
(1) Monitor mode 
(2) Parameter setup mode 
(3) EEPROM write mode 
(4) Normal auto-gain tuning mode 
(5) AUX function mode 
• Trial run (JOG mode) 
• Alarm clear 
(6) Copy mode 
• Parameter copy from the servo driver to the console 
• Parameter copy from the console to the servo driver
Press this to shift the digit for data change.
Press this to change the data and to execute the operation 
of the selected parameter. 
Numerical value increases by pressing ,
and decreases by pressing .
