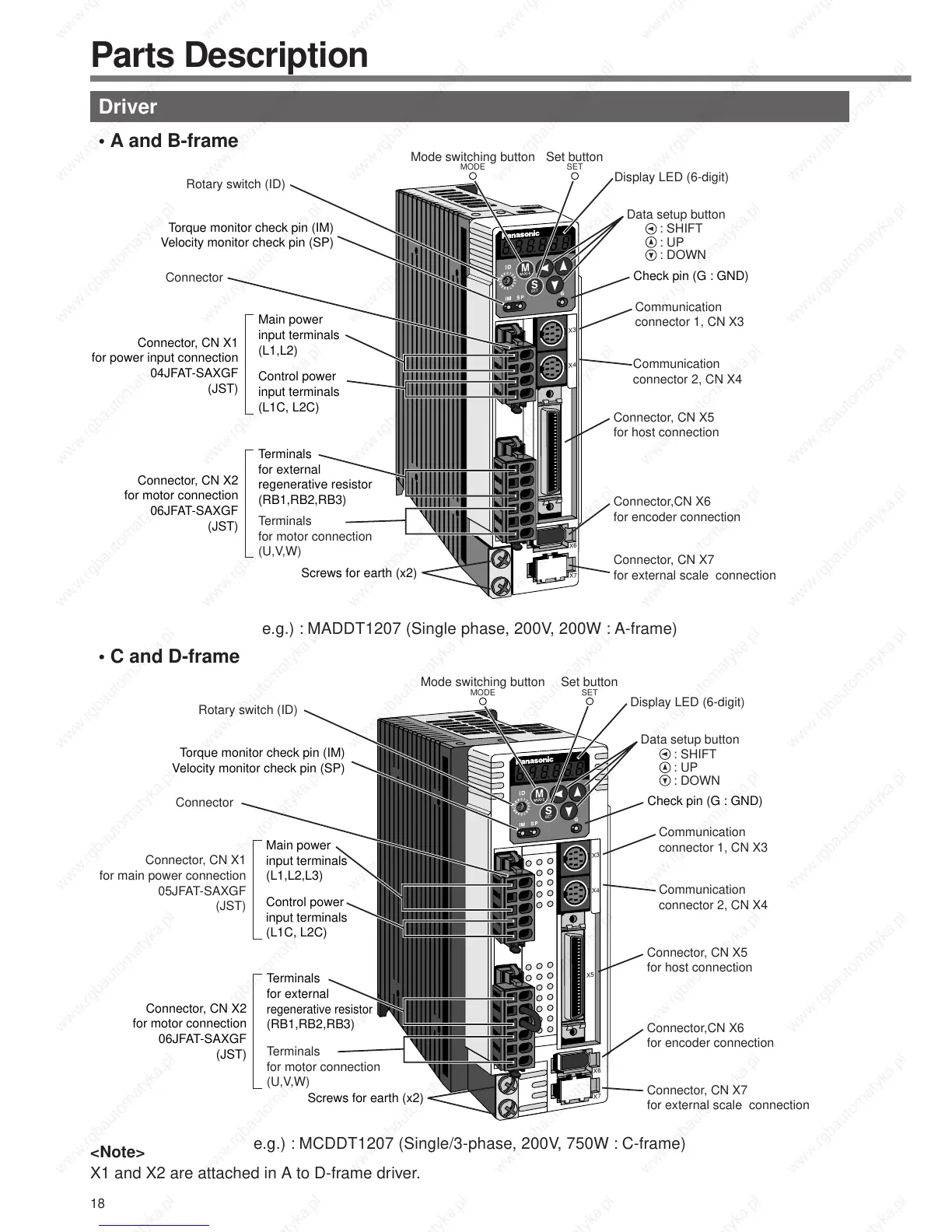

Panasonic Minas A4 Series - Parts Description

18
Driver
<Note>
X1 and X2 are attached in A to D-frame driver.
e.g.) : MADDT1207 (Single phase, 200V, 200W : A-frame)
Parts Description
e.g.) : MCDDT1207 (Single/3-phase, 200V, 750W : C-frame)
• A and B-frame
• C and D-frame
X3
X4
X5
X6
X7
Display LED (6-digit)
Mode switching button
MODE
Set button
SET
Check pin (G : GND)
Data setup button
: SHIFT
: UP
: DOWN
Connector, CN X5
for host connection
Connector,CN X6
for encoder connection
Connector, CN X7
for external scale connection
Communication
connector 2, CN X4
Communication
connector 1, CN X3
Screws for earth (x2)
Rotary switch (ID)
Torque monitor check pin (IM)
Velocity monitor check pin (SP)
Connector
Main power 
input terminals 
(L1,L2,L3)
Control power
input terminals
(L1C, L2C)
Connector, CN X1
for main power connection
05JFAT-SAXGF
(JST)
Connector, CN X2
for motor connection
06JFAT-SAXGF
(JST)
Terminals
for external
regenerative resistor
(RB1,RB2,RB3)
Terminals
for motor connection
(U,V,W)
X6
X3
X4
X7
Display LED (6-digit)
Mode switching button
MODE
Set button
SET
Check pin (G : GND)
Data setup button
: SHIFT
: UP
: DOWN
Connector, CN X5
for host connection
Connector,CN X6
for encoder connection
Connector, CN X7
for external scale connection
Communication
connector 2, CN X4
Communication
connector 1, CN X3
Screws for earth (x2)
Rotary switch (ID)
Torque monitor check pin (IM)
Velocity monitor check pin (SP)
Connector
Main power
input terminals
(L1,L2)
Control power
input terminals
(L1C, L2C)
Connector, CN X1
for power input connection
04JFAT-SAXGF
(JST)
Connector, CN X2
for motor connection
06JFAT-SAXGF
(JST)
Terminals
for external
regenerative resistor
(RB1,RB2,RB3)
Terminals
for motor connection
(U,V,W)
